NETGEAR ReadyNAS 104

Rear Panel

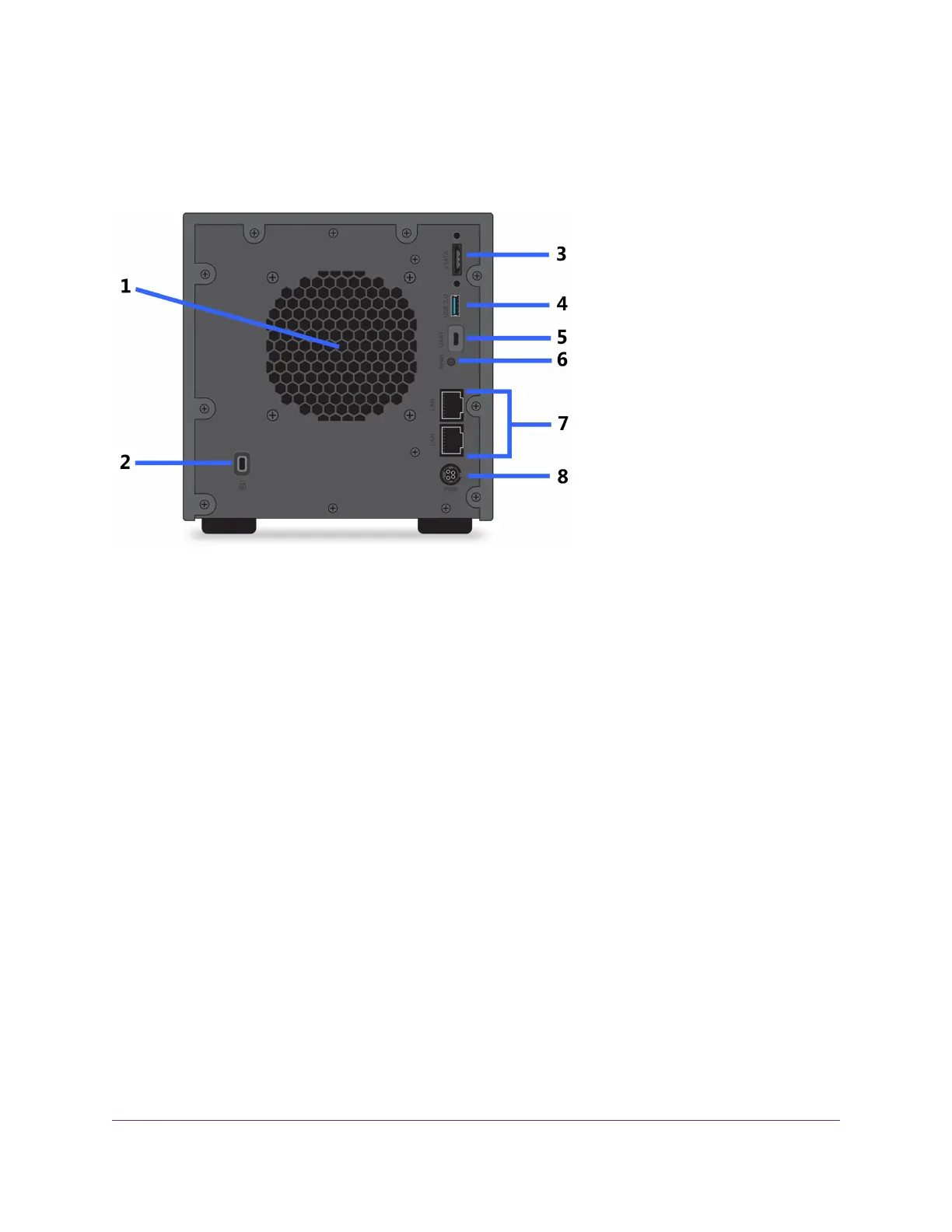

The following figure shows the rear panel of the ReadyNAS 424.
Figure 35. Rear panel ReadyNAS 424
1. Exhaust fan
2. Kensington lock
3. eSATA port
4. USB 3.0 port
5. Micro USB console connector (marked as UART)
6. Reset button
7. 1 GbE LAN ports with LED status indicators
8. Power cable socket
NETGEAR ReadyNAS 424
94
ReadyNAS OS 6 Desktop Storage Systems
