The Router’s Front Panel

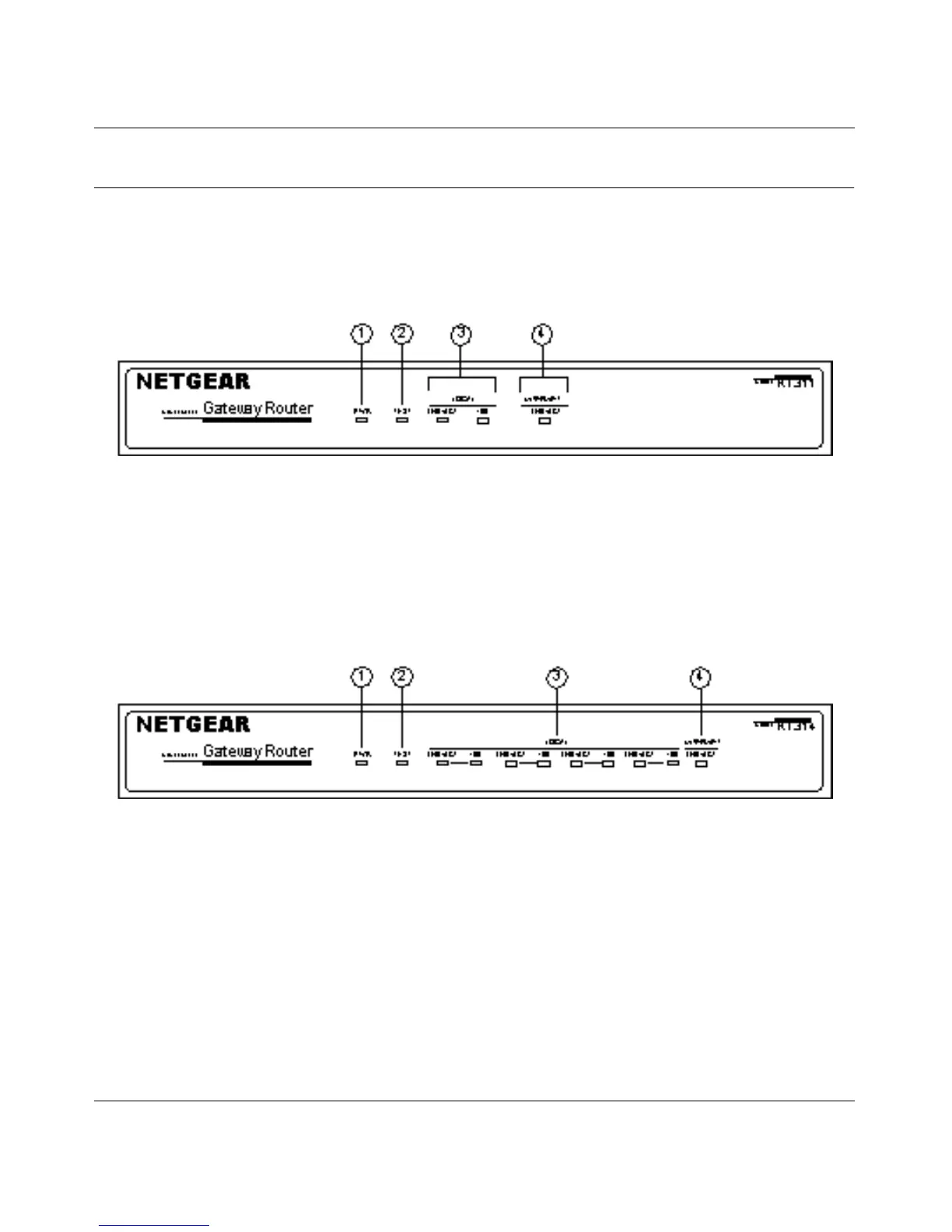

The front panels of the Model RT311 router (Figure 2-1) and Model RT314 router (Figure 2-2)
contain status LEDs.
Key:
1 = PWR (Power) LED
2 = TEST LED
3 = LOCAL LAN LNK/ACT (Link/Activity) and 100M LEDs
4 = INTERNET LNK/ACT (Link/Activity) LED
Figure 2-1. RT311 Front Panel
Key:
1 = PWR (Power) LED
2 = TEST LED
3 = LAN LNK/ACT (Link/Activity) and 100M LEDs
4 = INTERNET LNK/ACT (Link/Activity) LED
Figure 2-2. RT314 Front Panel
