The Router’s Rear Panel

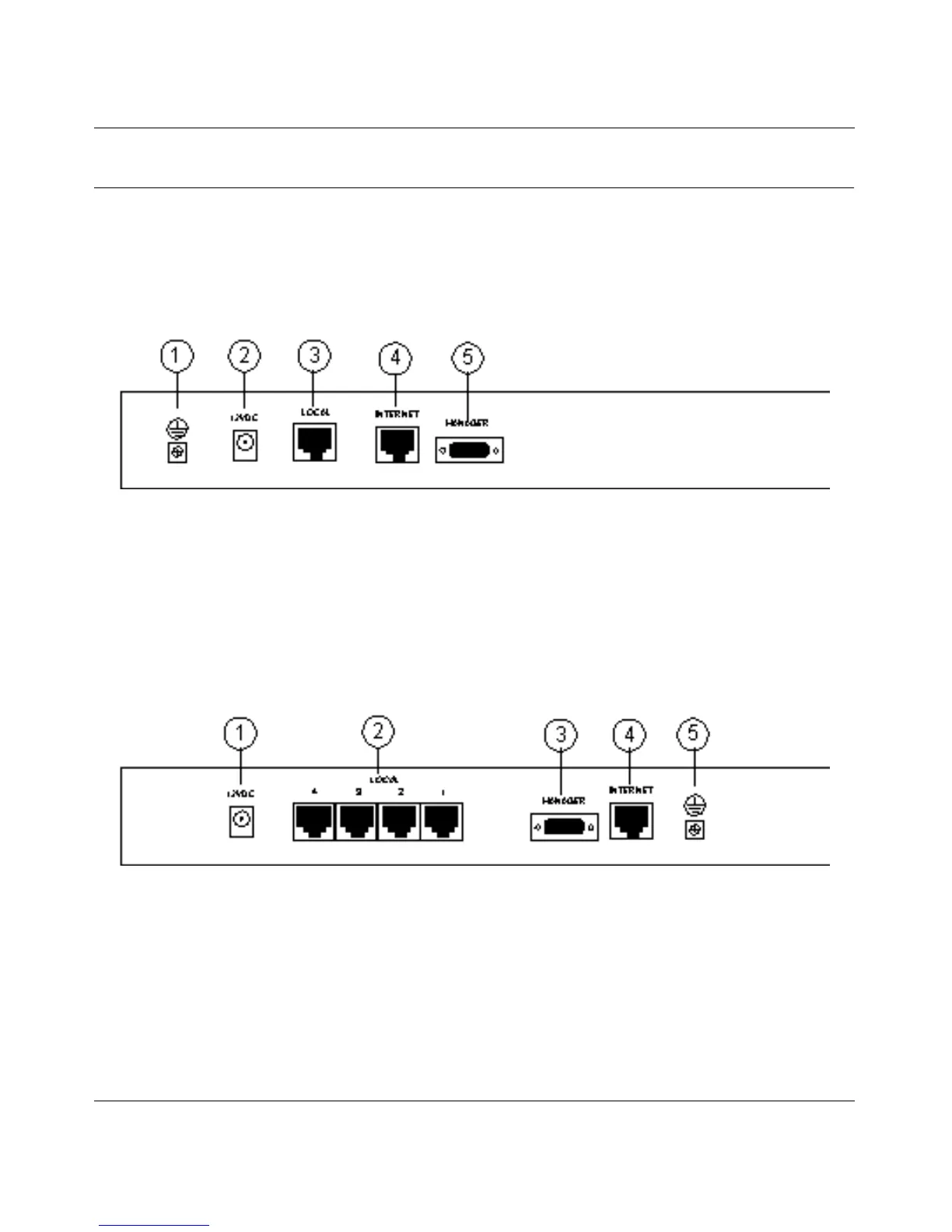

The rear panels of the Model RT311 router and Model RT314 router are shown in Figure 2-3 and
Figure 2-4. Refer to these diagrams to identify all the ports on the router when you attempt to make
any connections.
Key:
1 = Ground
2 = AC adapter outlet for connecting the AC adapter to the router
3 = Local Ethernet port for connecting the router to the local LAN
4 = Internet Ethernet port for connecting the router to a cable or DSL modem
5 = RS-232 Manager port for connecting the router to the serial port of a PC
Figure 2-3. RT311 Rear Panel
Key:
1 = AC adapter outlet for connecting the AC adapter to the router
2 = Local Ethernet ports for connecting the router to the local PCs
3 = RS-232 Manager port for connecting the router to the serial port of a PC
4 = Internet Ethernet port for connecting the router to a cable or DSL modem
5 = Ground
Figure 2-4. RT314 Rear Panel
