Getting Started
8
Wireless N150 Access Point WN604

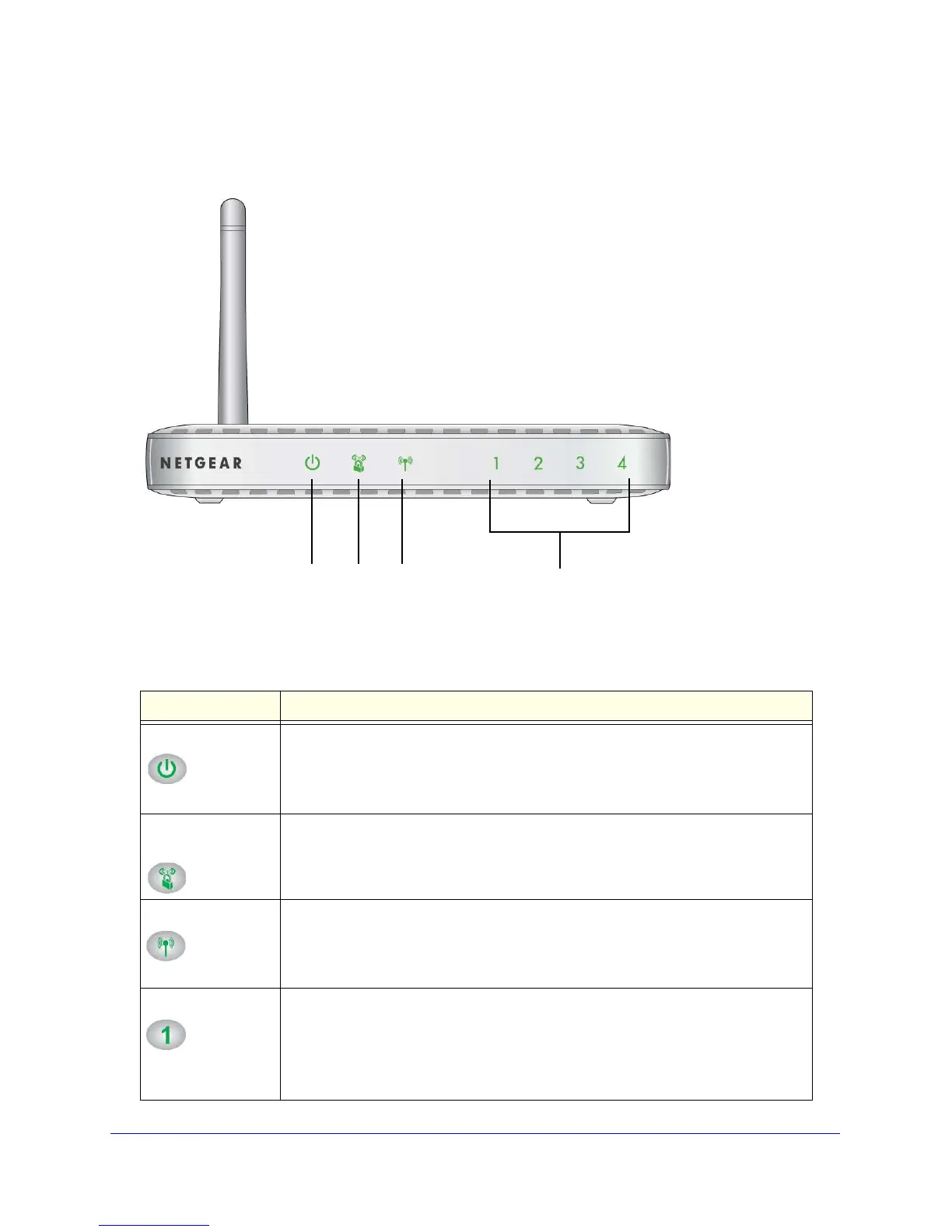

Front Panel
The access point front hardware functions are described below.
Power Wi-FiWPS LAN ports 1–4
Figure 1. WN604 front panel
The following table explains the LED indicators on the front panel.
Table 1. Front panel LEDs
LED Description
Power
• Solid green. Power is on and the access point is ready.
• Blinking green. A firmware update is in process.
• Solid amber. T
he access point is performing a power-on self-test.
• Off. No
power.
Wi-Fii Protected
Setup (WP
S)
• Blinking green. WPS activities are in process.
• Off. No
WPS activity, or there is a WPS error.
Wi-Fi
• Solid blue. The wireless radio is up and running without wireless data
transmission.
• Bl
inking blue. Wireless data is being sent or received.
• Off.
The wireless interface is turned off.
LAN ports 1–4
• Solid green. 100 Mbps link detected, no data transmission on the port.
• Blin
king green. 100 Mbps link detected, data transmission on the port.
• Solid amber.
10 Mbps link detected, no data transmission on the port.
• Blinkin
g amber. 10 Mbps link detected, data transmission on the port.
• Off. No link is detected
