Chapter 1. Getting Started | 5
Virgin Media Wireless USB Adapter WNDA3200
Joining Wireless Networks
If your gateway or router supports WPS (Wi-Fi Protected Setup) technology, also called Push
'N' Connect, you can use a WPS button or PIN to join the network. WPS-compatible
NETGEAR gateways and routers use the
symbol. This symbol could be on a button on
the gateway, or displayed on a WPS screen when you have logged in to the gateway. You
can also opt out of the wizard to join a network that does not support WPS.

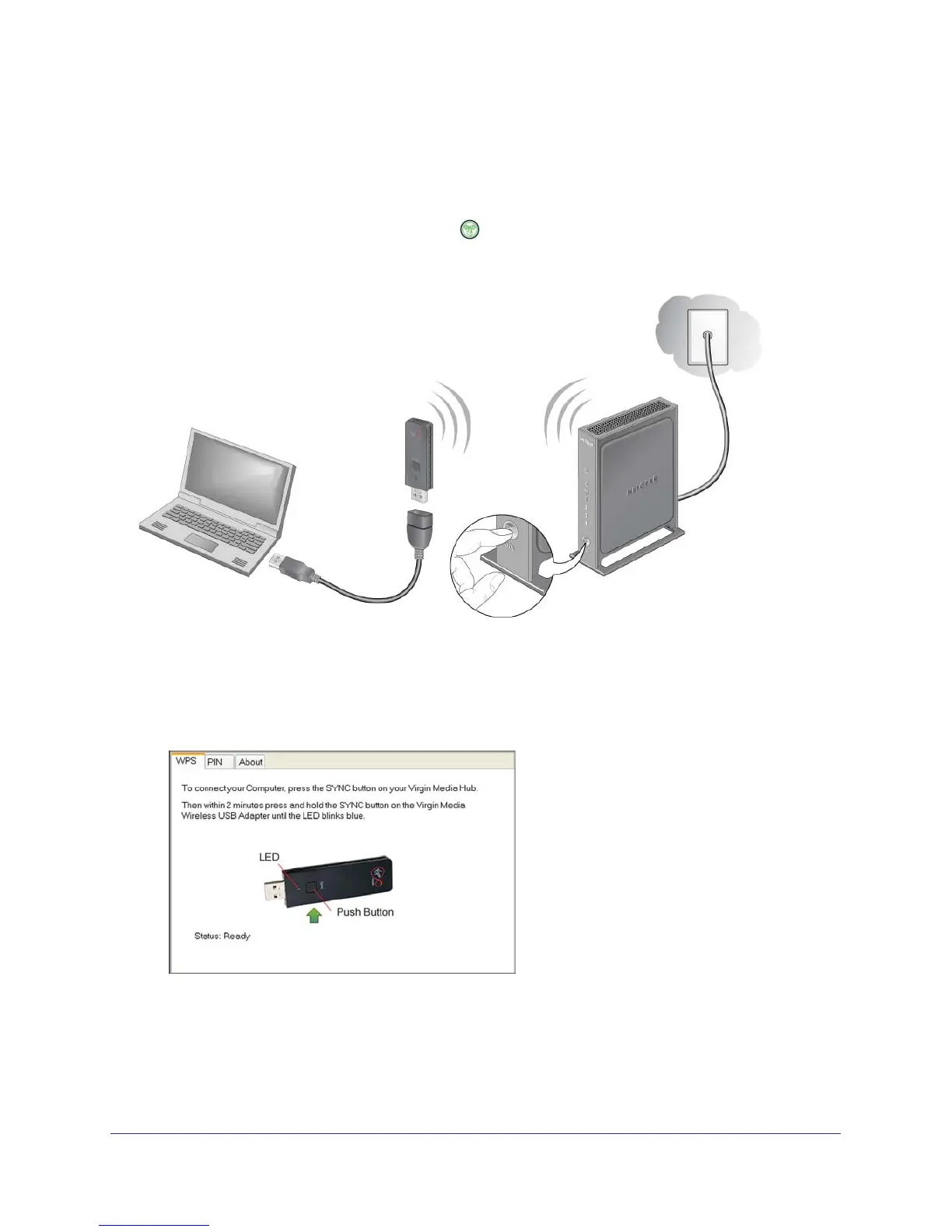

Figure 1. Using the WPS button to join a wireless network
To join a network with a WPS button:
1. Follow the instructions on the WPS tab to push the SYNC button on your gateway and
on your Wireless-N USB Adapter.
2. Join a wireless network.
• A profile is written on the Windows system.
• The WPS and PIN tabs are removed from the display.
• If you want to return the WPS and PIN tabs, select the Enable WPS Pairing with my
router check box on the About tab and click Apply.
