Back Panel
The router back panel, shown in Figure 4, contains port connections.
Viewed from top to bottom, the rear panel contains the following elements:
1. Wireless On/Off button.
2. Restore factory settings button. Press for approximately 5 seconds to reset the router to the
factory default settings.
3. Four Local Area Network (LAN) 10/100 Mbps Ethernet ports for connecting the router to
your local computers.
4. Internet/Wide Area Network (WAN) Ethernet port for connecting the router to a cable or DSL
modem.
5. AC power adapter outlet for connecting the power adapter
6. Power on/off push-button.

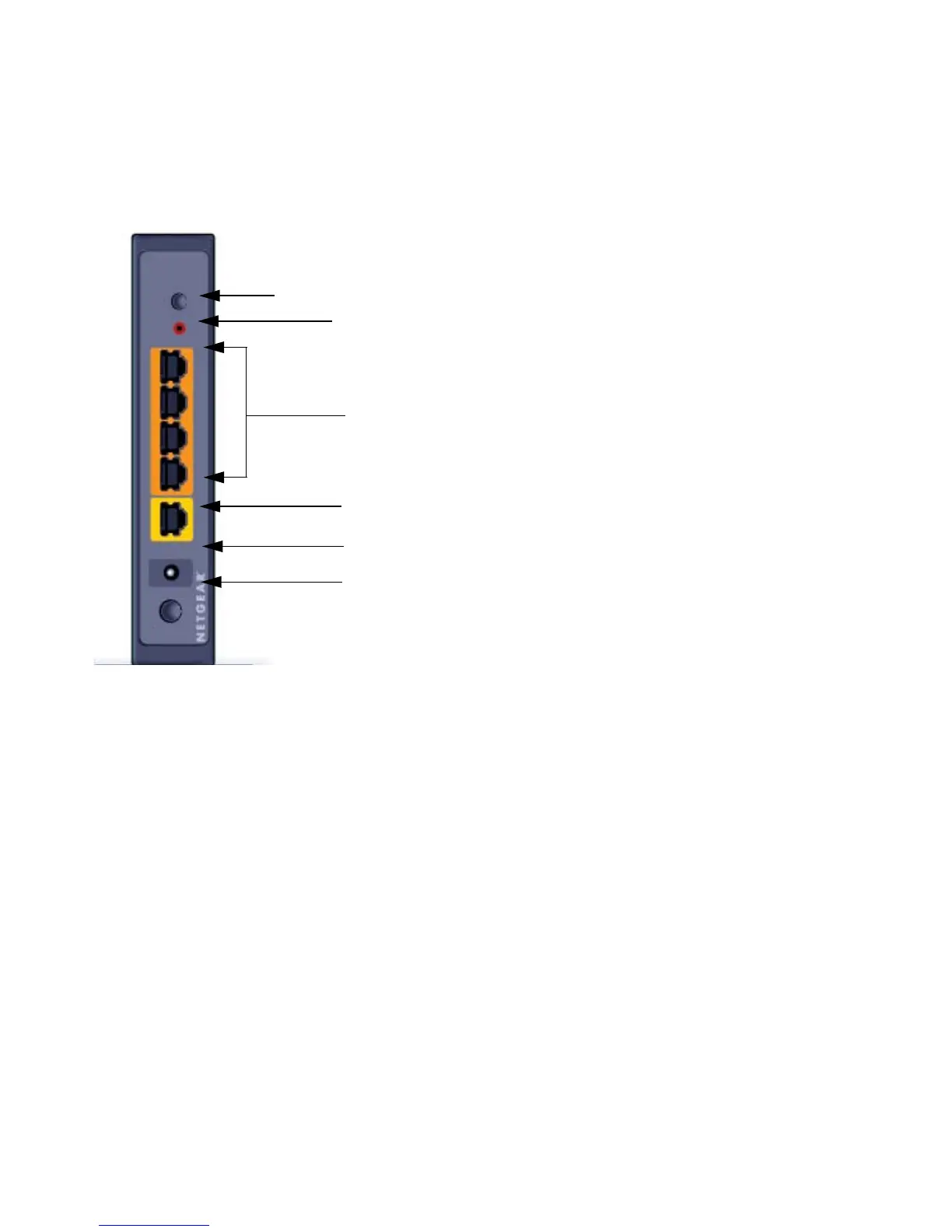

Figure 4
1
5
4
6
2
3
