Netis WF-2113 User Manual

WF-2113 User Manual
22



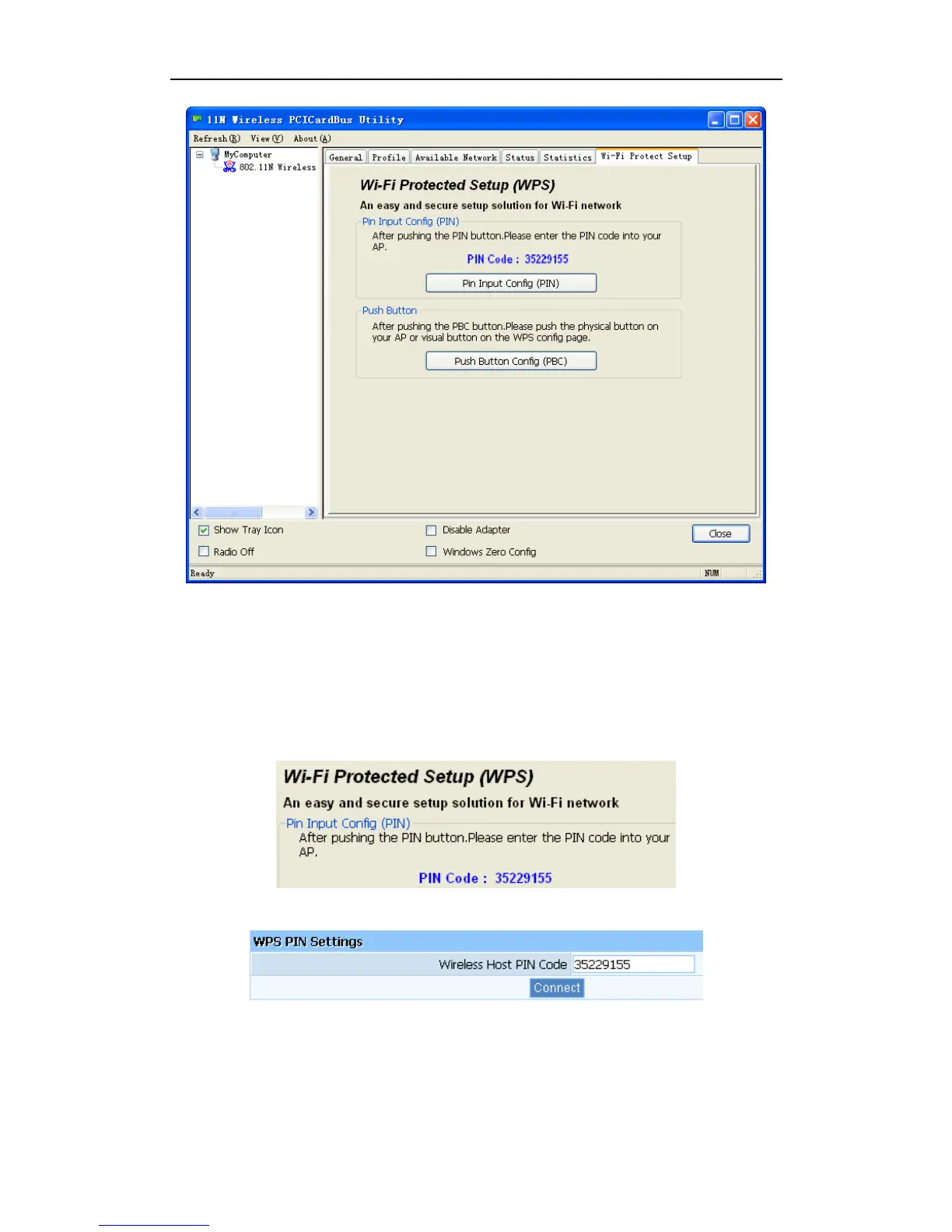

Figure 3-16
WPS can connect the wireless adapter and the router in a safe way. If you have a router which
has WPS button, you may set up a safe network via the following methods
Method 1:
¾ Input the PIN code of the adapter’s WPS page into the router’s WPS configure page, then
click ‘connect’

Figure 3-17

Figure 3-18
¾ Click the ‘PIN Input Config (PIN)’ in the Wi-Fi protect setup of the adapter

Netis WF-2113 Specifications

General

Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Internal	Yes
Certification	FCC, CE
Component for	PC
Product color	Green, Silver
LED indicators	Activity
Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Gain	5 dBi
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity	1

Weight and Dimensions

Depth	122 mm
Width	127 mm
Height	20 mm
Weight	32.5 g
