Netis WF2411 User Manual

WF2411
33

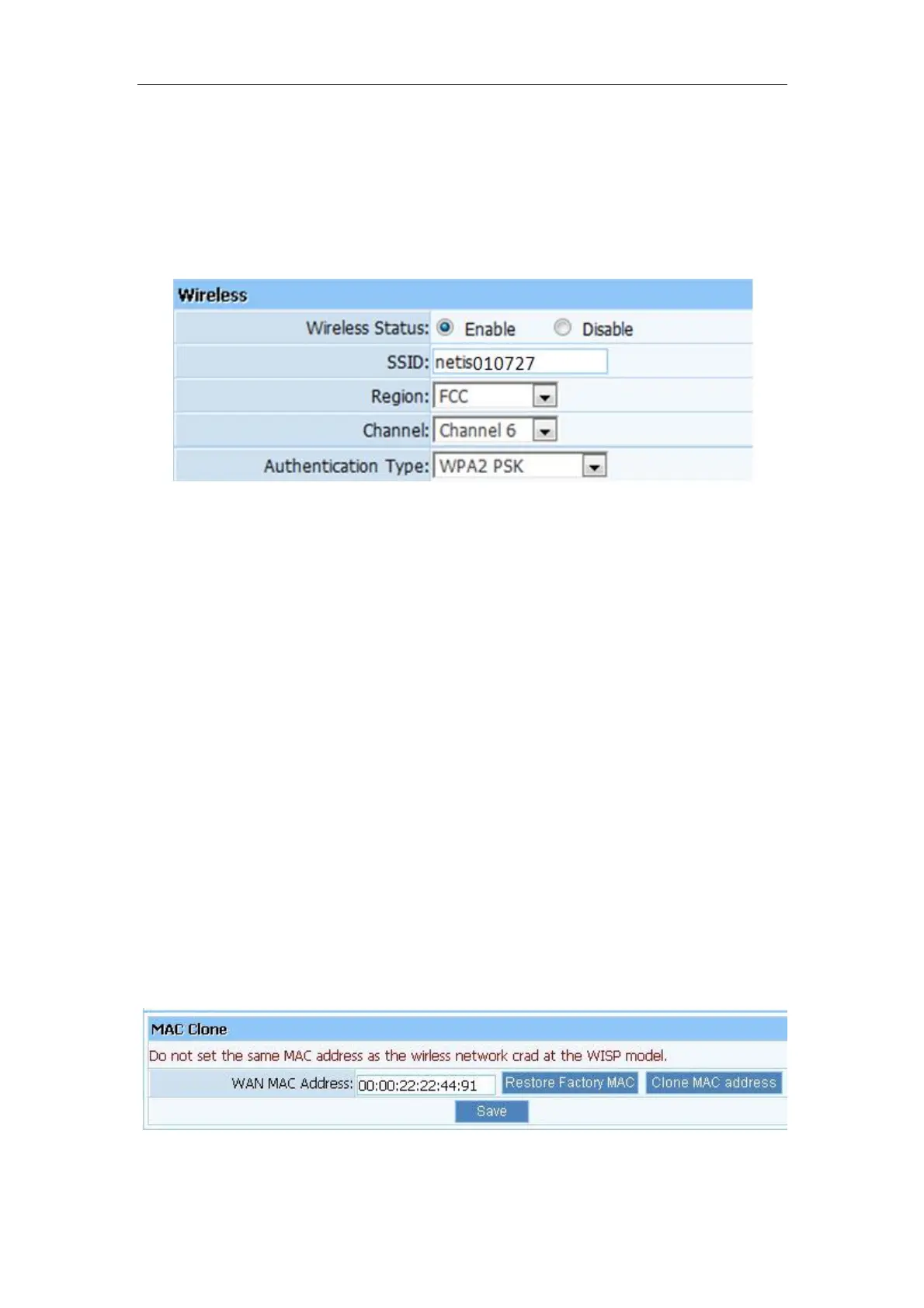

4.2.4. Wireless Configuration
You can choose “Enable” or “Disable” to enable or disable the wireless function. The default
setting is “enable”. If you chose the “Disable” status, the router will become a wired broadband
router without wireless function, so be careful when you choose this status.
Figure 4-10
 SSID: SSID (Service Set Identifier) is your wireless network's name shared among all
points in a wireless network. The SSID must be identical for all devices in the wireless
network. It is case-sensitive and must not exceed 32 characters. Make sure all points in the
wireless network have the same SSID. For added security, you should change the default
SSID to a unique name.
 Region:Choose a correct region which fit your use environment.
 Channel: Wireless router communicates to wireless cards in a particular channel, which
can reduce interference between different channels.
 Authentication Type: Different authentication types use different encryption types, which
can encrypt wireless data to protect your wireless communication.
4.2.5. MAC Clone
The WAN port of router has a unique MAC address assigned by manufacturer; it called as
“Default MAC”. The “Clone MAC” is used for some special situations; For example, ISP only
allows certain MAC address to access the Internet, thus you can modify your WAN port‟s MAC
address in accord with the requirement of ISP, avoiding ISP‟s detection.
Figure 4-11

Netis WF2411 Specifications

General

VPN support	PPTP, L2TP, IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Input current	0.5 A
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4385 GHz
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 21, 24, 36, 48, 54, 65, 150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Antennas quantity	1
Antenna gain level (max)	5 dBi
Product color	Black, White
LED indicators	LAN, Power, WAN
Certification	FCC, CE, KC
Output voltage	9 V
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	99 mm
Width	133 mm
Height	27 mm
Weight	149 g
