WF2411
49

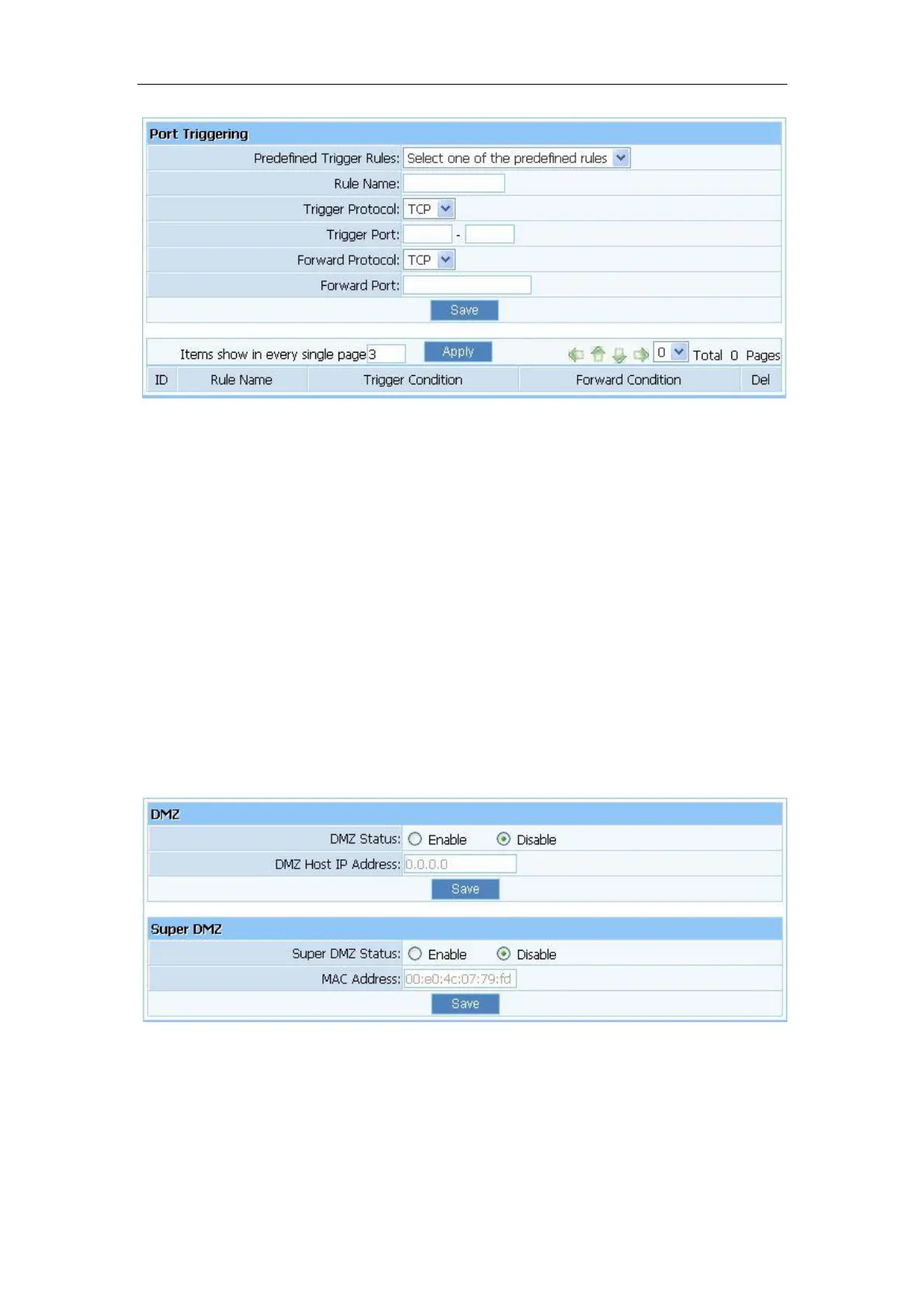

Figure 4-38
Predefined Trigger Rules: select one of the Predefined Rules.
Rule Name: describe one Predefined Trigger that you will configure.
Trigger Protocol: you can select TCP/UDP.
Trigger Port: you can select a part of ports.
Forward Protocol: you can select TCP/UDP.
Forward Port: you can select a part of ports.
4.7.3. DMZ
DMZ opens all the ports of one computer, exposing the computer to the Internet. So it should
only be used for some special-purpose, especial for Internet online games. Using this function
you can selectDMZ” item and input IP address of DMZ host, then click “Save”. For the
purpose of security, we suggested that using “Virtual servicer” instead of “DMZ”.
Figure 4-39
4.7.4. UPnP
The UPnP function supports load Application‟s port forward record automatically. Select
“Enable” to enable this function.

Other manuals for Netis WF2411

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Netis WF2411 and is the answer not in the manual?

Netis WF2411 Specifications

General IconGeneral
VPN supportPPTP, L2TP, IPSEC
Ethernet LANYes
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)150 Mbit/s
Input current0.5 A
Rack mountingNo
Frequency band2.4 GHz
Frequency range2.4 - 2.4385 GHz
WLAN data transfer rates supported1, 2, 5.5, 6, 9, 11, 12, 18, 21, 24, 36, 48, 54, 65, 150 Mbit/s
Ethernet LAN (RJ-45) ports4
DHCP client-
Security algorithms128-bit WEP, 64-bit WEP, SSID, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Antennas quantity1
Antenna gain level (max)5 dBi
Product colorBlack, White
LED indicatorsLAN, Power, WAN
CertificationFCC, CE, KC
Output voltage9 V
Power source typeDC
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Cables includedLAN (RJ-45)
Weight and Dimensions IconWeight and Dimensions
Depth99 mm
Width133 mm
Height27 mm
Weight149 g
