Netis WF2411 User Manual

WF2411
48
4.7. Forwarding
4.7.1. Virtual Servers

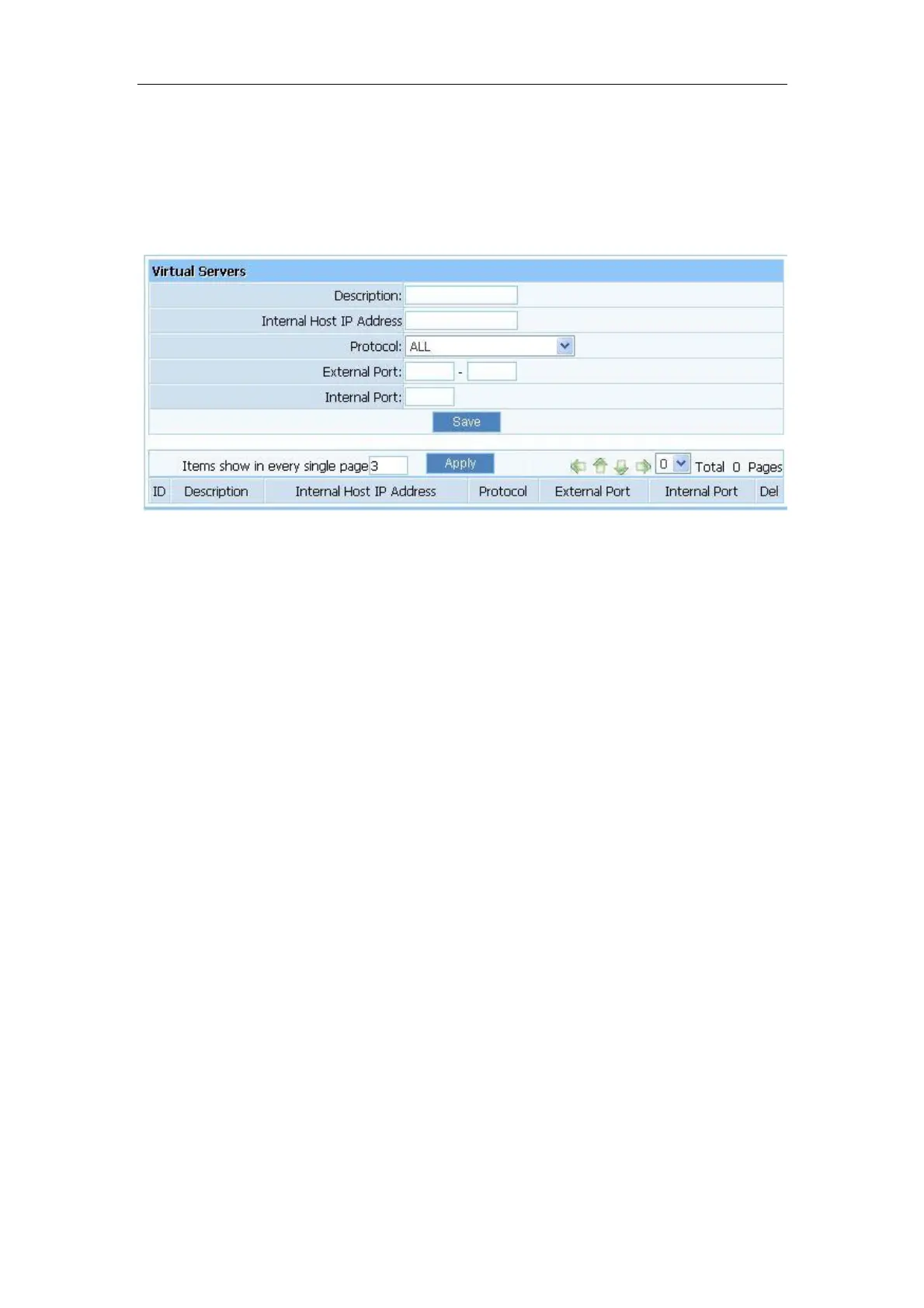

Figure 4-37
 Description: Describe current virtual server item.
 Internal Host IP Address: The “Internal Host IP Address” indicates IP address of the
internal host using virtual server.
 Protocol: The protocol item supplies several protocols. For example, if you have web
server within LAN, you can select the HTTP template then the router will input port
number 80 automatically.
 External Port: Input an extranet port number(the users in Internet can see these ports).
 Internal Port: Input an intranet port number.
4.7.2. Port Triggering
Port trigger module dynamically registers virtual server rules when any IP host generates the
packet from the specified trigger protocol and port.Port trigger module use forward protocol
type and port number and use the IPaddress of host that generates the trigger packet when it
registers a rule.

Netis WF2411 Specifications

General

VPN support	PPTP, L2TP, IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Input current	0.5 A
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4385 GHz
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 21, 24, 36, 48, 54, 65, 150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Antennas quantity	1
Antenna gain level (max)	5 dBi
Product color	Black, White
LED indicators	LAN, Power, WAN
Certification	FCC, CE, KC
Output voltage	9 V
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	99 mm
Width	133 mm
Height	27 mm
Weight	149 g
