Netis WF2411 User Manual

WF2411
36
Figure 4-17
4.4. Network
4.4.1. WAN
This item provides two access types for you to configure the WAN parameters. They are
wired access and wireless access.
4.4.1.1. Wired Access

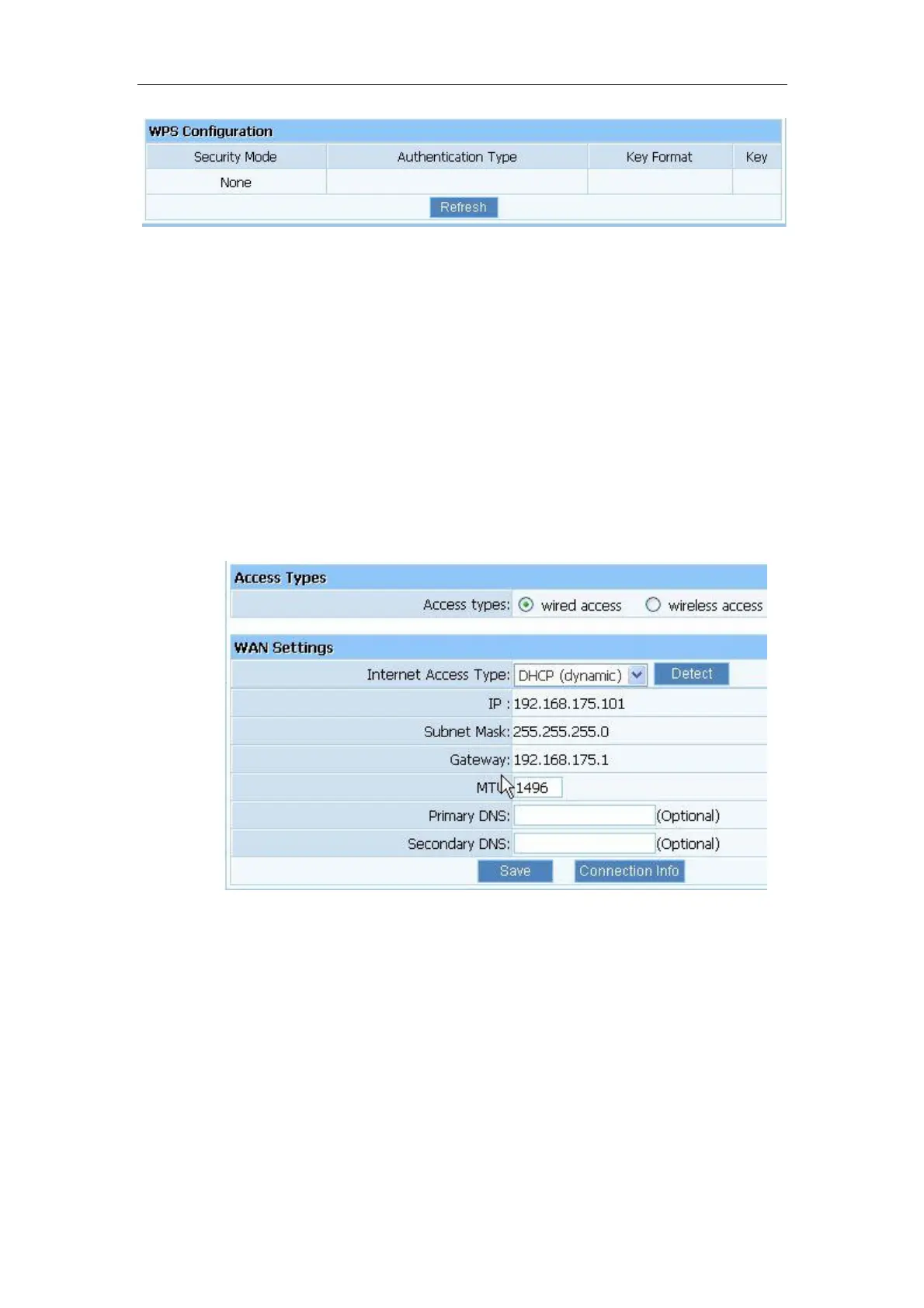

Figure 4-18
 Internet Access Type: Ask for your ISP to get the correct access type.
 IP: The IP address you obtained after connect to the Internet, if you haven‟t connected to
the Internet yet, this field is 0.0.0.0.
 Subnet Mask: The Subnet mask you obtained after connect to the Internet, if you haven‟t
connected to Internet yet, this field is 0.0.0.0.
 Gateway: The IP address of Default gateway you obtained after connect to the Internet, if
you haven‟t connected to Internet yet, this field is 0.0.0.0.
 MTU:The MTU (Maximum Transmission Unit) setting specifies the largest packet size
permitted for network transmission. Most DSL users should use the value 1492.You can
set MTU manually, and you should leave this value in the 1200 to 1500 range. If the value

Netis WF2411 Specifications

General

VPN support	PPTP, L2TP, IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Input current	0.5 A
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4385 GHz
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 21, 24, 36, 48, 54, 65, 150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Antennas quantity	1
Antenna gain level (max)	5 dBi
Product color	Black, White
LED indicators	LAN, Power, WAN
Certification	FCC, CE, KC
Output voltage	9 V
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	99 mm
Width	133 mm
Height	27 mm
Weight	149 g
