Netis WF2411 User Manual

WF2411
38
you set is not in accord with the value ISP provide, it may causes some problems, such as
fail to send Email, or fail to browse website. So if that happen, you can contact your ISP for
more information and correct your router‟s MTU value.
 Primary DNS:The DNS server translates domain or website names into IP address, input
the most common DNS server address you used or provided by your ISP.
 Secondary DNS: Input IP address of a backup DNS server or you can leave this field
blank.

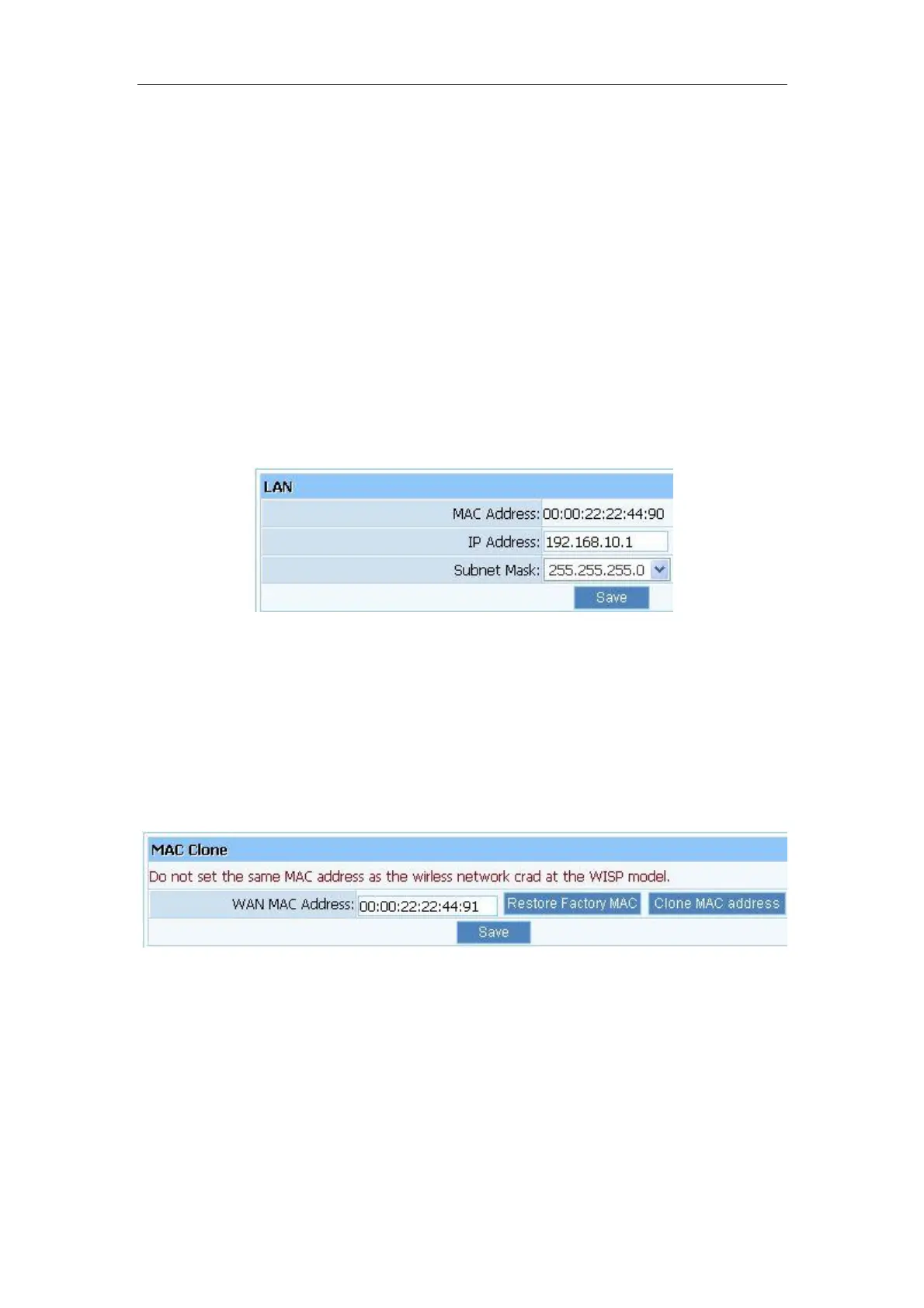

4.4.2. LAN
The IP address of LAN port is used for access router itself by computers that connect to the
router directly; here you can set IP address you need. The IP address format is like
***.***.***.***, and default IP address is 192.168.1.1, the default subnet mask is
255.255.255.0.
Figure 4-1
4.4.3. MAC Clone
The WAN port of router has a unique MAC address assigned by manufacturer; it called as
“Default MAC”. The “Clone MAC” is used for some special situations; For example, ISP only
allows certain MAC address to access the Internet, thus you can modify your WAN port‟s MAC
address in accord with the requirement of ISP, avoiding ISP‟s detection.
Figure 4-21
4.4.4. Port Settings
Here you can set the router's WAN and LAN interfaces work at 100M duplex,100M
half-duplex,10M duplex and 10M half-duplex communication mode.

Netis WF2411 Specifications

General

VPN support	PPTP, L2TP, IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Input current	0.5 A
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4385 GHz
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 21, 24, 36, 48, 54, 65, 150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Antennas quantity	1
Antenna gain level (max)	5 dBi
Product color	Black, White
LED indicators	LAN, Power, WAN
Certification	FCC, CE, KC
Output voltage	9 V
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	99 mm
Width	133 mm
Height	27 mm
Weight	149 g
