13

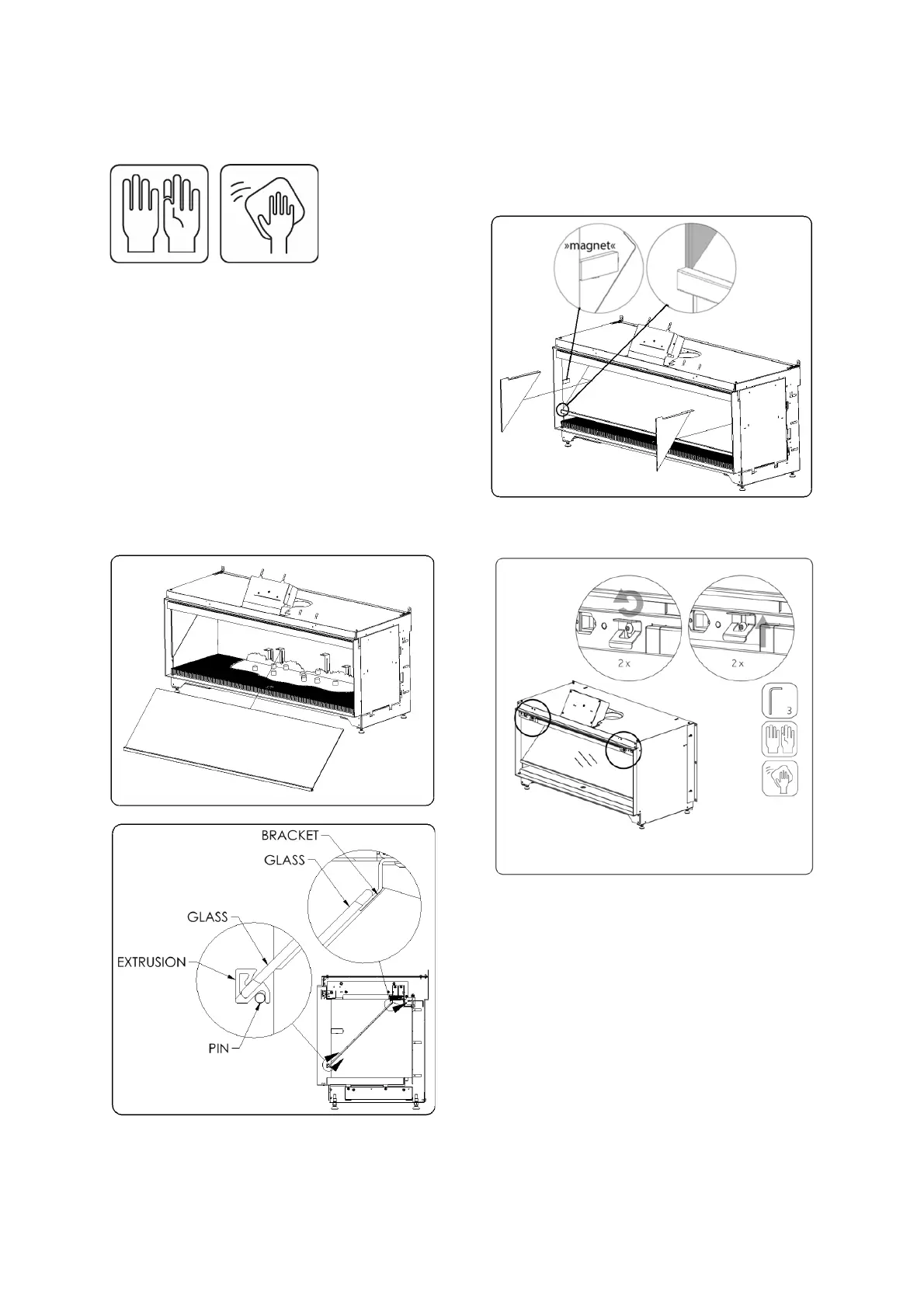

5.5 Placing Glass Reflector
The glass reflector is susceptible to stains and fingerprints.
For this reason, always use the supplied gloves for
installation. To clean the glass reflector, follow the cleaning
instructions provided in the maintenance section of this
manual.
Remove the protective film from the glass reflector before
installing the reflector into the fireplace. Be carefull when
installing to not damage the glass.
The glass reflector installs into the fireplace with the
attached extrusion at the front with the notch in the
extrusion facing down. Slide the glass reflector into the
fireplace. The back of the glass will rest on a bracket at the
top of the fireplace. The extrusion at the front of the glass
will fit over the two studs protruding from the side of the
fireplace at the front.
5.6 Placing Upper Side Walls
Install the upper side walls in the fireplace.
Install the side walls by placing the bottom point against the
extrusion on the glass reflector. Then rotate the side wall
towards the wall and the magnet will hold it in place.
5.7 Placing Front Window
Loosen the screws to slide the retaining clips up. Do not
remove the screws.
