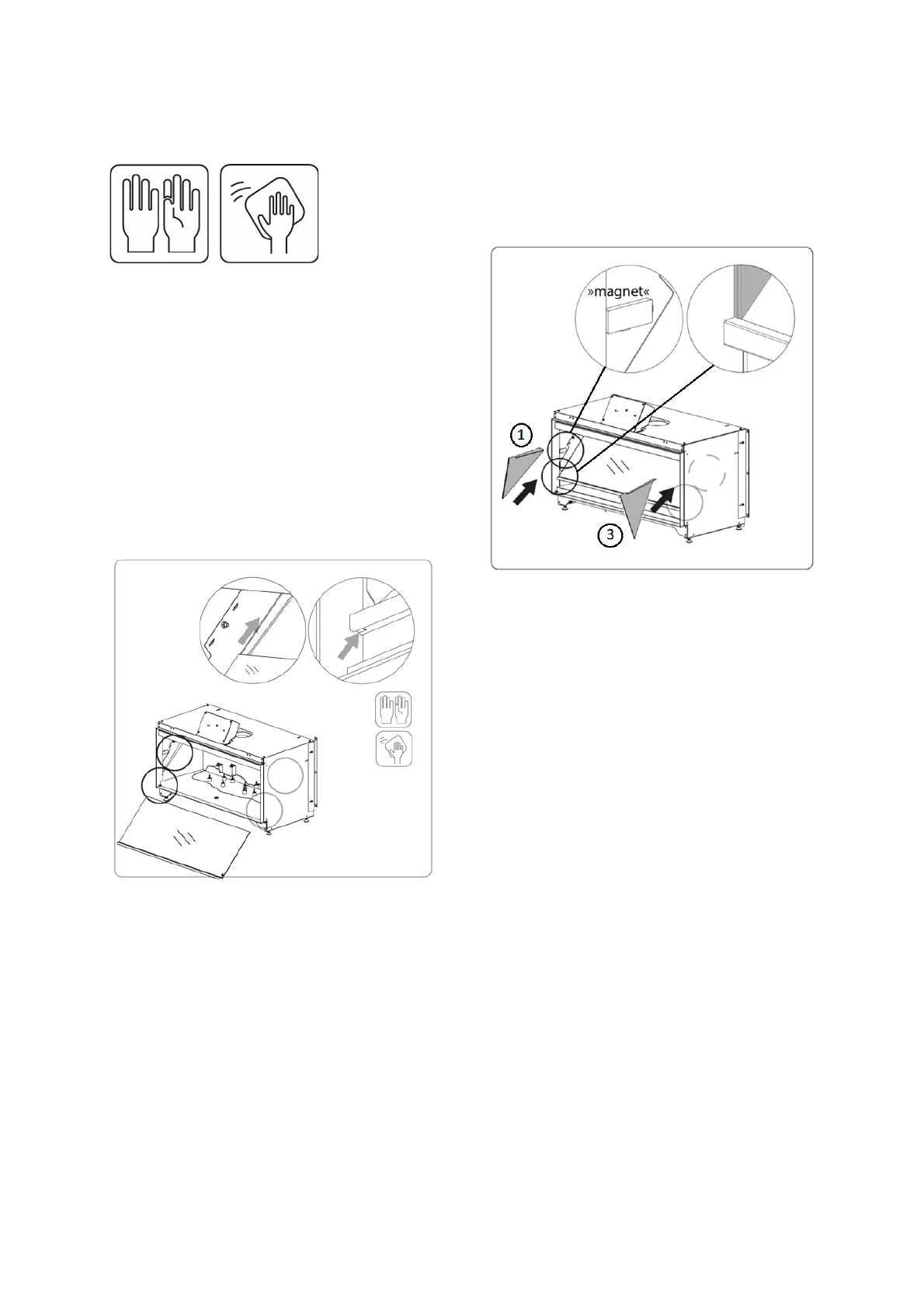

5.5 Placing Glass Reflector
The glass reflector is susceptible to stains and fingerprints.
For this reason, always use the supplied gloves for
installation.
To clean the glass reflector, follow the cleaning instructions
provided in the maintenance section of this manual.
Remove the protective film from the glass reflector before
installing the reflector into the fireplace. Be carefull when
installing to not damage the glass.
The glass reflector installs into the fireplace with the
attached extrusion at the front with the notch in the
extrusion facing down. Slide the glass reflector into the
fireplace so it is resting on the ledge of the lower sidewalls.
The extrusion at the front of the glass will fit over the two
studs protruding from the side of the fireplace at the front.
5.6 Placing Upper Side Walls
Install the upper side walls in the fireplace. The left-side wall
has a 1 cut out in the top flange of the part. The right-side
wall has a 3 cut out in the top flange of the part.
Install the side walls by placing the bottom point against the
extrusion on the glass reflector. Then rotate the side wall
towards the wall and the magnet will hold it in place.
To Next Page
