REPLACING THE MAIN PCA

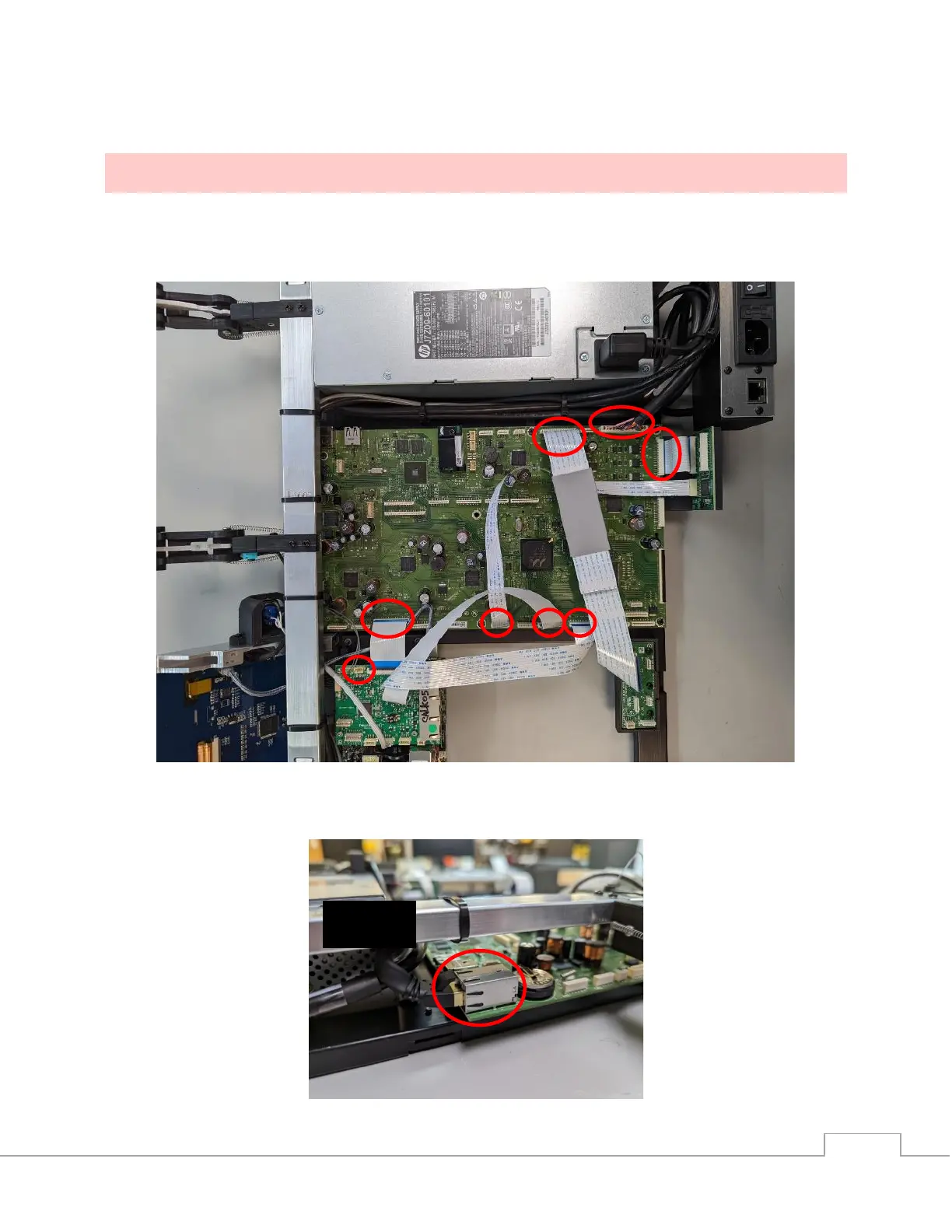

1. Unplug the FFCs connecting the Main PCA to the Controller, Sled Drive, Ink
Short Boards and the Power Supply Unit (PSU). Unplug the reset line from
the Controller Boards.
2. Unplug the Ethernet cable next to the power supply and underneath the
LWR member.
LWR
member
