NeuraLabel Callisto - Page 5

NeuraLabel Callisto Service Guide
5
Confidential – Not for Redistribution

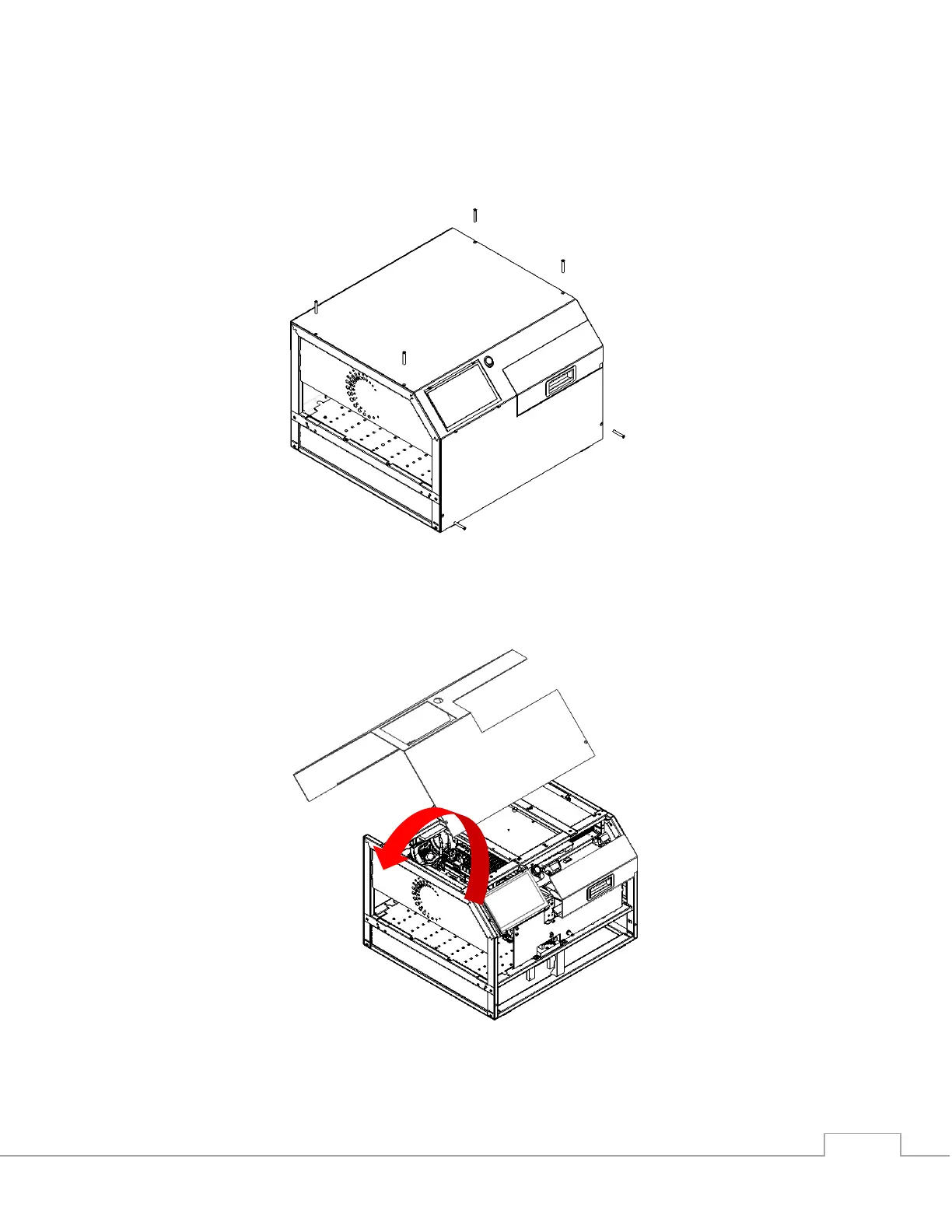

2. Remove the six screws starting with the four screws on the top of the
external enclosure followed by the two screws on the front of the printer
using a Philips head screwdriver.
3. Lift up and rotate the front of the enclosure back to remove the enclosure
from the printer.
