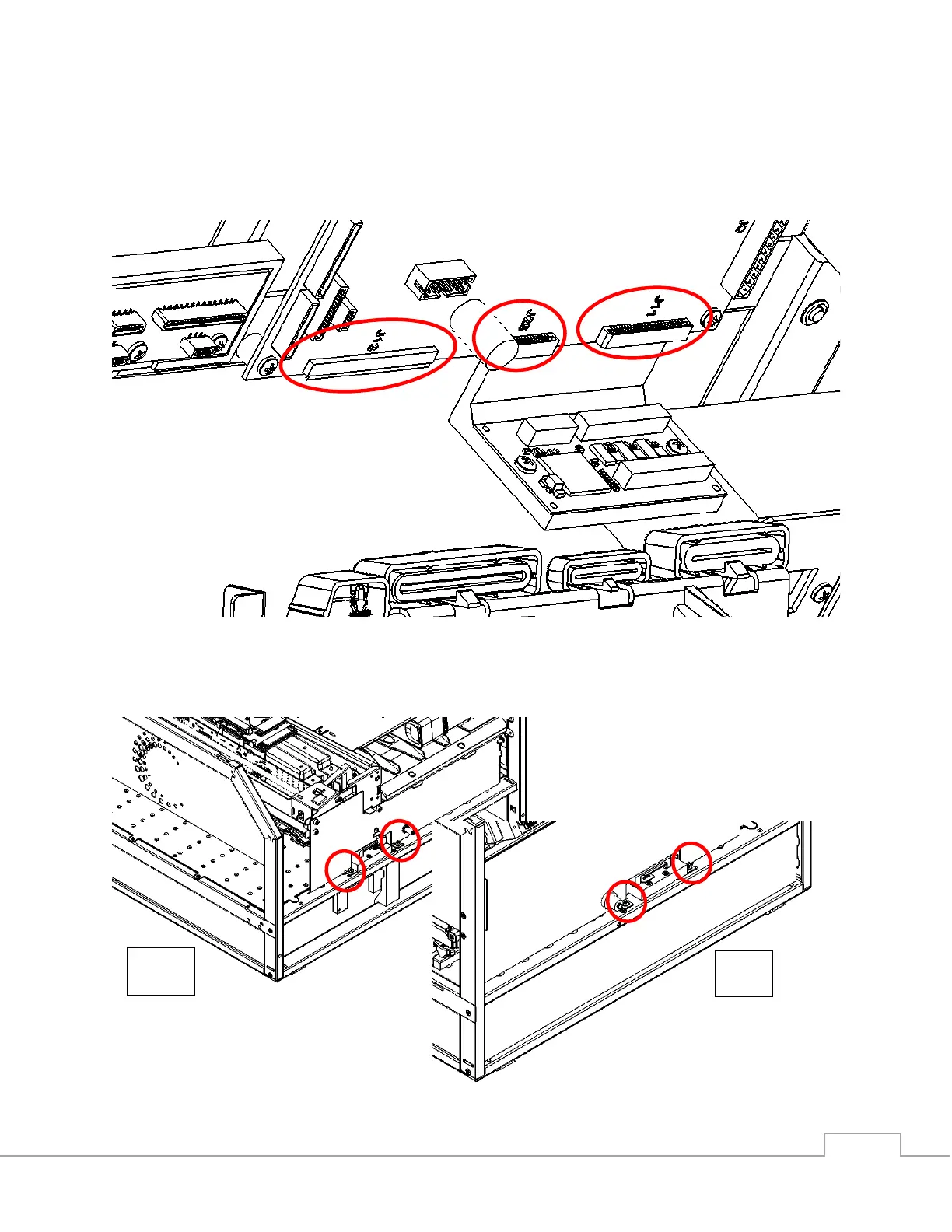

6. Unplug the three Flat Flexible Cables (FFCs) connecting the BNB to the
Main PCA by pulling the two white cables out of their connectors and
unlocking the black cable’s connector.
7. Locate the four screws securing the BNB to the Frame. There are two
Philips screws on the front and two on the back of the printer.
Front
Back
