Neuton CE5.2 User Manual

14 www.neutonpower.com
2. Line up the holes of the Upper Handlebar Assembly with
the holes in the Lower Handlebar sections.
NOTE: There are three (3) height positions (holes in the Upper
Handlebar) for the Upper Handlebar Assembly. Connect
the Upper and Lower Handlebar sections together using
the appropriate holes at a height that is most
comfortable for you.
3. Slide the Connector Bolts (from the inside of the
Handlebars, outward) through the predetermined holes
in the Upper and Lower Handlebar sections on each side
of the Mower and lightly screw on the black Connector
Knobs just enough to hold the Upper and Lower
Handlebar sections together.

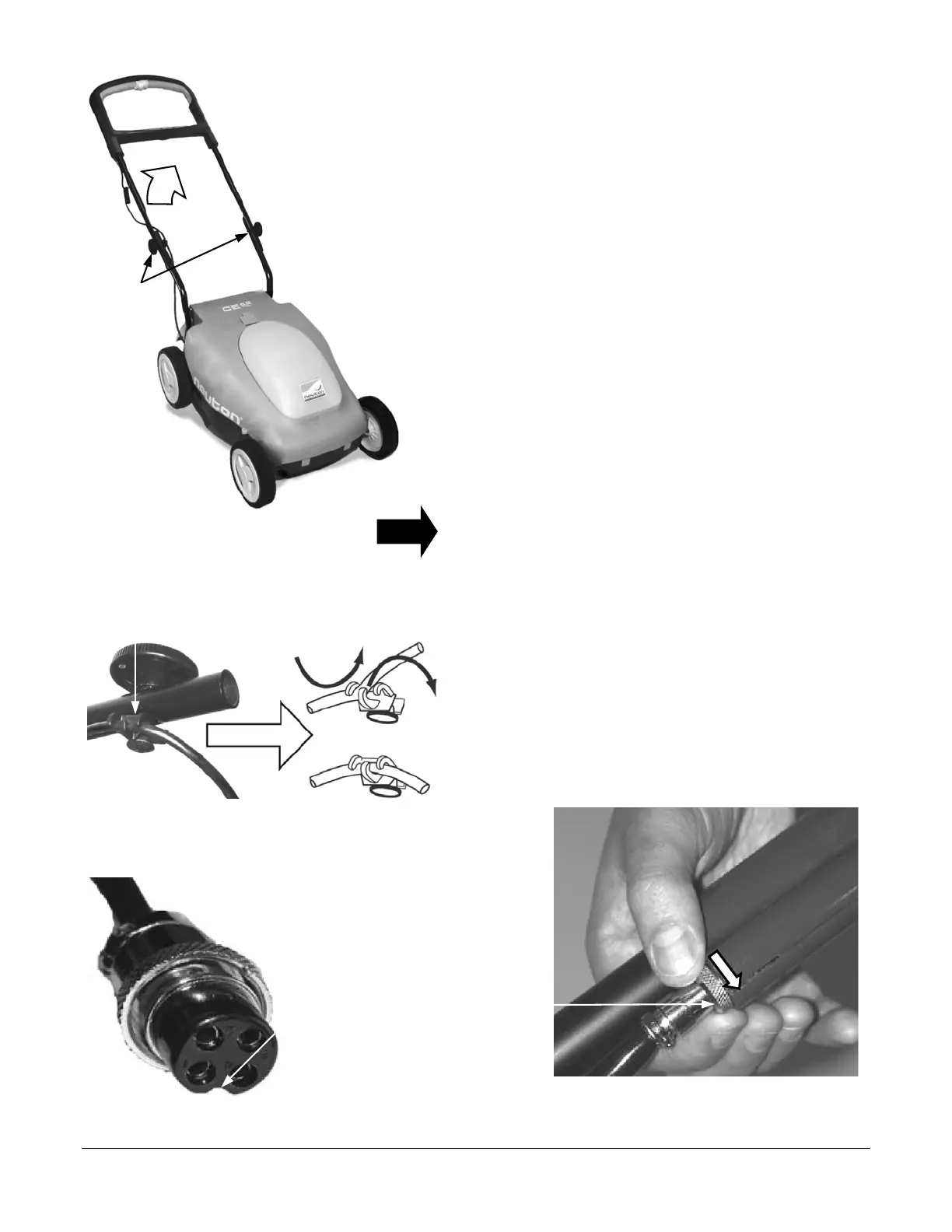

4. Swing the Upper Handlebar Assembly into an upright
position so that the Upper and Lower Handlebars line up
and slide into place (Figure 8). Tighten the black
Connector Knobs by hand until they are snug.
5. Check the length the Handlebar for comfort. If necessary,
reconnect the Upper and Lower (up or down) to a height
that is best for you.
To save space for storage, you can loosen these black
Connector Knobs to move the Upper Handlebar Assembly
forward onto the Mower’s Deck.
Step 6: Attach the Cable to the Handlebar Assembly
1. Run the Cable through the Cord Clip (Figure 9) on the
right Lower Handlebar section.
2. Align the Half-Moon Cutout in the Cable End (Figure 10)
with the Cable Housing on the Handlebar, and slide them
together.
3. Tighten the Locking Nut by hand to connect the Cable
(Figure 11) with the Housing.
TIP
Figure 8
Black
Connector
Knobs
Figure 9
Cord Clip
Figure 10
Half-Moon Cutou
t
Figure 11
Locking Nut
Tighten
1
2
3
