Rear Bagger

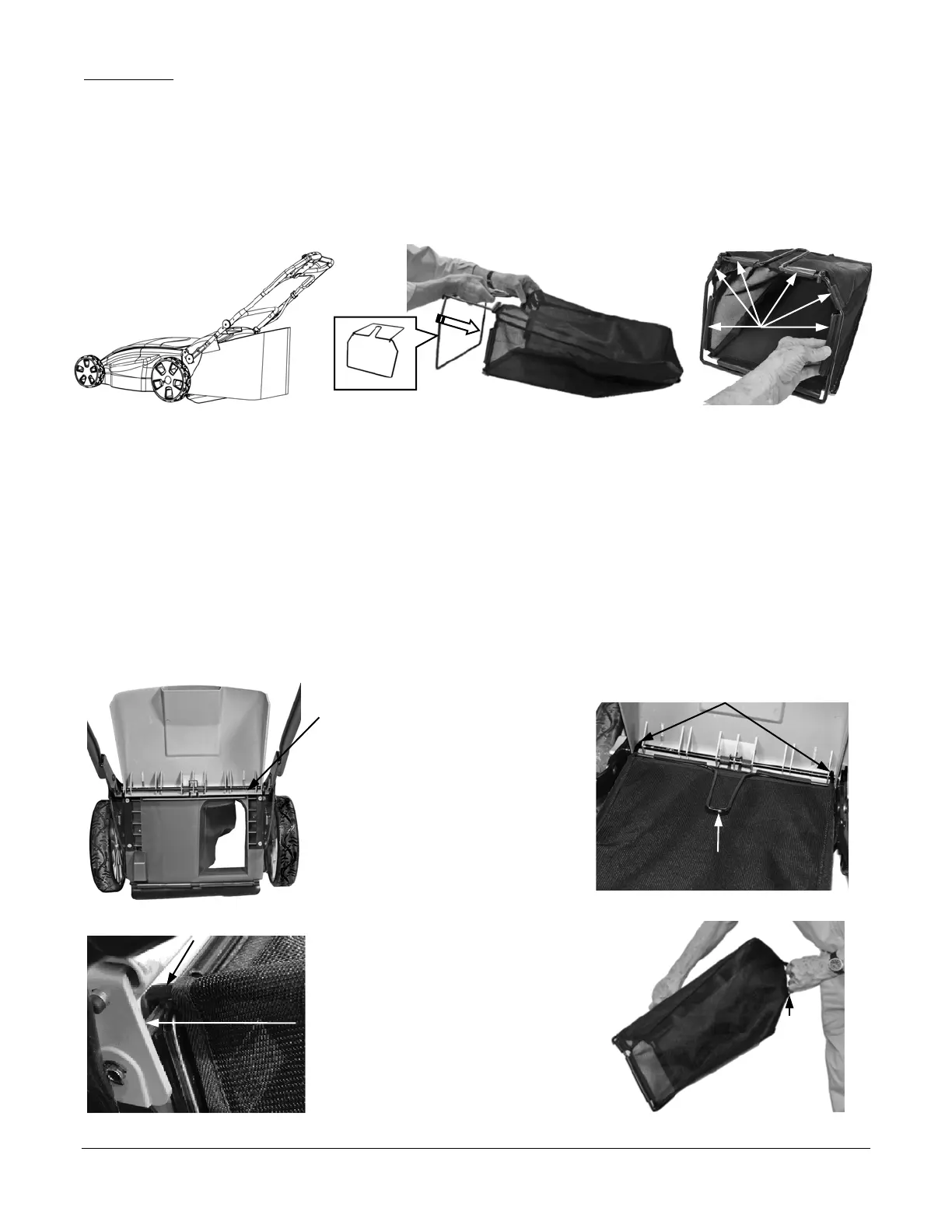

The NEUTON Rear Bagger lets you cut and catch your grass clippings, eliminating the need to rake. The Rear Bagger
easily attaches to the rear of the Mower (Figure 10). The Bagger shipped unassembled. The following instructions
outline the steps necessary to assemble, install, and remove the Bagger.
Assembling the Bag to the Bag Frame
1. With the Bottom Stiffener Board facing down, insert the Frame into the Bag (Figure 11).
2. Snap the Bag Clips around the Frame top, sides and bottom (Figure 12) to secure the Bag to the Frame.
Installing the Bagger
1. Raise the Discharge Guard on your Mower (Figure 13) and note the metal Support Rod at the rear of the Mower.
2. Grasp the Bagger by the Top Handle (Figure 14) and center it at the back of the Mower.
3. Align the Metal Latch Hooks over the Support Rod (Figure 15) and lower the Bagger in place until the Wire Frame at the
bottom of the Bagger rests on the Mower. Lower the Discharge Guard.
Removing and Emptying the Bagger
1. Raise the Discharge Guard and using the Top Handle of the Bagger, lift the Bagger off the Support Rod and away from the
Mower. Lower the Discharge Guard.
2. To empty the Bagger, tilt the Top Handle forward. Use the Cloth Handle (Figure 16) at the rear of the Bagger to move the
contents toward the front as you empty the Bagger.
Figure 13
Discharge
Guard
Support Ro
Figure 14
Figure 15
Figure 16
Latch Hooks
Top Handle
Latch Hook
Support Rod
Cloth
Handle
Rear
Bagger
Figure 10
Frame
Figure 11
Stiffener Board
Bag Clips
Figure 12
