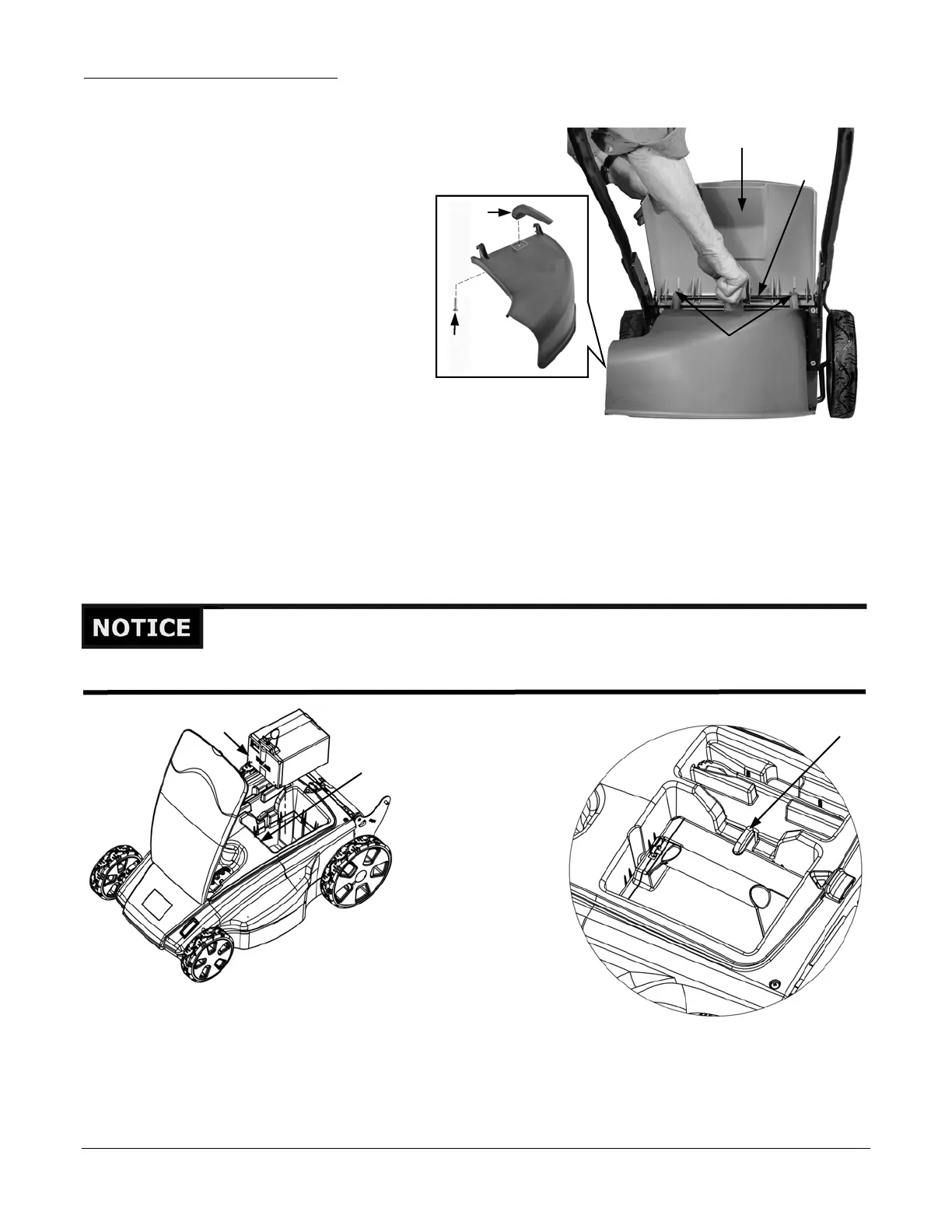

NEUTON CE6.4 Battery-Powered Mower - Safety & Operating Instructions 9
Side Discharge Chute (sold separately)
The Side Discharge Chute (Figure 17) allows for proper discharge of the grass, which prevents clogging. The Chute ships
without the Handle so you will have to install the Handle prior to use using a small Phillips Screwdriver. The Handle and Screw
are located in the plastic bag that shipped with the Chute.
Tool Needed:
• Small Phillips Screwdriver
1. Raise the hinged Discharge Guard on the back of
the Mower (Figure 17).
2. Orient the Discharge Chute as shown in Figure 17.
Position the two (2) Hangers on the Chute over the
Support Rod and lower the Chute into place
(Figure 17).
3. Lower the hinged Discharge Guard.
Step 6: Insert the Battery after being fully charged.
1. Orient the Battery as shown in Figure 18. Align the Battery Cap with the side of the Mower housing where the label reads
“Align the Battery Cap with this side of the machine.”
NOTE: The indentations on the bottom of the Battery must line up with the metal tabs in the bottom of the Battery compartment.
2. After confirming the correct orientation of the Battery, insert the Battery fully into the Battery compartment.
3. Turn the Battery Retainer Arm back over on top of the Battery to secure it in place (Figure 19).
If the Battery is not oriented correctly, it will not fully depress into the opening. If this happens, remove the Battery, recheck the
orientation, and try again.
Retainer Arm
Figure 19
Figure 18
Label
Support
Rod
Discharge Guard
Hangers
Side Discharge Chute
Figure 17
Handle
Scre
w
Bat
t
ery Cap
