ASSEMBLY INSTRUCTION Locking 3 pole powerCON
I
www.neutrik.com
NEUTRIK AG LI T: +423 / 237 24 24 F: +423 / 232 53 93
NEUTRIK USA Inc. USA T: +1 704 / 972 3050 F: +1 704 / 438 9202
( )
NEUTRIK UK Ltd. UK T: +44 1983 / 811 441 F: +44 1983 / 811 439
NEUTRIK Vertriebs GmbH DE / NL / AT/DK T: +49 8131 / 280 890 F: +49 8131 / 280 830
NEUTRIK France FR T: +33 1 / 4131 6750 F: +33 1 / 4131 0511
NEUTRIK Tokyo Ltd. JP T: +81 3 / 3663 4733 F: +81 3 / 3663 4796
NEUTRIK Hong Kong Ltd. HK T: +852 / 2687 6055 F: +852 / 2687 6052
NEUTRIK India Pvt. Ltd. IND T: +91 / 982 05 43 424 F: +91 / 22 26163
R
Draft. Nr.: BDA 452 Update: 31.08.2015 Data subject to change without prior notice. 2015 NEUTRIK . ALL RIGHTS RESERVED. NEUTRIK are registered trademark.
I I
® ®
©
Page 2

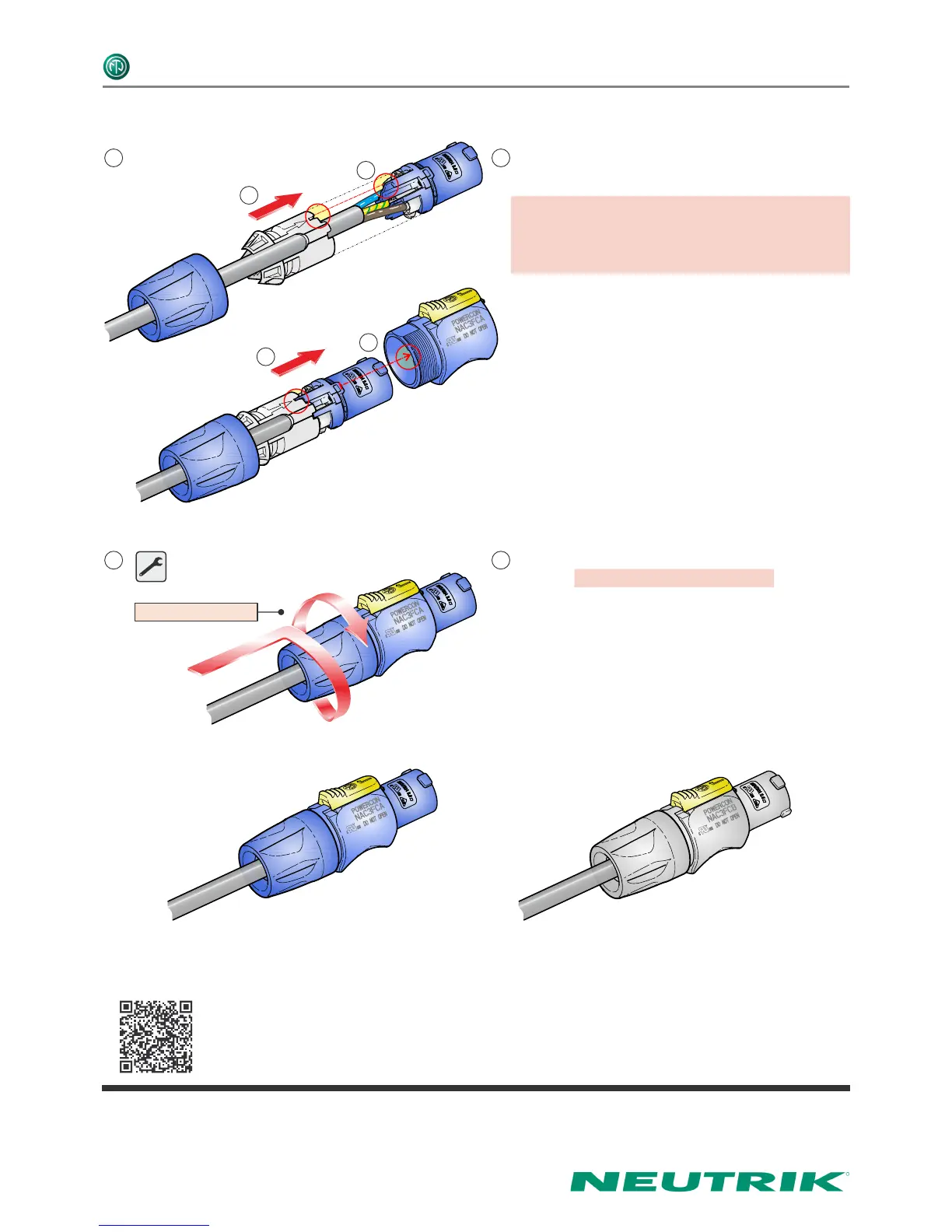

Slide the insert and the chuck (1) into the
housing (2).
Important:
Align the chuck by positioning the nose into (a)
the recess.
Pay attention to the guiding keyway!(b)
Fasten bushing by means of a fork wrench 7/8”
(SW 22), min. Torque 2.5 Nm (1.8 lb-ft).
D D
1.
a
2.
b
E E
Torque Value 2.5 Nm
Wrench size
7/8" (SW22)
FINISHED powerCON
NAC3FCA NAC3FCB
Find more details of powerCON on www.neutrik.com.
