INTRODUCTION
Informationunitsandinformationsearch
Eachchapteriscomposedofinformationunits.EachinformationunithastheSAPcodeshowninparentheses.This
indicatesthefunctionandtypeofinformationinthatinformationunit.Eachinformationunithasapagereferencewithin
thatChapter.Theinformationunitsprovideaquickandeasywaytondjusttherightpieceoftechnicalinformation
youarelookingfor.
Exampleinformation
unit
Engineblockcover-Front–Remove(10.102.AP .01-F.10.A.10)
InformationUnitSAP
code
10102AK01F10.A.10
SAPcodeclassication
EnginePanandcoversEngineblock
cover
Front
Servicedata
Remove
NHIL12GEN0070A1

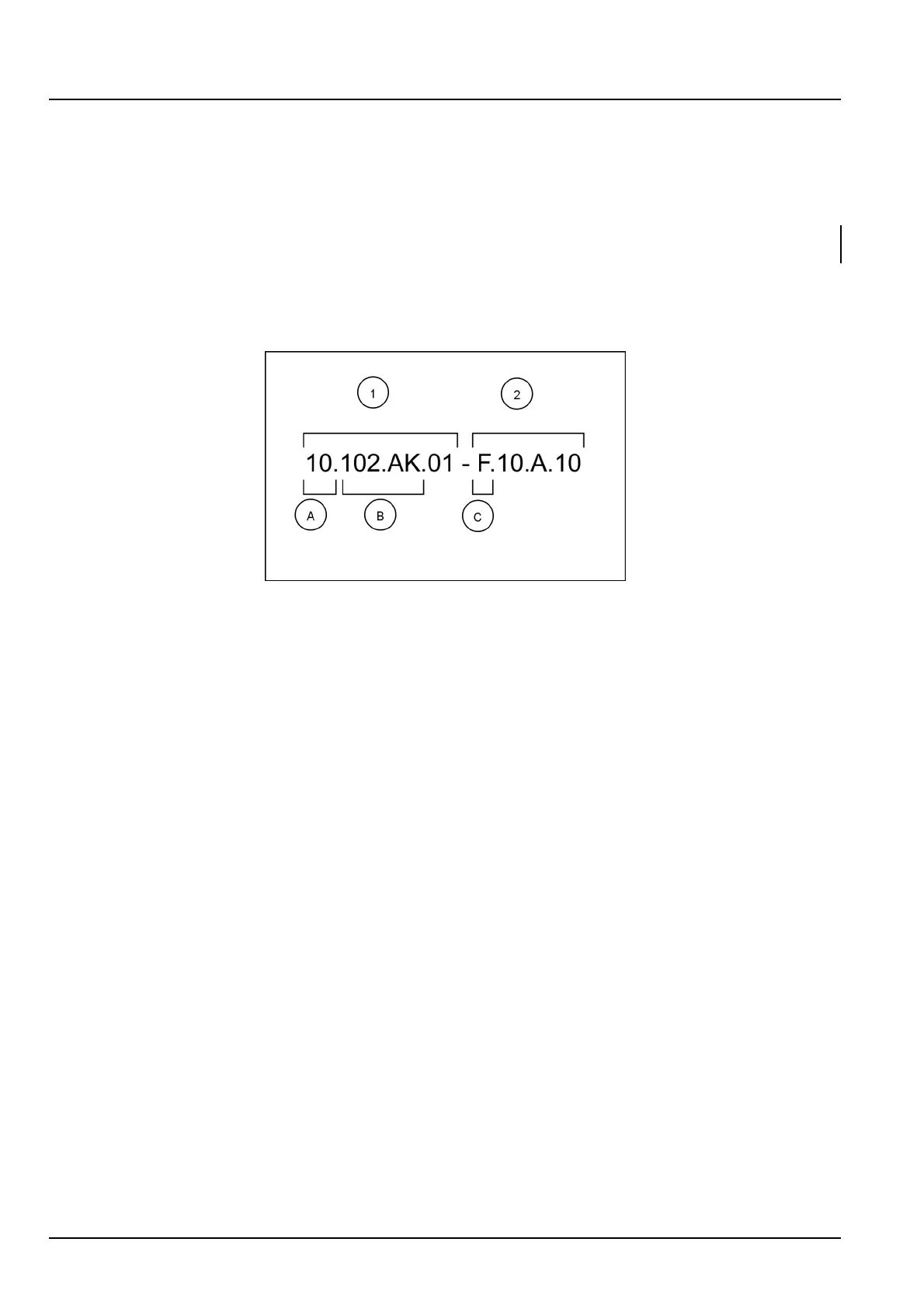

Navigatetothecorrectinformationunityouaresearchingforbyidentifyingthefunctionandinformationtype
fromtheSAPcode.
•
(1)Locationand(2)Informationtype.
•
(A)correspondstothesectionsoftheservicemanual.
(B)correspondstothechaptersoftheservicemanual.After(B)theremaybesomeadditionalinformation.Inthis
caseitshows“.01”,whichrepresentsthe“Front”blockcover.Theseoptionsmaybefront/rear,left/right,hydraulic/
mechanicaletc.
(C)correspondstothetypeofinformationlistedinthechaptercontents:TechnicalData,FunctionalData,Diagnos-
tic,orService.
(A)and(B)arealsoshowninthepagenumberingonthepagefooter.
THERESTOFTHECODINGISNOTLISTEDINALPHANUMERICORDERINTHISMANUAL.
•
Youwillndatableofcontentsatthebeginningandendofeachsectionandchapter.
Youwillndanalphabeticalindexattheendofeachchapter.
•
Byreferringto(A),(B)and(C)ofthecoding,youcanfollowthecontentsorindex(pagenumbers)andquicklynd
theinformationyouarelookingfor.
Pageheaderandfooter
Thepageheaderwillcontainthefollowingreferences:
•
SectionandChapterdescription
Thepagefooterwillcontainthefollowingreferences:
•
PublicationnumberforthatManual.
•
Versionreferenceforthatpublication.
•
Publicationdate
•
Section,chapter,andpagereferencee.g.10.102/9
4752433118/04/2013
8
