4 - OPERATING INSTRUCTIONS
Extendable drawbar - Roll Over Protective Structure - (ROPS)
NOTICE: When transporting equipment on highways, in-
stall a safety chain with a tensile strength equal to the
gross weight of the implement, between the tractor and
implement hitch.

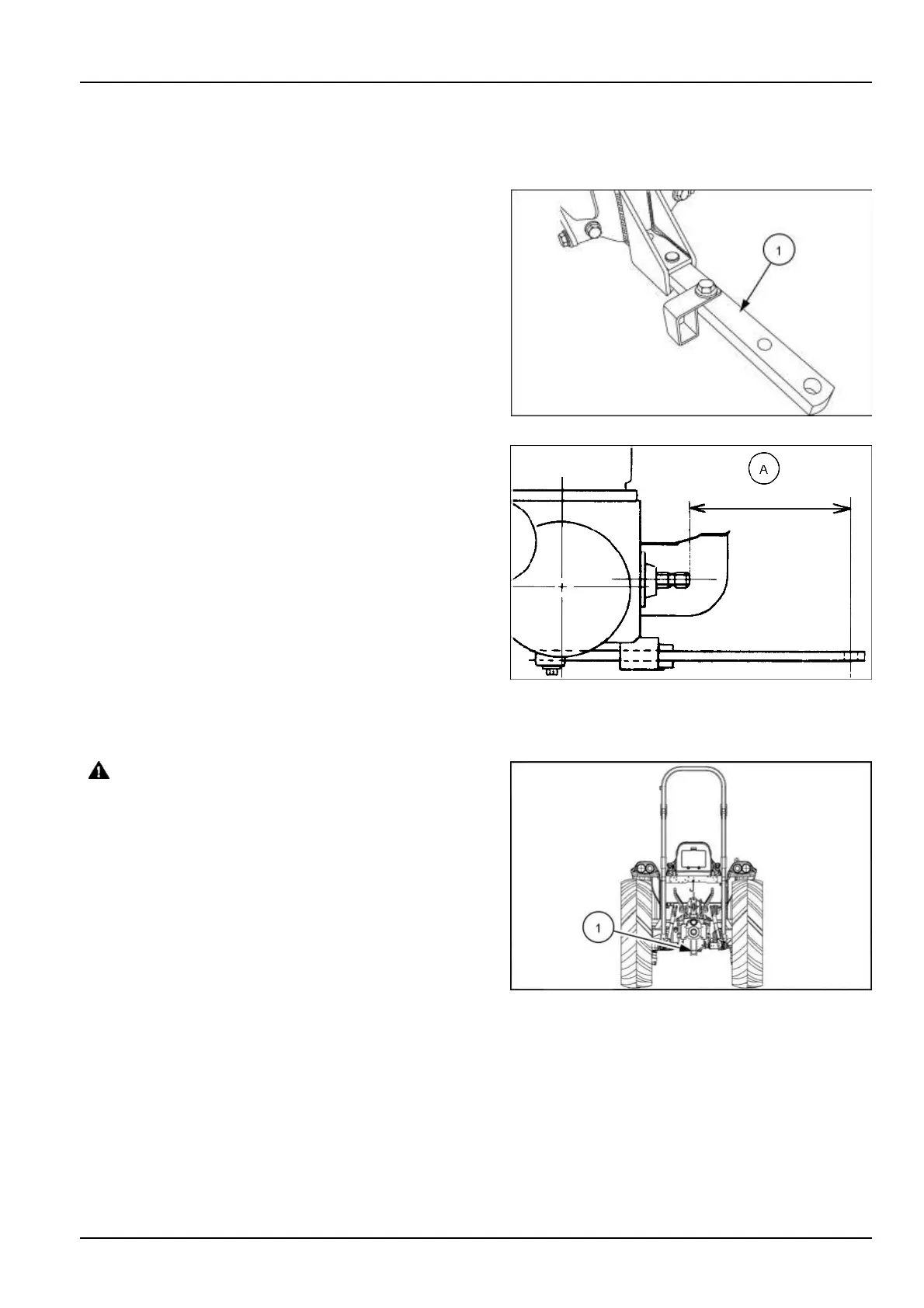

Your tractor is equipped with a îš¿xed/extendable drawbar
(1) for towing equipment behind the tractor.
93100910 1
NOTICE: The drawbar is required to provide standard rear
Power Take-Off (PTO) drawbar relationship.
20099087 2
(A) 356 mm (14 in)
WARNING
Overturning hazard!
Always use the drawbar, pick-up hitch,
or lower links in the lowered position for
pull-type work. Do not pull from the lower
links if they are above the horizontal position.
Failure to comply could result in death or se-
rious injury.
W0417A
NHIL13CT01186AA 3
(1)
Drawbar
4-23
