39

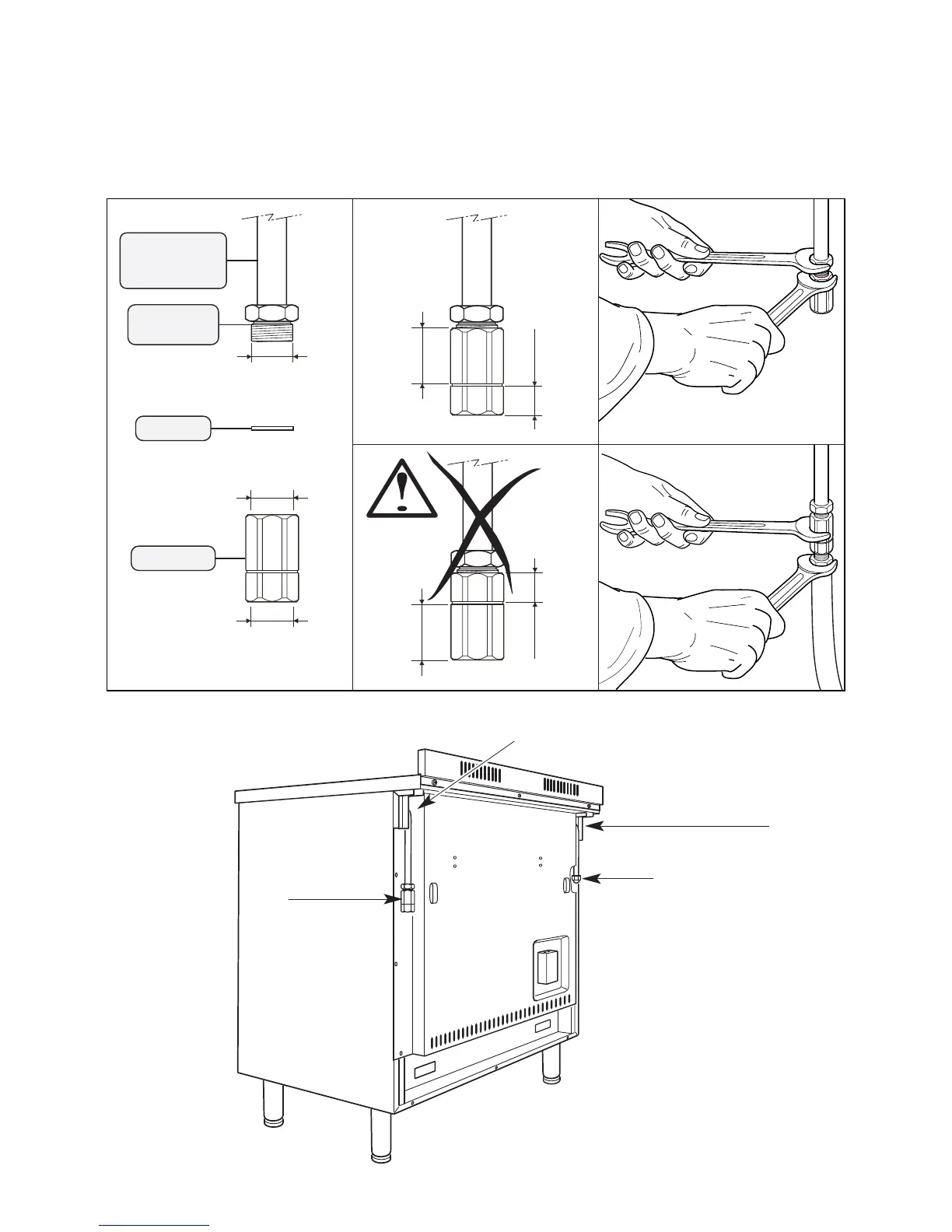

Fig. 9.2
Left gas inlet pipe
Right gas inlet pipe
Plug
Connector
Fig. 9.1
1/2” BSP (female)
1/2” G cylindrical
(ISO 228-1) male
1/2” G cylindrical
(ISO 228-1) female
20 mm 10 mm
20 mm 10 mm
OK
NOT
OK
Cooker manifold
(Right or left
inlet pipe)
Manifold male
pipe fitting
Gasket (
*
)
Connector (
*
)
(
*
) Supplied with the appliance in a separate kit.
To avoid damage to the appliance gas rail inlet pipe the fittings should be
tightened using two suitable spanners (fig. 9.1).
After connection to the mains gas supply the couplings should be checked for
gas soundness/tightness as per current regulations for the gas type being used.
