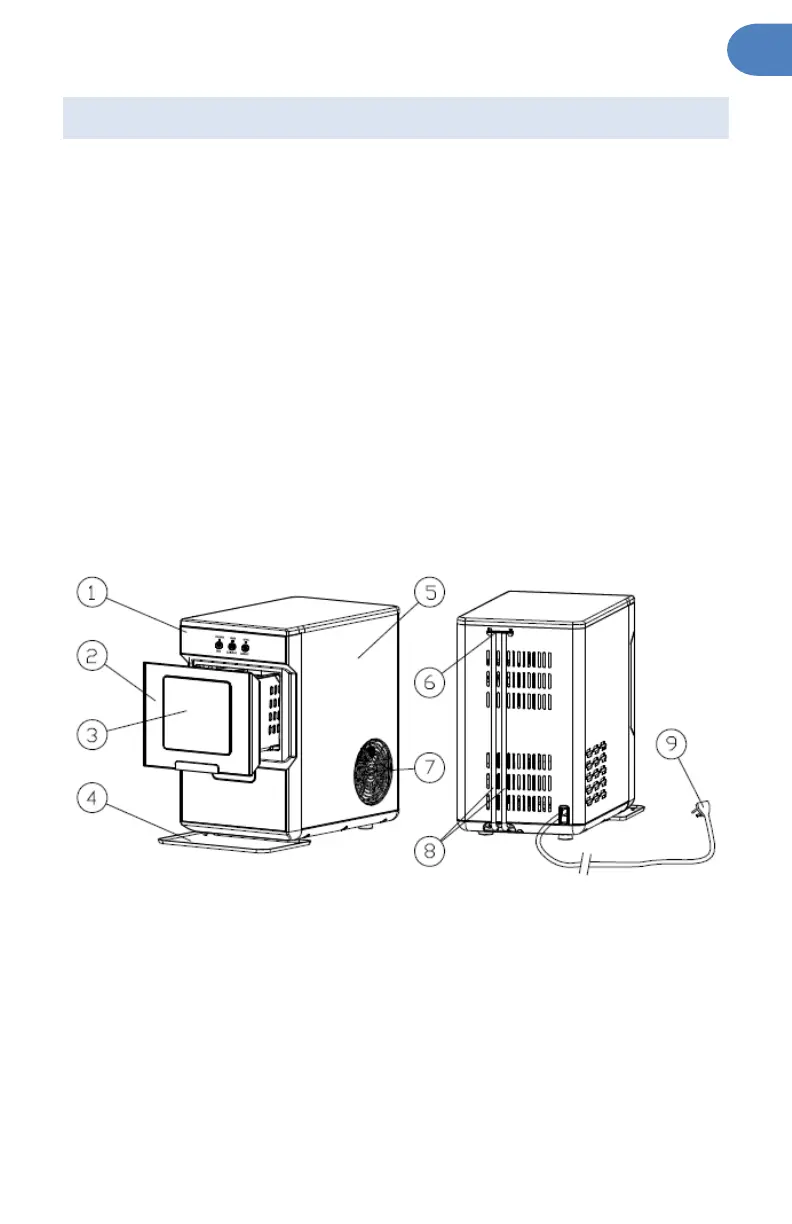

PARTS LIST
1. Control Panel:
Indicator light: Water Low, Power, Ice full
Button: ICE, CLEAN, LIGHT
2. Drawer
3. Observation window: See how much ice has been stored in the drawer.
4. Drip tray
5. Metal shell
6. Water drain cap: After cleaning the ice maker, remove the drain cap from
the back of the appliance by pulling out the cap from the drainpipe,
emptying the tank under the drawer, then reinserting the cap and putting
it back again.
7. Hot Air outlet
8. Drainpipe: After cleaning procedure, you can collect dirty water from the
drainpipe (there are two pipes: one connects to the evaporator, the other
one connects to the water tank under the drawer).
9. Power cord
