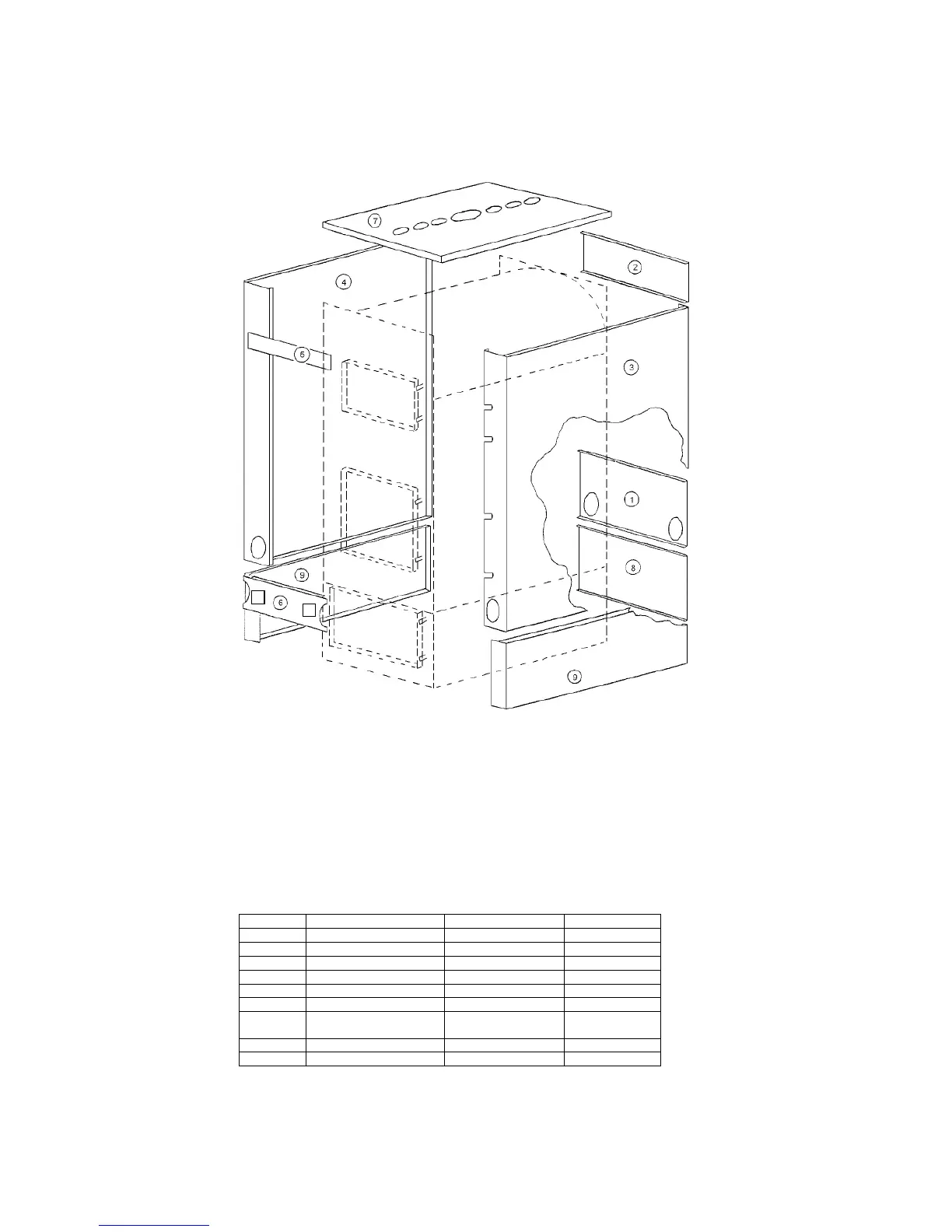

CASING INSTALLATION PROCEDURE

INSTALLATION PROCEDURE

1. Place 30 x 110 piece of insulation over top of boiler and down sides.

2. Place bottom rear panel (1) in place with inlets through holes in panel. Rear extension (8) is placed below (1). (1) and (8) may

be shipped in one piece.

3. Place top rear panel (2) above stack box.

4. Fasten side panel extensions (9) to bottom of side panels (3) and (4).

5. Place side panel (3) against boiler, and over the ends of panels (1), (2) and (8). Insert 1 screw to hold panels (2) & (3), 2

screws to hold panels (1) & (3) & 2 screws to hold panels (8) & (9).

6. Repeat step 4 with side panel (4).

7. Fasten top front panel (5) above access doors to panel (3) with 1 screw and to panel (4) with 1 screw.

8. Fasten bottom front panel (6) below fire door with 2 screws into panel (3) and 2 screws into panel (4).

9. Place top panel (7) over top of other panels and fasten in place with screws.

ITEM DESCRIPTION PART NUMBER QUANTITY

1 & 8 Bottom Rear Panel 4150038 1

2 Rear Panel Liner Top 4150037 1

3 Right Side Panel 4150029 1

4 Left Side Panel 4150030 1

5 Top Front Panel 4150032 1

6A Bottom Front Panel 4150036 1

Bottom Front Panel c/w

Secondary Air Openings

4100134 1

7 Top Panel 4150031 1

9 Side Panel Extension 4150033 2
