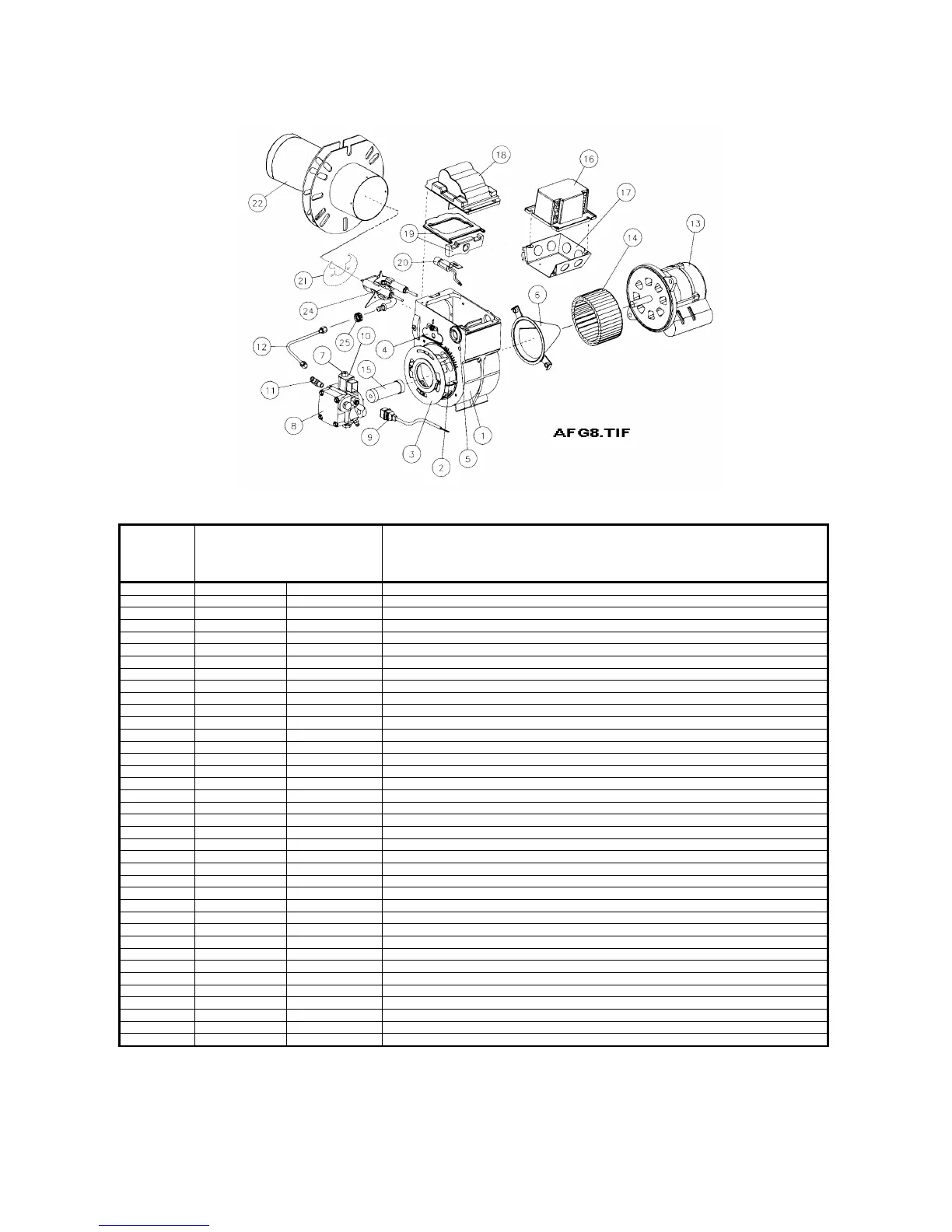

BECKETT AFG BURNER
PARTS LIST
PART NUMBER
ITEM
NO.
BECKETT NEWMAC
DESCRIPTION
1 5877 2090024 Burner Housing Assembly
2 3709 Air Shutter
3 3492 Air Band
4 3493 Escutcheon Plate
8 21844U 2060012 Pump Clean Cut A2EA - 6520
51843U Strainer & Gasket
10 21755U 2090065 Valve Coil (Suntec Part No. 3713824)
7 21877U 2090072 Valve Stem
51573 2090058 Suntec Pump c/w Solenoid Valve
51843U Strainer & Gasket
21755U Valve Coil (Suntec Part No. 3713824)
Valve Stem (Includes 2 O Rings) (Suntec Part No. 3773578)
Solenoid Valve Repair Kit (Suntec Part No. 991375)
9 21807 Valve cordset
11 2256 Pump Nozzle Port Fitting
12 5394 Connector Tube Assembly
13 21805U 2020012 PSC Drive Motor, 3450 RPM
14 2999U 2090056 Blower Wheel
16A 7456U 2090069 Primary Relay, Honeywell R7184B
16B 7457U 2090067 Primary Relay, Honeywell R7184P
17 5770 Junction Box Kit
18 51771U 2090064 Electronic Ignitor (14,000 Volt)
20 7006U 2010006 Cad Cell C554A1455B Honeywell
21 3384 3-3/8U Static Plate
22 5153633BK 2090039 Blast Tube c/w Welded Flange AFG (7 7/8”)
2110009 Endcone, F6
24 2090022 Electrode Assembly 8”
31517 2110015 Ceramic Heat Shield
2110016 Ceramic Heat Shield Holder
3416 2080051 Flange Gasket
51770 2090061 Field Controls AirBoot
5880 2090044 Low Firing Rate Baffle
5941 Adjusting Plate Assy
2100128 Nozzle, Delavan 0.85 X 70
o
A
2100132 Nozzle, Delavan 1.00 X 70
o
A
2100129 Nozzle, Delavan 1.25 X 70
o
A
2100133 Nozzle, Delavan 1.35 X 70
o
A
2100134 Nozzle, Delavan 1.50 X 70
o
A
