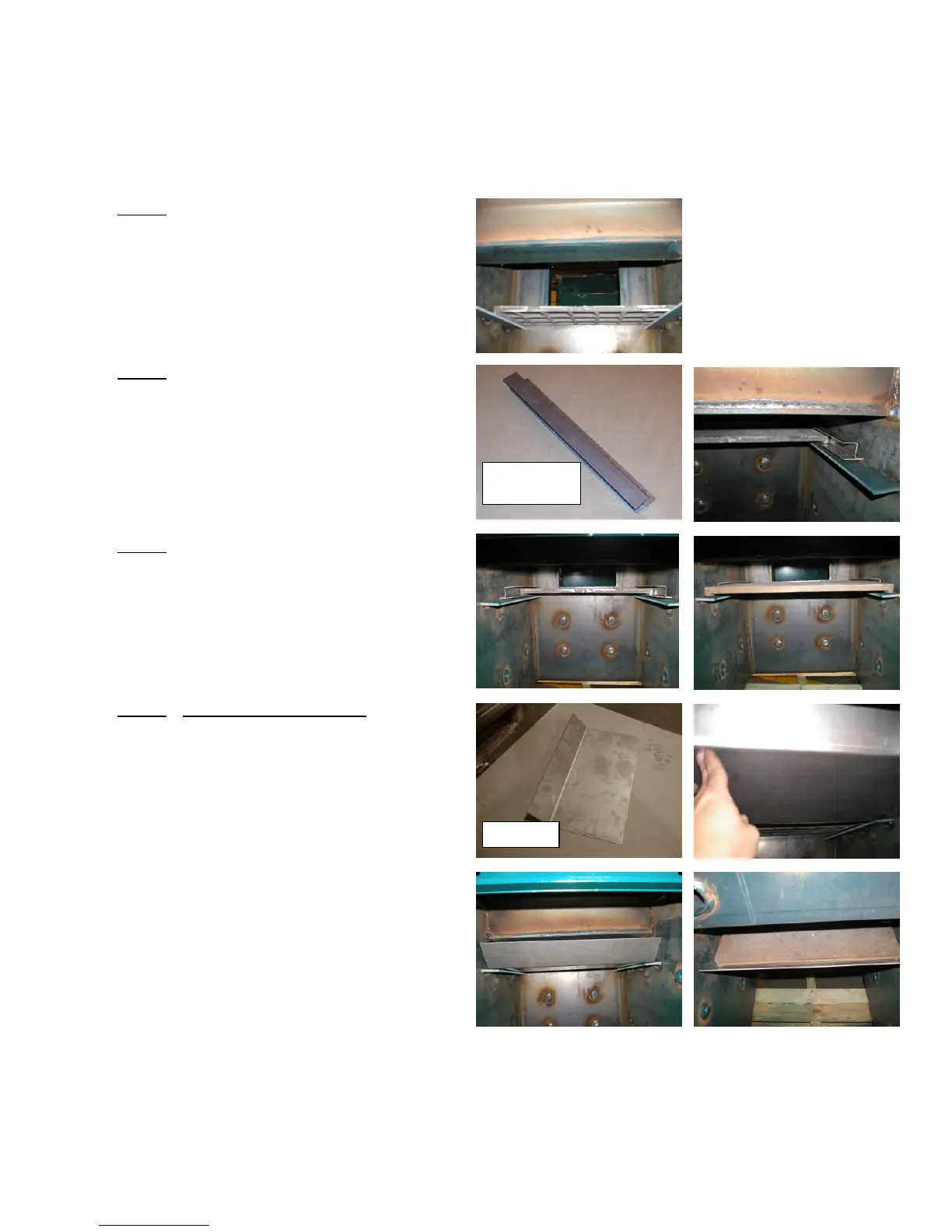

BAFFLE RETAINER AND BAFFLE INSTALLATION
STEP 1: Position first cast baffle in boiler on supports
as shown
STEP 2: Put baffle retainers in place by sliding one
along each edge of the baffle
STEP 3: Once one baffle and baffle supports are in
place slide second cast baffle into place
STEP 4: Inserting stainless steel baffle. Slide baffle
through the firedoor and position so that the short
brake on the steel is closest to the front and pointing
up. Raise the front of the baffle high enough that the
edge can be slid under the cast baffle. Once the
stainless steel baffle is under the edge of the cast
baffle, continue to push the stainless steel baffle until
the bend comes up tight against the front of the cast
baffle. Note the baffles and retainers may have to be
lifted slightly to slide the stainless steel baffle under it
