3. PRODUCT OVERVIEW

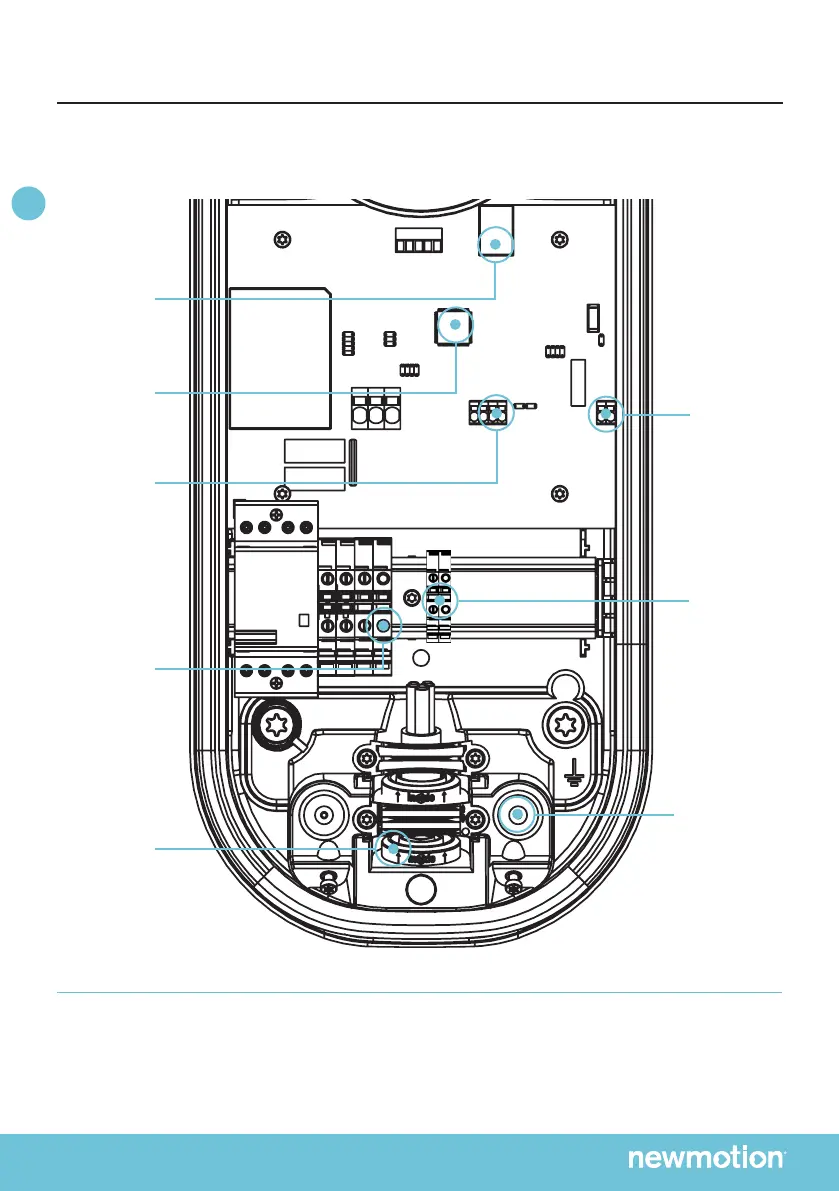

3.4.2 OVERVIEW INSTALLING ACCESSORIES
Load Shedding
cable or CT
cable inlet
(CAT5/6)
5 wires Ø 2,5mm
accessories cable
inlet
Shunt
connection
(L1 & N from
accessories
cable)
ON/OFF Peak
connection
(L2 & L3 from
accessories cable)
Wthernet port
for local
conguration
RJ12 - P1 port
for
Load Shedding
module
(11 kW model)
CT connection for
Load Shedding
(7,4 kW models)
Earthing
accessories
cable
