8 Motor Operation
This product does not include batteries; please choose a battery with
12V (24V for 86LBS motor) output to t this motor. The recommended
type of battery is a deep cycle battery or marine battery, as they will last
much longer and are specically designed for this application.

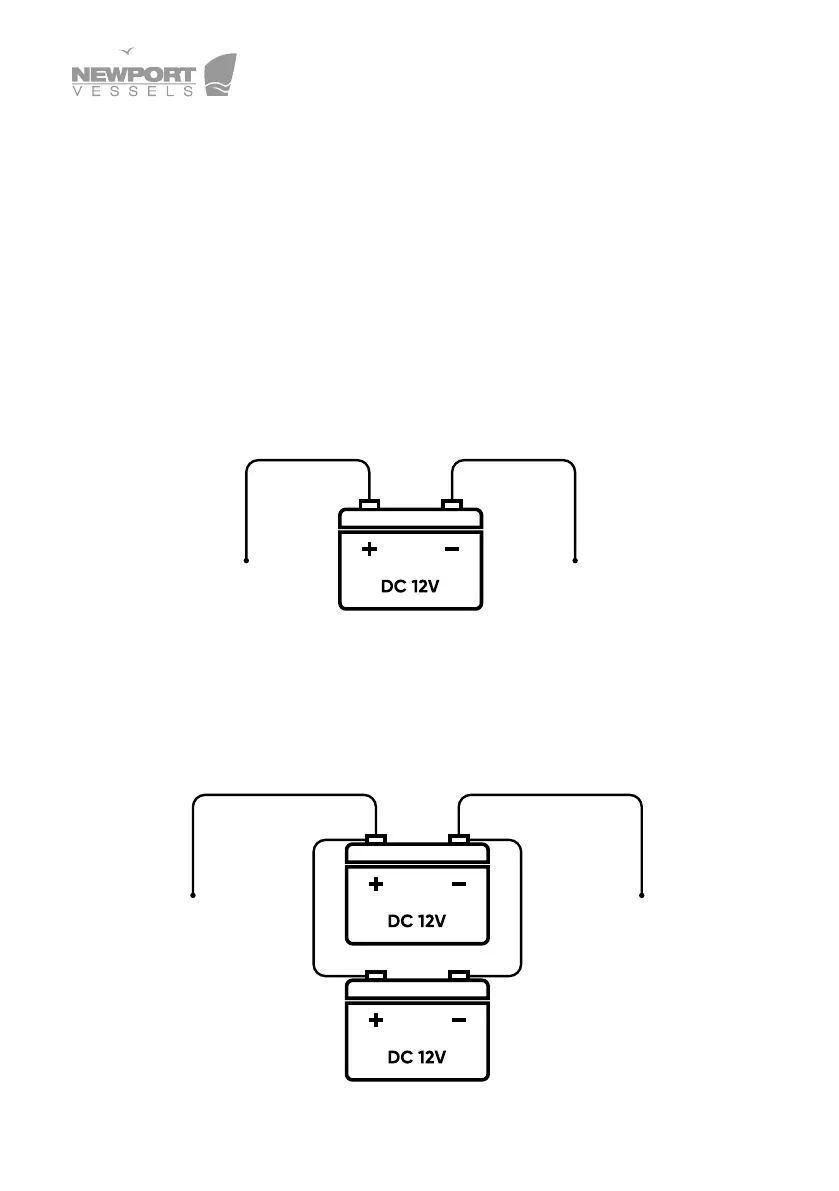

8.1 Battery Connection Method (12 Volt only)
8.1.1 Connection With One Battery (12V DC)
The red wire should connect to positive; the black wire should connect
to negative. (It is recommended to install circuit breaker on the positive
wire.)
8.1.2 Connection With Two Batteries in Parallel (12V DC)
The red wire should connect to positive; the black wire should connect
to negative. (It is recommended to install circuit breaker on the positive
wire.)
