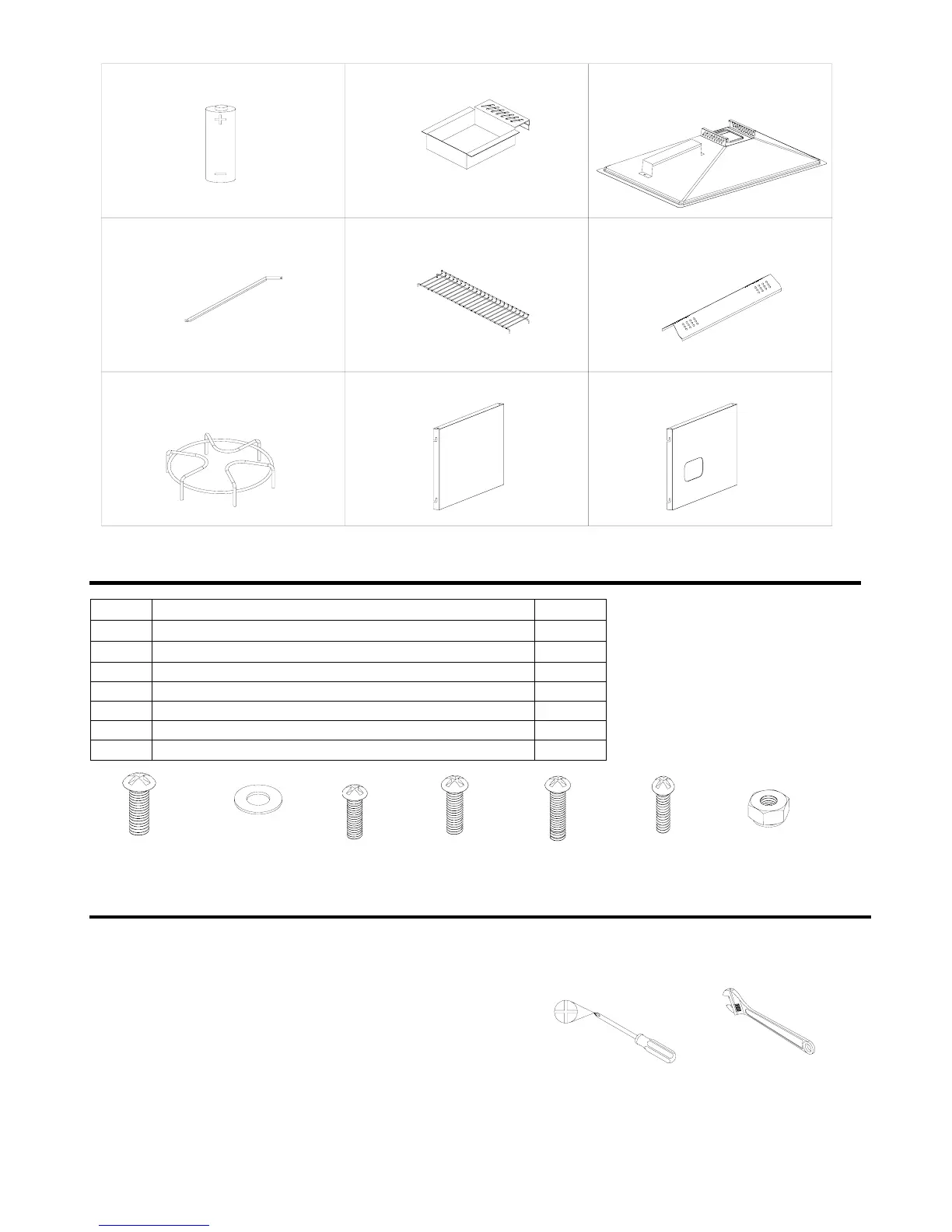

ZD. Side Panel, B -1pc ZC. Side Panel, A-3pcs ZB. Side Burner Cooking Grid-1pc.
Z. Warming Rack-1pc.
ZA. Flame Tamers-4pcs. Y. Diagonal Bar Barrier-1pc.
X. Grease Tray-1pc. V. 1.5 Volt “AA” Size Alkaline
Battery-1pc.
W. Grease Box-1pc.
HARDWARE CONTENTS
AA BB CC DD EE FF GG
REF# Description QTY
AA 1/4-in. x 15-mm Truss Head Screw with Washer
20pcs.
BB 1/4-in. Flat Washer
18pcs.
CC 5/32-in. x 10-mm Truss Head Screw 51pcs.
DD 5/32-in. x10-mm Truss Head Screw (white) 4pcs
EE 5/32-in. x 15-mm Truss Head Screw (black) 2pcs
FF 5/32-in. x 8-mm Truss Head Screw (white) 2pcs
GG 1/4-in. Nut 2pcs
PREPARATION
Before beginning assembly, make sure all parts are present. Compare parts with package contents list
and diagram above. If any part is missing or damaged, do not attempt to assemble the product. Contact
customer service for replacement parts.
• Estimated Assembly Time: 40 minutes
• Tools Required for Assembly:
Philli
s Screwdriver
Wrench
Phillips Screwdriver (not included) and Wrench (not included)
• Note: The right and left sides of the grill are designated as if you are facing the front of the grill.
