Page 18/63 GEO T RIGGING PROCEDURE

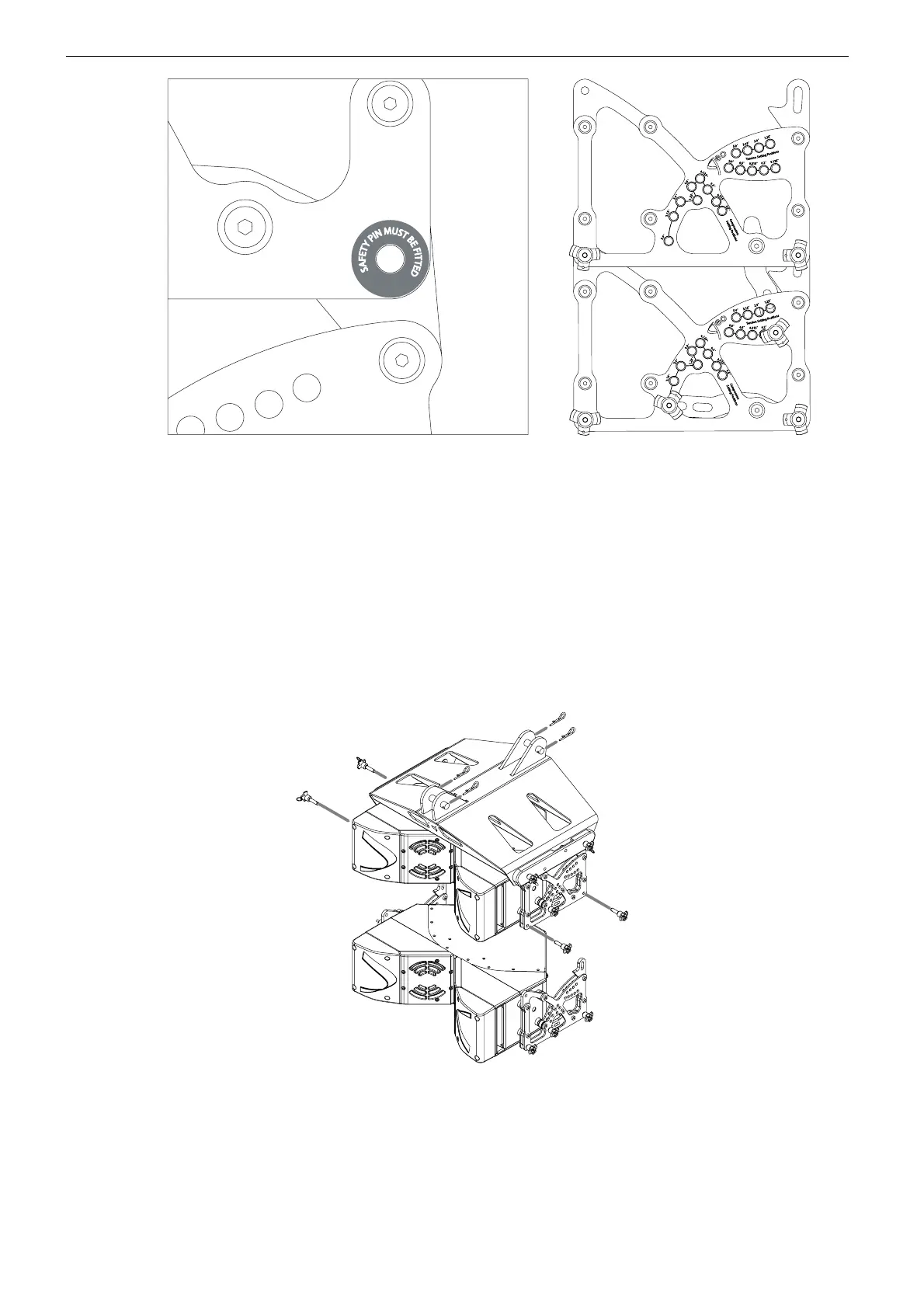

“SAFETY PIN MUST BE FITTED“ HOLE GEO T4805: RIGGING PLATES IN TENSION MODE
• Lift the bumper and the two first GEO T4805 to a height that allows convenient access to the
linking bars and angle setting holes.
• The top GEO T4805’s linking bars must be rotated downwards and into the lower GEO T4805’s
side rigging plate (see drawing).
• One operator must then lift the rear of the bottom GEO T while the angle settings push-pins are
inserted by the second operator on each side of the cabinet.
• Once the angle setting push-pins are inserted, lower the rear of the lower GEO T: the angle
between the two GEO T4805’s is now correct.
• Check that all push-pins are locked and that angle settings are identical on both sides.
FIRST GEO T4805 TO SECOND GEO T4805 ASSEMBLY
