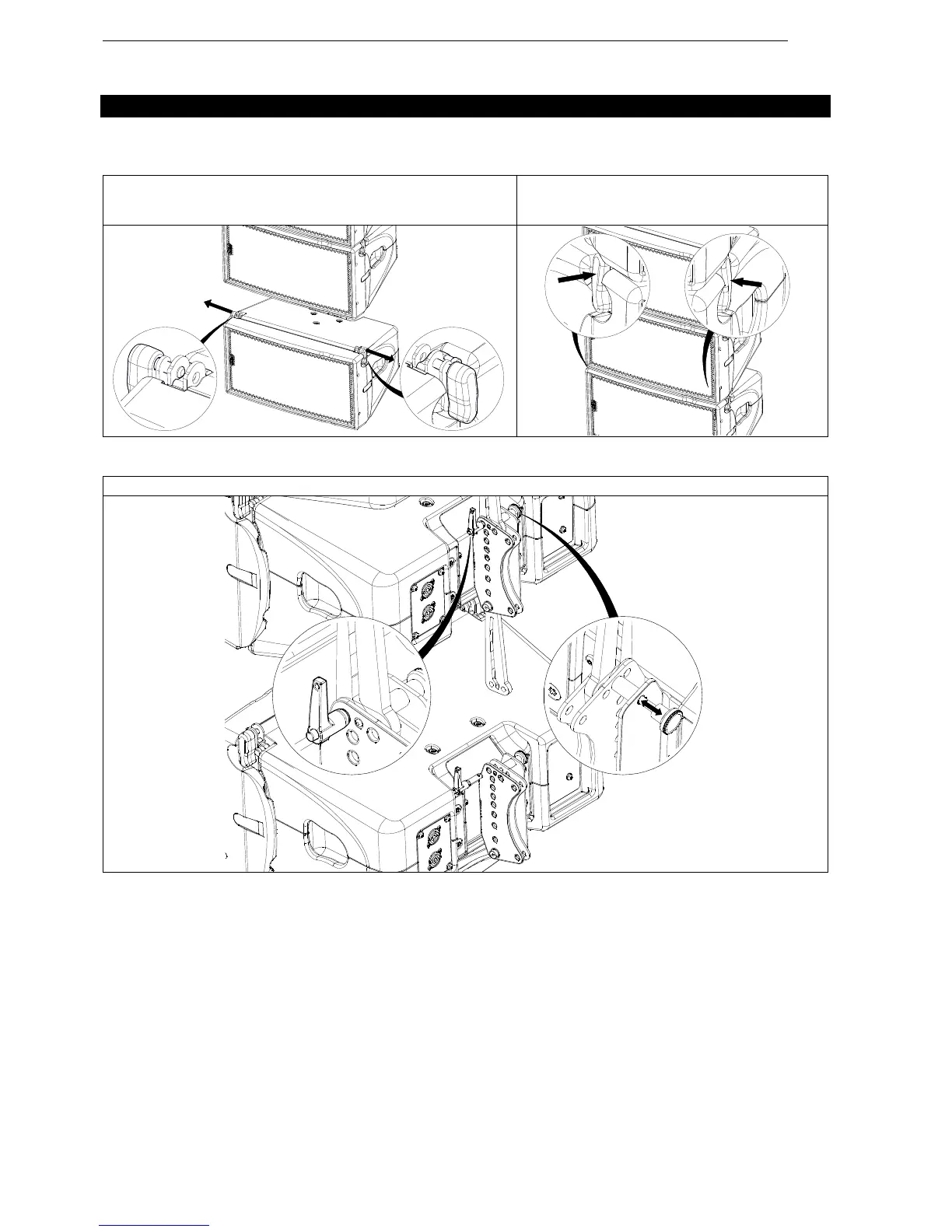

Assembly
Front
On both side, pull AutoRig
TM
in auto lock position.
Position GEOM10 on top, front points will lock
automatically.
Ensure that all AutoRig
TM
systems are locked.
Back
Unlock GEOM10 link bar. Pull on the latch to engage the guide in the slot. Adjust the angle with the quick release pin 0820AV.
