SETTING-UP ADVICE

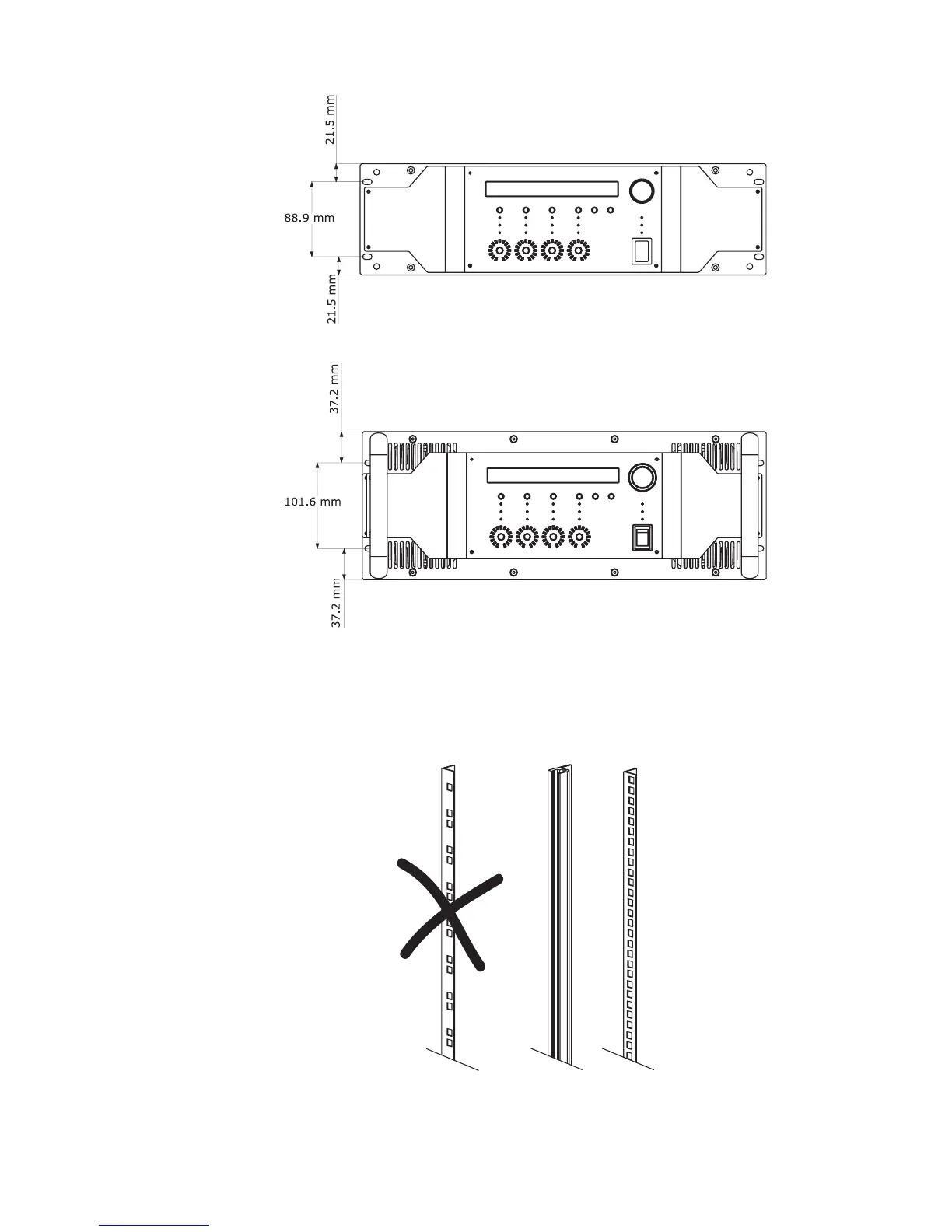

NXAMP4x1 rack holes position
NXAMP4x4 rack holes position
With NXAMP4x1, because of this layout, it is not possible to use some rack rails with 2
holes per rack unit (see picture bellow), because you will loose ½ U of rack space on the
top and bottom of the amplifier. Thus continuous rack rails or with 4 holes per rack unit
should be used.
