GENERAL DESCRIPTION

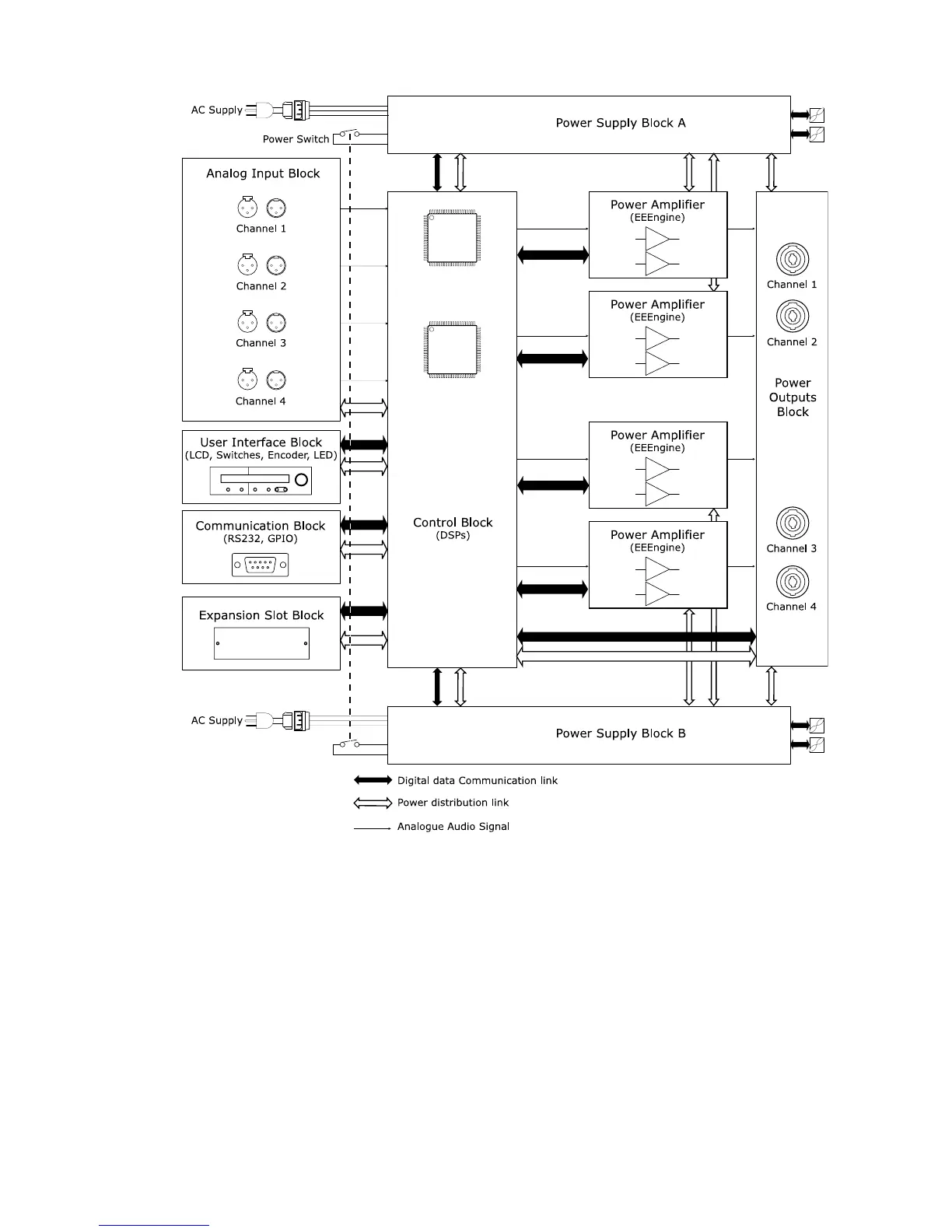

Power Supply Block
Power Supply is certainly the most important part of an amplifier. Most of the time, the
Power supply is limiting the power of an amplifier, more than the amplifying circuit itself.
• On NXAMP4x1, two large power supplies are used, one for channel (1 and 2) and
the other for channel (3 and 4).
• On NXAMP4x4, four large power supplies are used, one for each channel.
