Nexo PS 8 User Manual

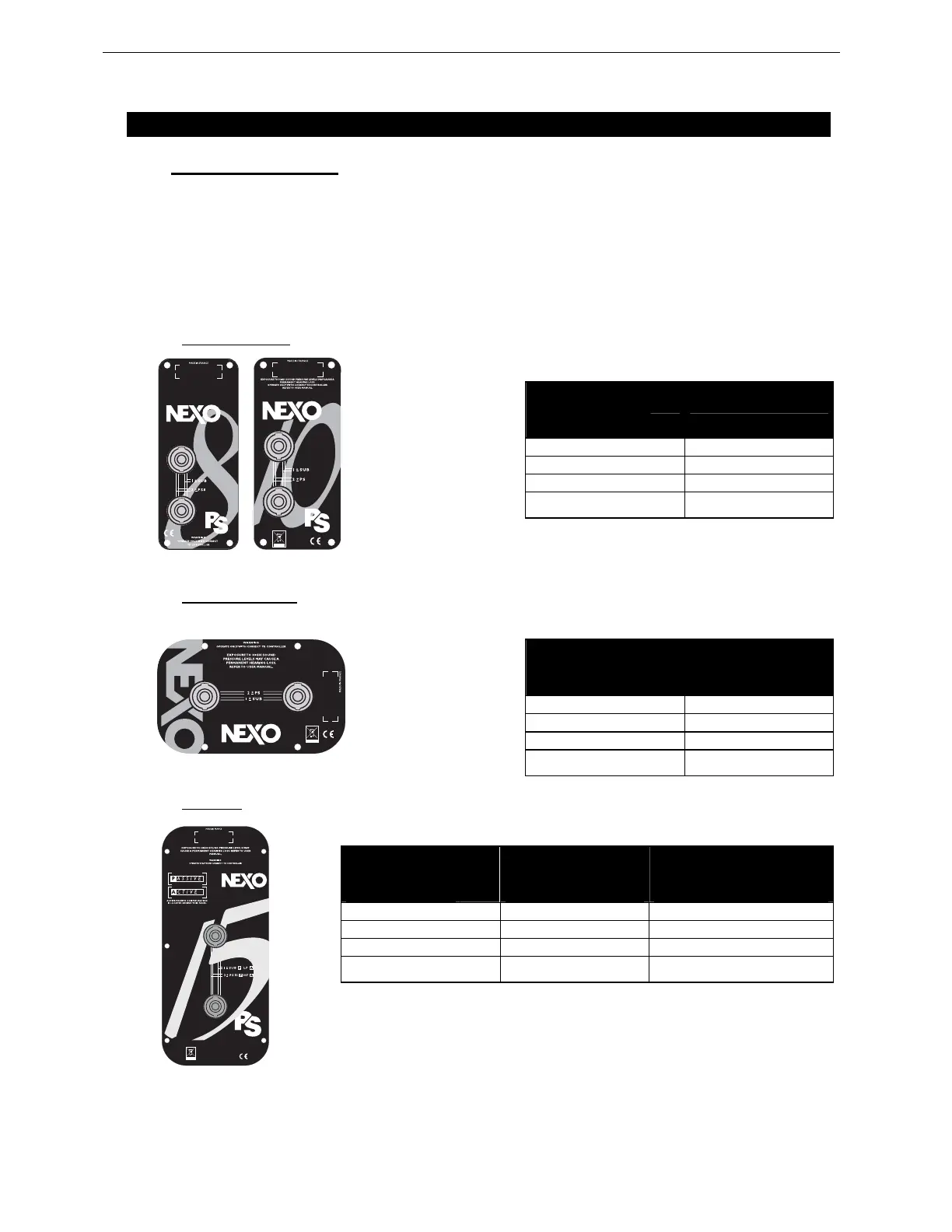

Page 10/82 PS GENERAL SET-UP INSTRUCTIONS
2 PS GENERAL SET-UP INSTRUCTIONS
2.1 Speaker connection
PS Series connected with Speakon NL4FC plugs (not supplied). A wiring diagram is printed on the
connection panel located on the back of each cabinet.The 4 pins of the 2 Speakon sockets identified in /
out are connected in parallel within the enclosure.
Either connector can be used to connect amplifier or to link to an additional PS range cabinet or to link
to an optional Sub (if present). Therefore, a single 4-conductor cable can connect two amplifier
channels to various PS and/or dedicated Sub Bass.
2.1.1 PS8 – PS10R2
Connectors are wired as follows:
2.1.2 LS400 – LS 600
Connectors are wired as follows:
2.1.3 PS15R2
Connectors are wired as follows:
Speakon
Connector
1(-)
Ö
Not Connected
1(+)
Ö
Not Connected
2(-)
Ö
PS8/PS10 (-)
2(+) PS8/PS10 (+)
Speakon
Connector
1(-)
Ö
LS400/LS600 (-)
1(+)
Ö
LS400/LS600 (+)
2(-)
Ö
Not Connected
2(+) Not Connected
Speakon
Connector
Passive
Mode
Active
Mode
1(-)
Ö
Not Connected PS15R2 LF (-)
1(+)
Ö
Not Connected PS15R2 LF (+)
2(-)
Ö
PS15R2 (-) PS15R2 HF (-)
2(+) PS15R2 (+) PS15R2 HF (+)
