Page 38/82 PS SERIES HARDWARE SETUP PROCEDURE
Horizontal
• Install the “U” bracket as described in preceding section
• Connect the “U” bracket to the connector plate by using the srews provided with the VNI-WS kit;
• Secure the screws;
• Suspend and secure the cabinet to the wall suspension;
• Adjust horizontal angle

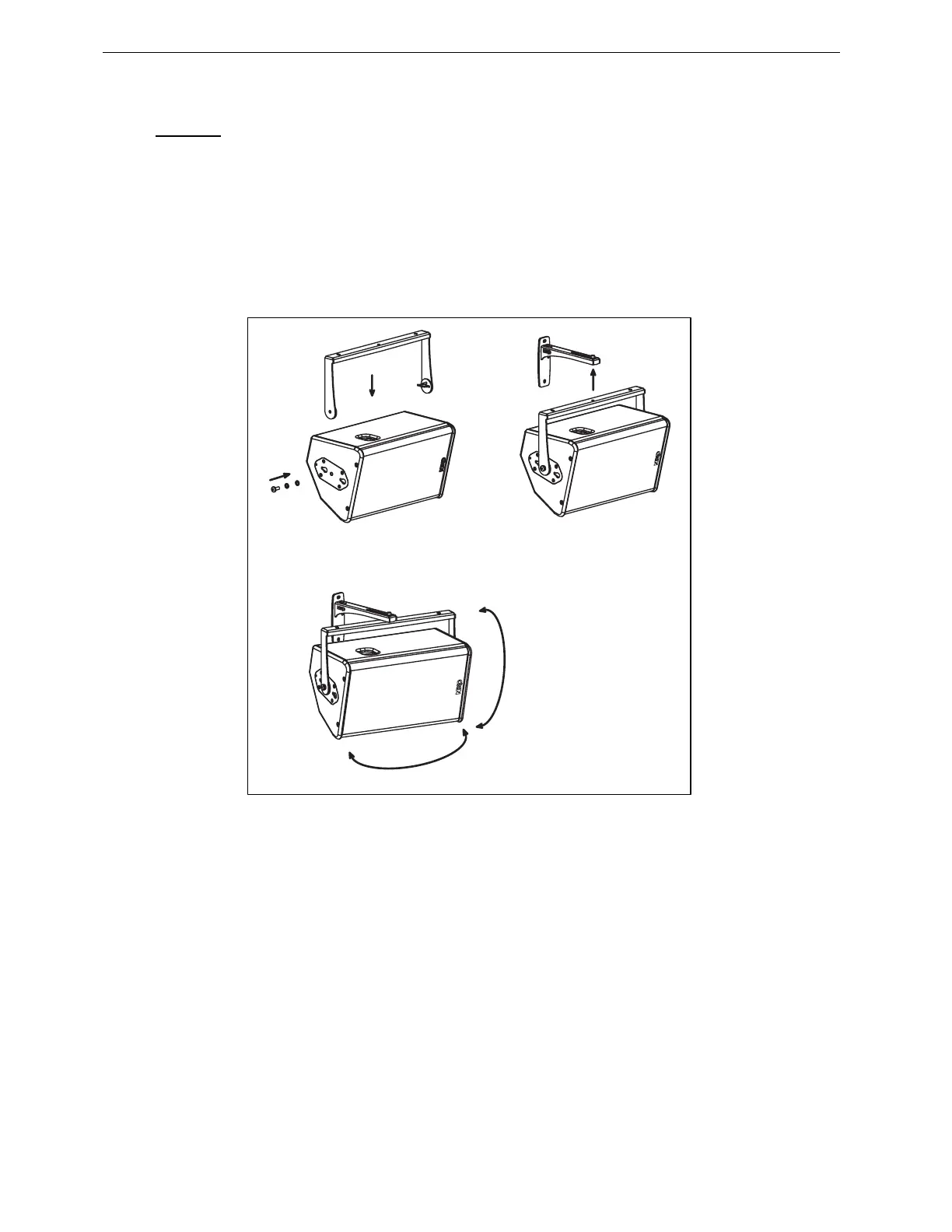

WALL SUSPENSION PROCEDURE FOR HORIZONTAL INSTALLATION
