PS8, PS8TD & LS400 : SPECIFICATIONS, CURVES & DIAGRAMS
___________________________________________________________________________________________________
P.32
30 100 1k 10k 20k
30
20
10
0
10
ON AXIS RESPONSE (dB)
30 100 1k 10k 20k
0.1%
1%
10%
TOTAL DISTORTION (%)
30 100 1k 10k 20k
4
8
16
32
64
IMPEDANCE (Ohms)
100 1k 10k 20k
20
10
0
10
OFF AXIS RESPONSE (dB)
100 1k 10k 20k
20
10
0
10
OFF AXIS RESPONSE (dB)
100 1k 10k 20k
20
10
0
10
OFF AXIS RESPONSE (dB)
100 1k 10k 20k
0
5
10
15
20
1
10
100
DIRECTIVITY INDEX (dB) & Q
100 1k 10k 20k
20˚
100˚
200˚
COVERAGE ANGLE (Degree)
0˚
30˚
60˚
90˚
120˚
150˚
180˚
210˚
240˚
270˚
300˚
330˚
0˚
30˚
60˚
90˚
120˚
150˚
180˚
210˚
240˚
270˚
300˚
330˚
0˚
30˚
60˚
90˚
120˚
150˚
180˚
210˚
240˚
270˚
300˚
330˚
0˚
30˚
60˚
90˚
120˚
150˚
180˚
210˚
240˚
270˚
300˚
330˚

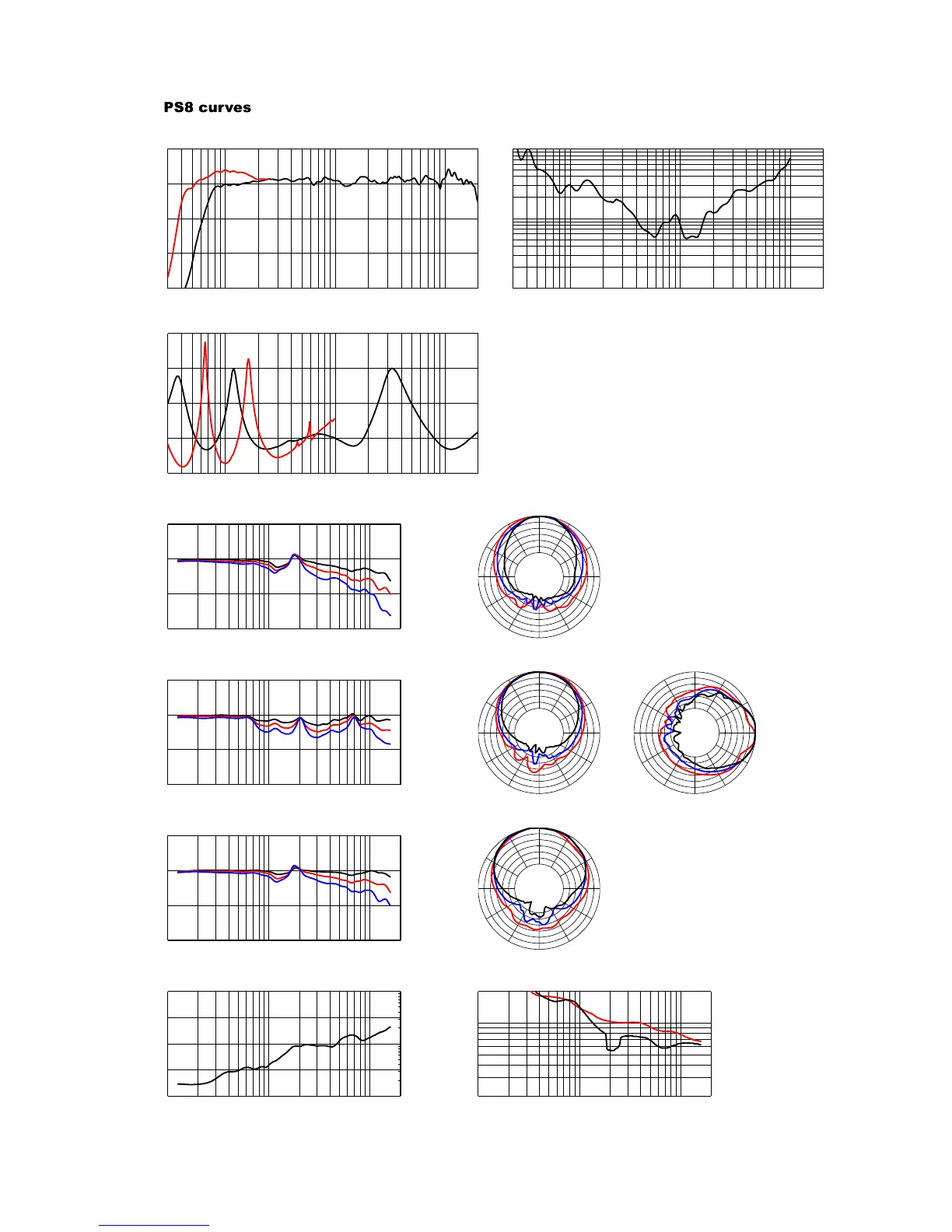

On Axis Responses PS8 & PS8 + LS400. PS8+LS400 : THD for 110dBSPL @ 1m.
Impedances PS8 & LS400.
Horizontal Plane, Vertical Orientation +25˚.
10˚(black), 20˚(Red), 30˚(Blue) off axis response.
Horizontal Plane, Vertical Orientation 0˚.
20˚(black), 30˚(Red), 40˚(Blue) off axis response.
Horizontal Plane, Vertical Orientation -25˚.
30˚(black), 40˚(Red), 50˚(Blue) off axis response.
Directivity Index and Factor. Horizontal (light) and Vertical (black) Coverage Angles, -6dB point.
All measurements made with PS8TDcontroller.
Response curves : Far Field, Halfspace below 200Hz, anechoic above 200Hz.
Off axis response and polar plot : 1/3 octave averaged anechoic measurements.
Vertical orientations refer to the cabinet in front of house configuration.
Directivity index and factor : computer treatment of polar plots.
Horizontal polar plot (left). 5dB/division.
Upper plot : vertical orientation +25˚.
Center plot : vertical orientation 0˚.
Lower plot : vertical orientation -25˚.
Above : vertical Polar plot. 5dB/division.
2 500 Hz Red
5 000 Hz Blue
10 000 Hz Black
