RAY SUB IMPLEMENTATION
Page 44 / 76 System Manual RS Series
7.2.2 RS15s pair
There are three ways of using pairs of RS15s in directional mode: “alternated”, “back to back” and “face to face” (50cm / 20”
between grids).
All of these configurations have symmetrical patterns with a smooth 15dB attenuation at the rear over the entire RS15
bandwidth, but significantly different horizontal coverage.
• "alternated" configuration has a constant -3dB coverage of 120° from 31.5Hz to 100Hz
• “back to back” configuration has a -3dB coverage which decreases from 120° at 31.5 Hz to 60° at 100Hz
• “face to face” configuration has a -3 dB coverage which increases from 120° at 31.5 Hz to 180° at 100 Hz

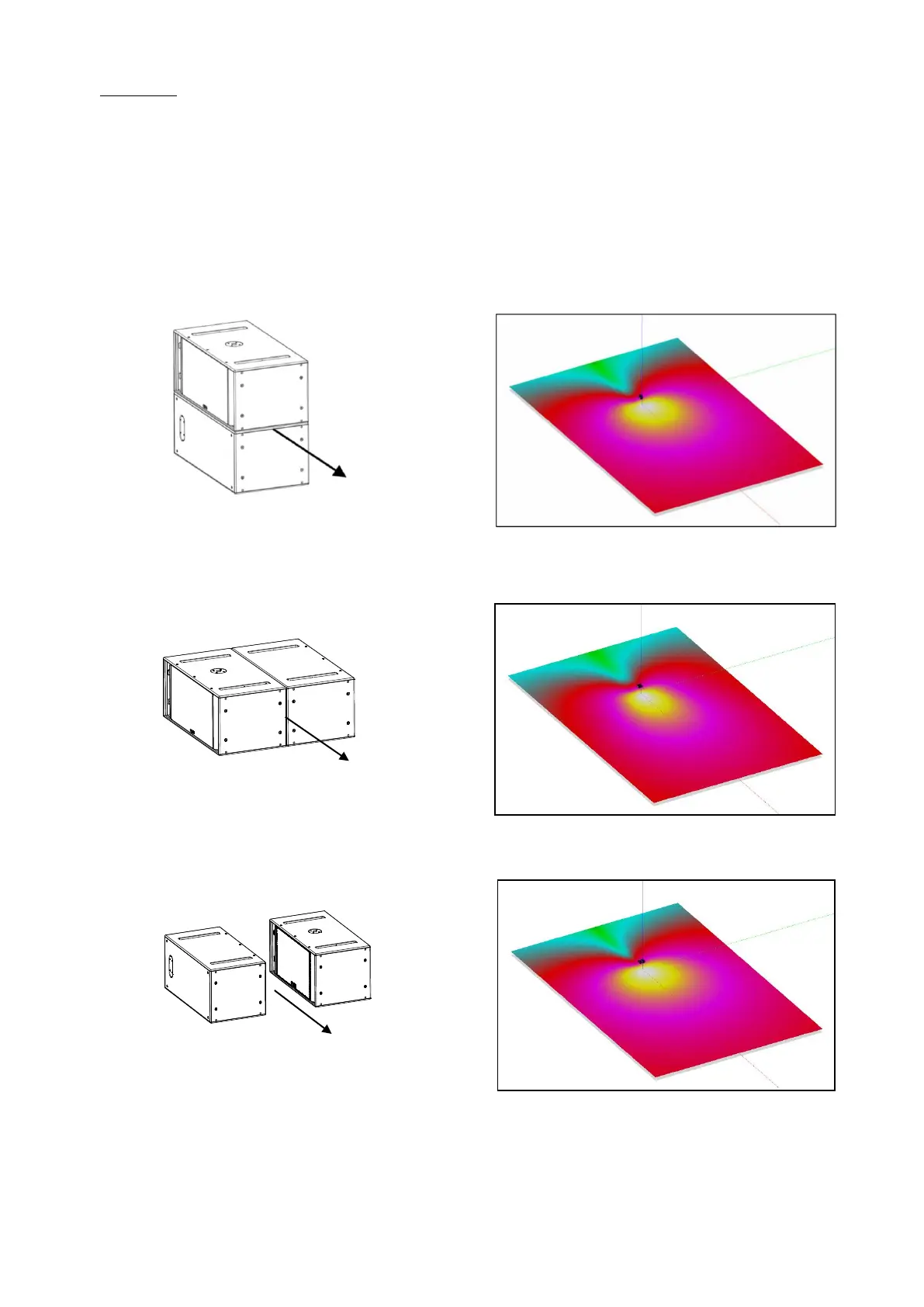

"ALTERNATED" CONFIGURATION
"ALTERNATED" CONFIGURATION AT 100HZ
“BACK TO BACK“ CONFIGURATION
“BACK TO BACK” CONFIGURATION AT 100 HZ
“FACE TO FACE“ CONFIGURATION
“FACE TO FACE” CONFIGURATION AT 100 HZ
