Next Hydraulics MAXISTAB - Hydraulic Scheme for Hydraulic Extendable Stabilizers C;W One Valve Bank Function and Two 5 Ways;4 Pos. Diverters

- Installation instructions for supplementary outriggers -
Via Mediterraneo, 6 - 42022 - Boretto - Reggio Emilia - Italy
Tel. +39 - 0522-96 30 08 - Fax +39 - 0522-96 30 39
info@maxiliftcrane.com
- 22 -

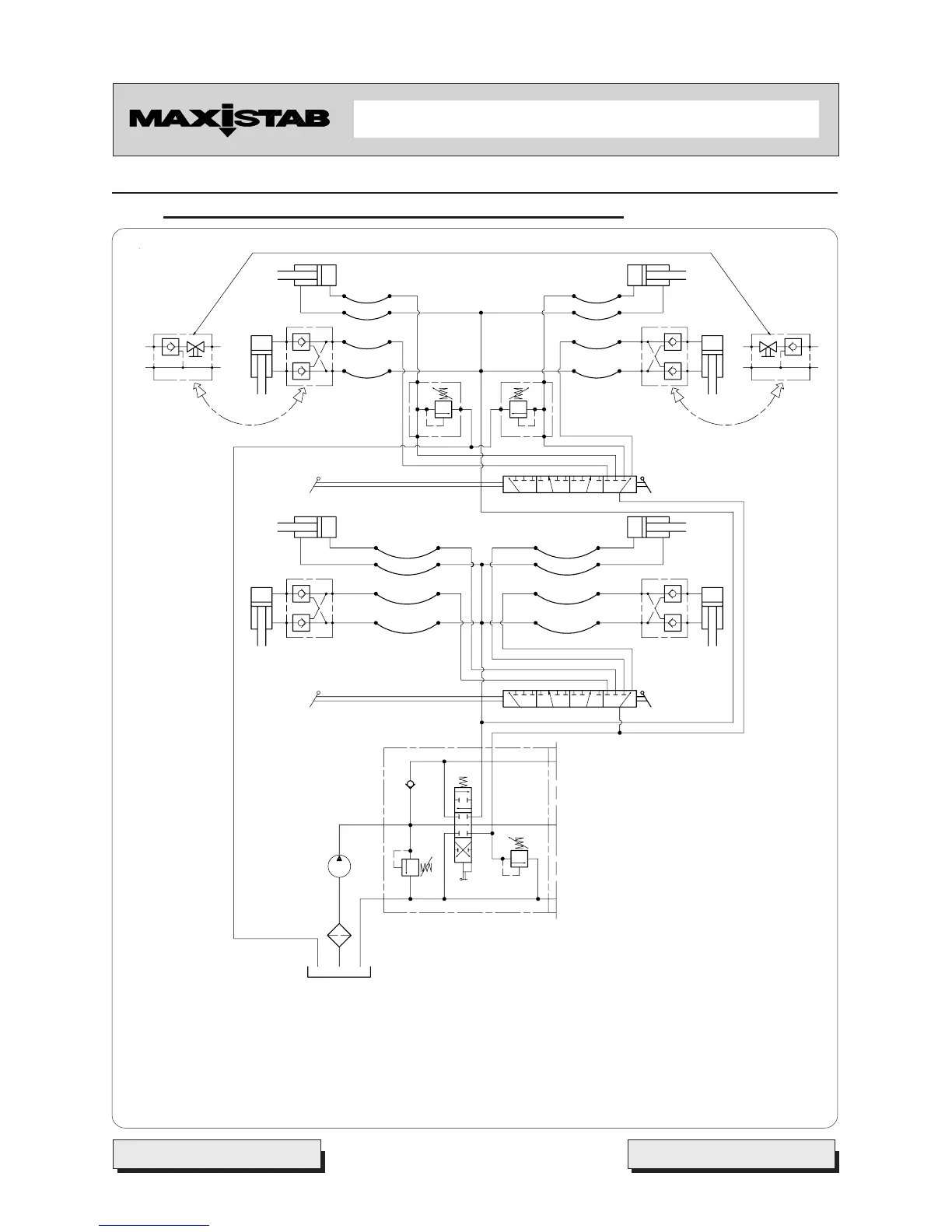

12.6 Hydraulic scheme for hydraulic extendable stabilizers c/w one valve
bank function and two 5 ways/4 pos. diverters
1) Control valve bank
2) Crane stabilizer diverter
3) Crane stabilizer cylinder
4) Lock valve
5) Crane stabilizer extension cylinder
Pict . 24
6) Additional stabilizer diverter
7) Additional stabilizer cylinder
8) Additional stabilizer extension cylinder
9) Relief valve (see Table 2)
Alternative: manually operated lock valve
8
7
4
2
8
6
1
4
7
5
3
4
5
4
3
Additional stabilizer
Main crane stabilizer
V max
150 bar
9
9
