Next Hydraulics MAXISTAB - Hydraulic Scheme for Manual Extendable Stabilizers C;W Two Independent 2 Functions Valve Banks

- Installation instructions for supplementary outriggers -
Via Mediterraneo, 6 - 42022 - Boretto - Reggio Emilia - Italy
Tel. +39 - 0522-96 30 08 - Fax +39 - 0522-96 30 39
info@maxiliftcrane.com
- 24 -

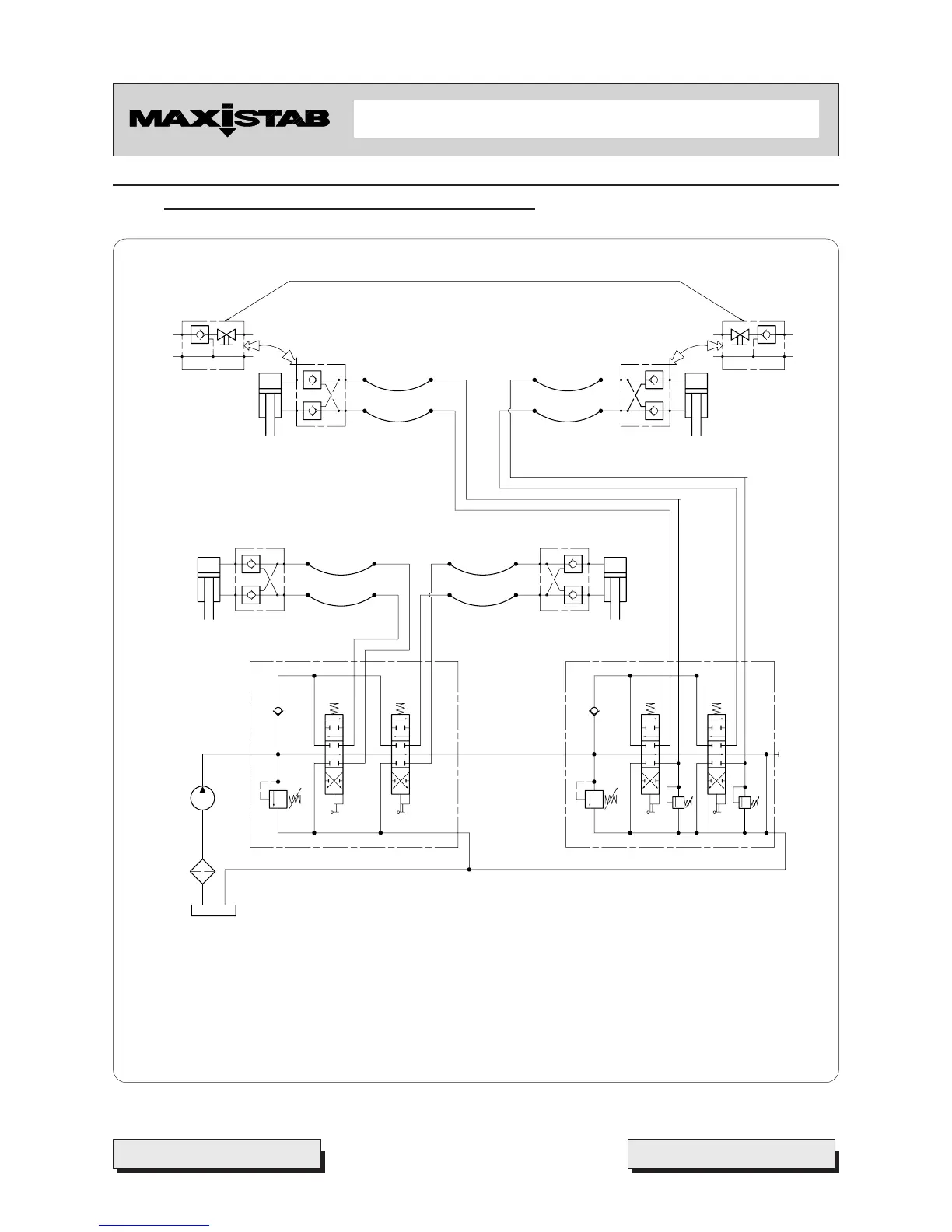

12.8 Hydraulic scheme for manual extendable stabilizers c/w two
independent 2 functions valve banks
1) Crane stabilizer cylinder
2) Lock valve
3) Crane stabilizer valve bank
4) Additional stabilizer valve bank
5) Additional stabilizer cylinder
Pict. 26
1
2
3
4
1
2
5
2
5
2
Alternative: manually operated lock valve
Additional stabilizer
Main crane stabilizer
150bar 150bar
V max
