- 4 -

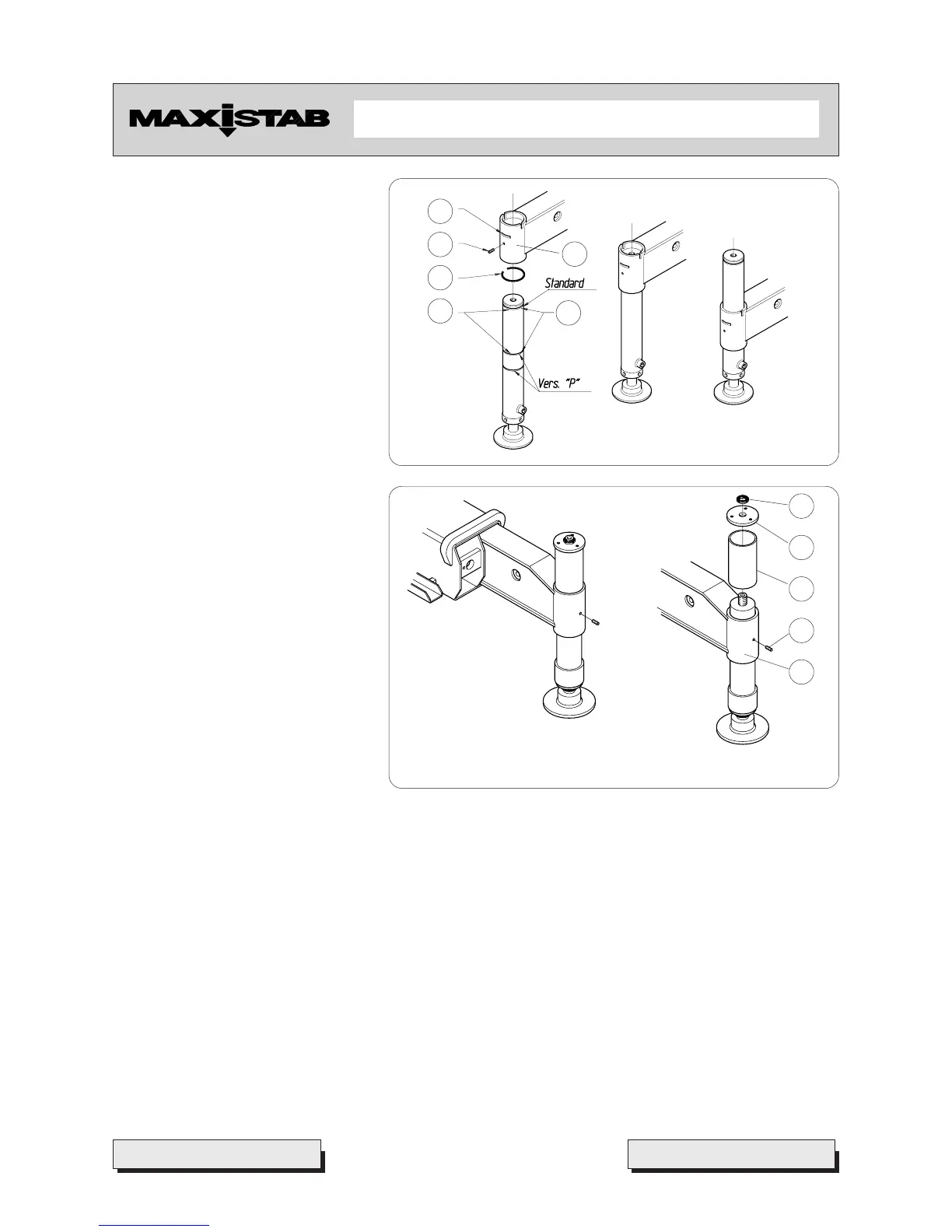

Fixing system by stop ring
(Series 4)
(see Pict. 4)
1) Stop ring (stop round bar)
2) Cylinder sleeve
3) Slit
4) Cylinder groove
5) Hooking hole
6) Security dowel
Fixing system by spacer
(Series 5, 6, 7, 8)
(see Pict. 5)
1) Spacer
2) Plate
3) Ring nut
4) Security dowel
5) Cylinder sleeve
Pict. 5
Pict. 4
NORMAL "P" VERSION
3
2
1
4
5
3
6
1
4
5
2
