LA12 & LA12C User’s Guide
21

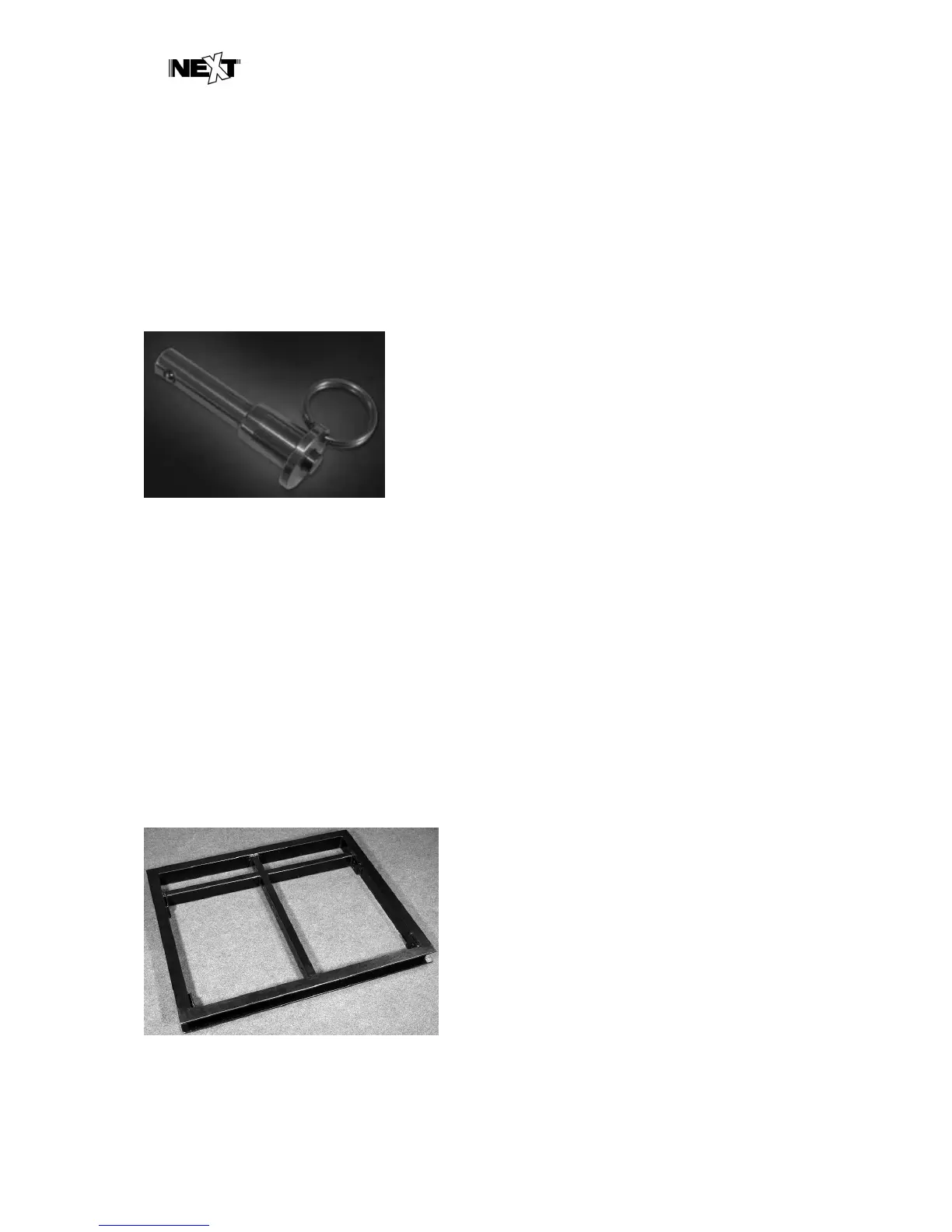

Quick-release pins.
3.7 QUICK – RELEASE PINS
The quick-release pin dimensions perfectly fit the holes
designed for the array creation and guarantee a safe
fastening. Its end is provided with two catch balls that
allow it to be fitted into the hole and with a block/unblock
button to activate the catch balls. The pin can be
introduced by pressing the block button. An internal
mechanism disables the catch balls and the pin can be fitted into the relevant hole. Press the
block/unblock button again to pull the pin out from the hole. When sliding the pin out, make
sure there are no reciprocal forces between the two connected elements and that the system is
stable even after extraction. Always check the fastening pin integrity to avoid any damage
resulting from further use of a damaged quick-release pin.
3.8 FLYING BAR
The LA12 (LA12C) has been designed to bear
heavy loads and is equipped with two front and
two rear end attachment points. There is a central
reinforcement bar which is also used for lifting
purposes, with six attachment points. The two
attachment points at the front and rear of the bar
are used to fix the first loudspeaker enclosure’s
rear and front swing arms.
