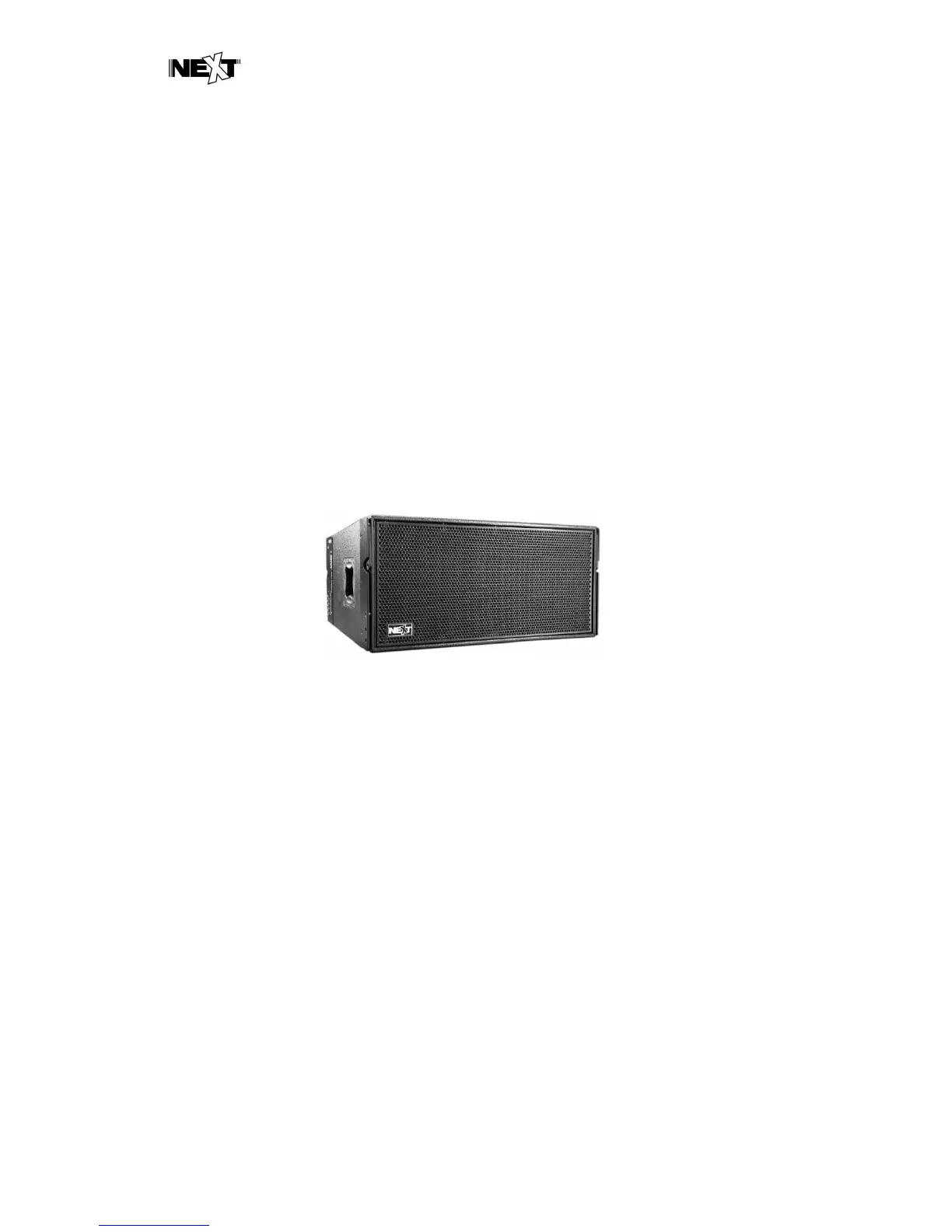

LA12 & LA12C User’s Guide
6
Wide bandwidth (60Hz - 19kHz );
Wide and uniform horizontal dispersion (-6dB @ 90º);
Fast, simple Integrated Rigging hardware;
Rugged premium void free plywood outer shell;
Stand alone operation in most situations;
Integrated flying hardware.
1.2 SYSTEM ENCLOSURE
The system enclosure integrates the unique acoustical elements into a highly portable
and rugged physical system. To make field handling easier and to enable you to create very
large arrays, the individual box weight has been minimized without sacrificing strength,
safety, or audio quality. Each box of the LA12 (LA12C) line array weights just 54kg (46kg)
while containing one 700-watt low frequency driver, two 280-watt mid frequency drivers, and
three 60-watt, 1 diaphragm high frequency compression drivers. This weight includes the
attached rigging hardware.
1.3 BASS, MID AND HIGH SECTIONS
The Bass section
