Next Pandora - Installation; Rear Panel Connections; Connecting to TV via SCART

To Next Page

To Previous Page

The picture is only for reference, please make the object as the standard.

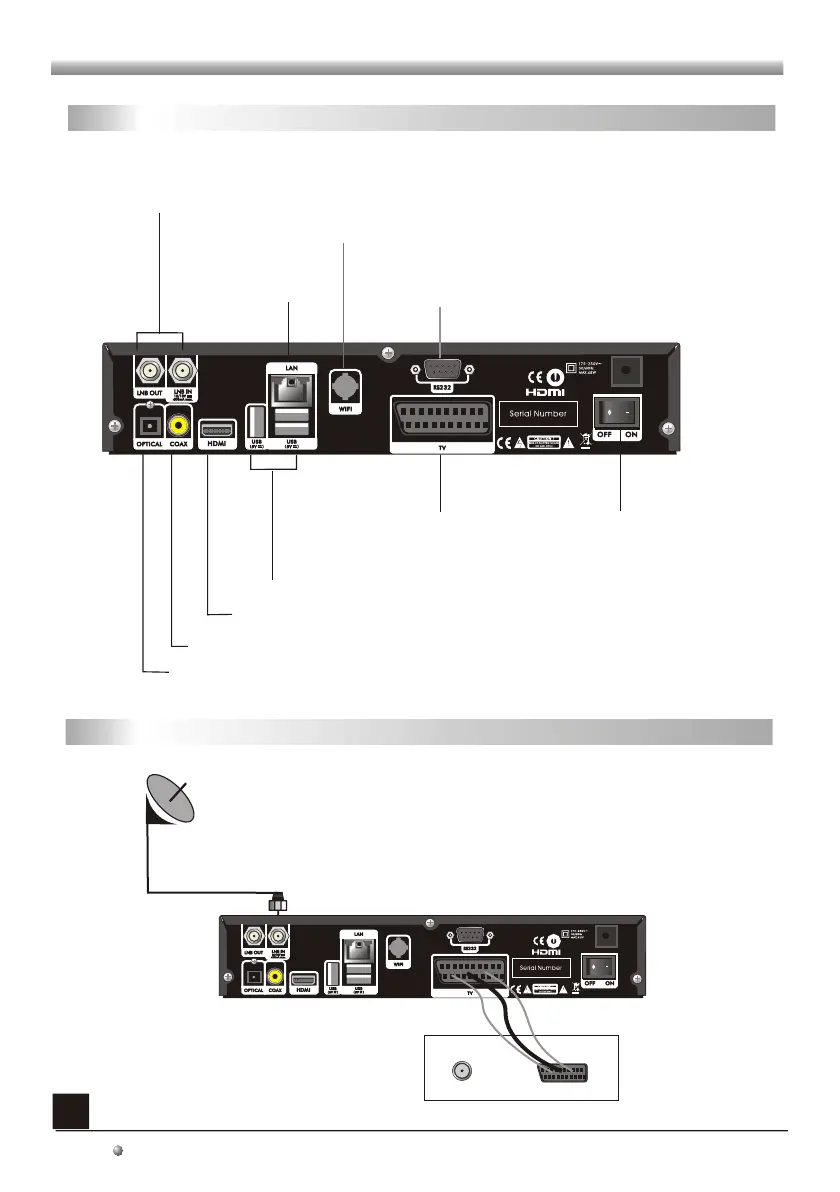

Rear Panel

POWER ON/OFF

CONNECT TO USB DEVICE

LNB IN: CONNECT TO SATELLITE ANTENNA

LNB OUT: CONNECT TO THE OTHER RECEIVER

CONNECT TO TV SET HDMI INPUT

CONNECT TO A PC

FOR S/W UPGRADE

WIFI EQUIPMENT

CONNECT TO

INTERNET

DIGITAL AUDIO OUTPUT, CONNECTS VIA OPTICAL CABLE TO AN AUDIO DECODER

Connecting to TV using SCART support

CONNECT TO TV

USING A SCART CABLE

Satellite

Dish

SCART

INSTALLATION

DIGITAL AUDIO OUTPUT, CONNECTS VIA COAX CABLE TO AN AUDIO DECODER
