Using the DFS
Fitting Accessories
Couple DFS fitting directly to the load cell stem. The threads
are M6 and have capacities up to 1000 N.
Ensure that anything coupled to the gauge is screwed finger-tight only.
Excessive torque can damage the load cell and is not covered by
warranty.
Mounting to a Fixture or Test Stand
To secure the DFS to a suitable mounting plate, use the two M5
threaded holes. The distance between the holes is 2.5 inches.
Alternatively, four 3mm thread holes on the rear of the gauge can be
used to mount the gauge also.
An appropriate mounting plate must be used to ensure that the
fixture does not directly contact the force gauge case. An optional
versatile mounting plate is available to couple the force gauge to many
brands of test stands.

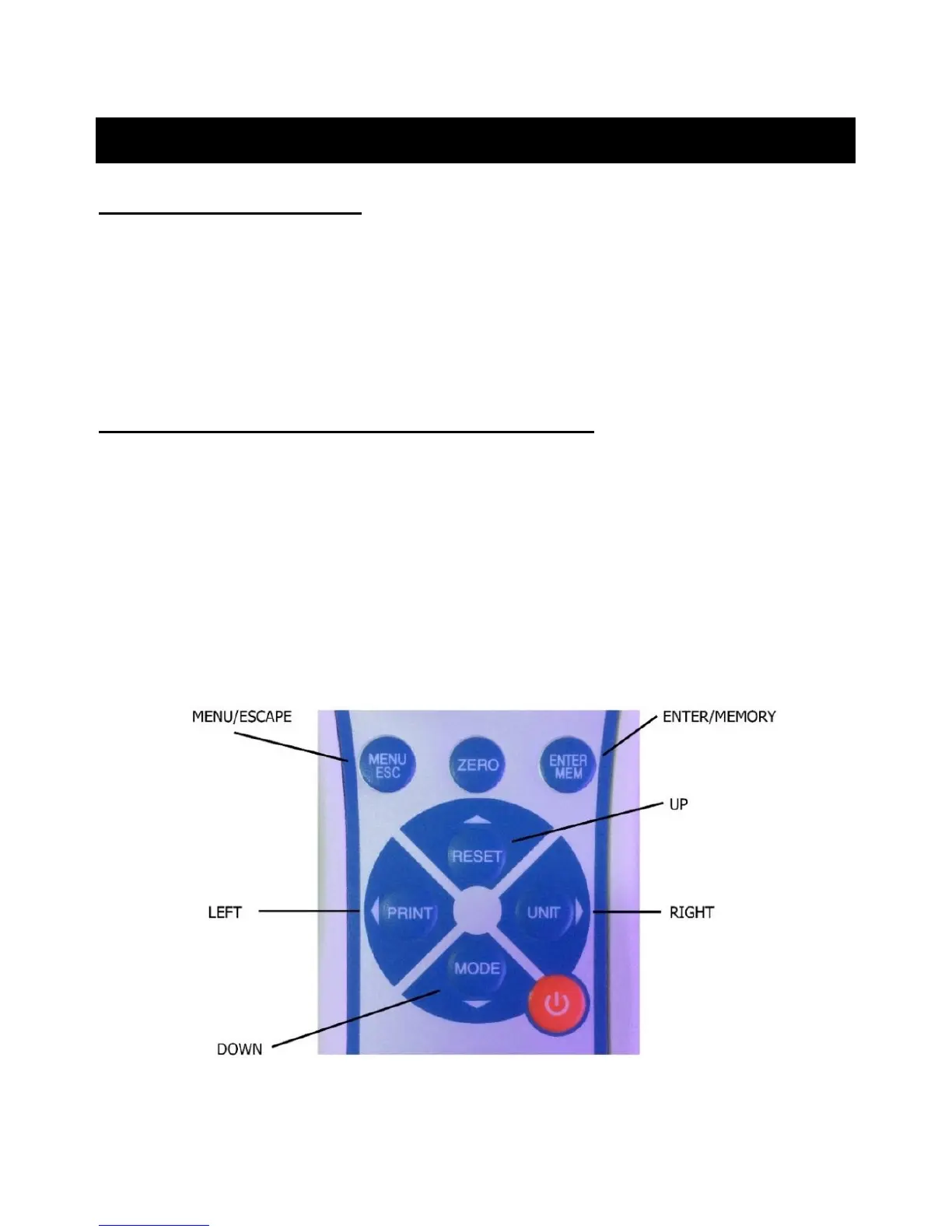

Figure 1 DFS control panel
