15
Attaching the TV
For these steps you will need the following parts:
• (2) Vertical Mounting Bars
• Large Assorted Hardware Pack
• Screen Locks
Step 20: Attach the Vertical Mounting Bars to the back of the TV using the provided Large Assorted TV
Hardware.

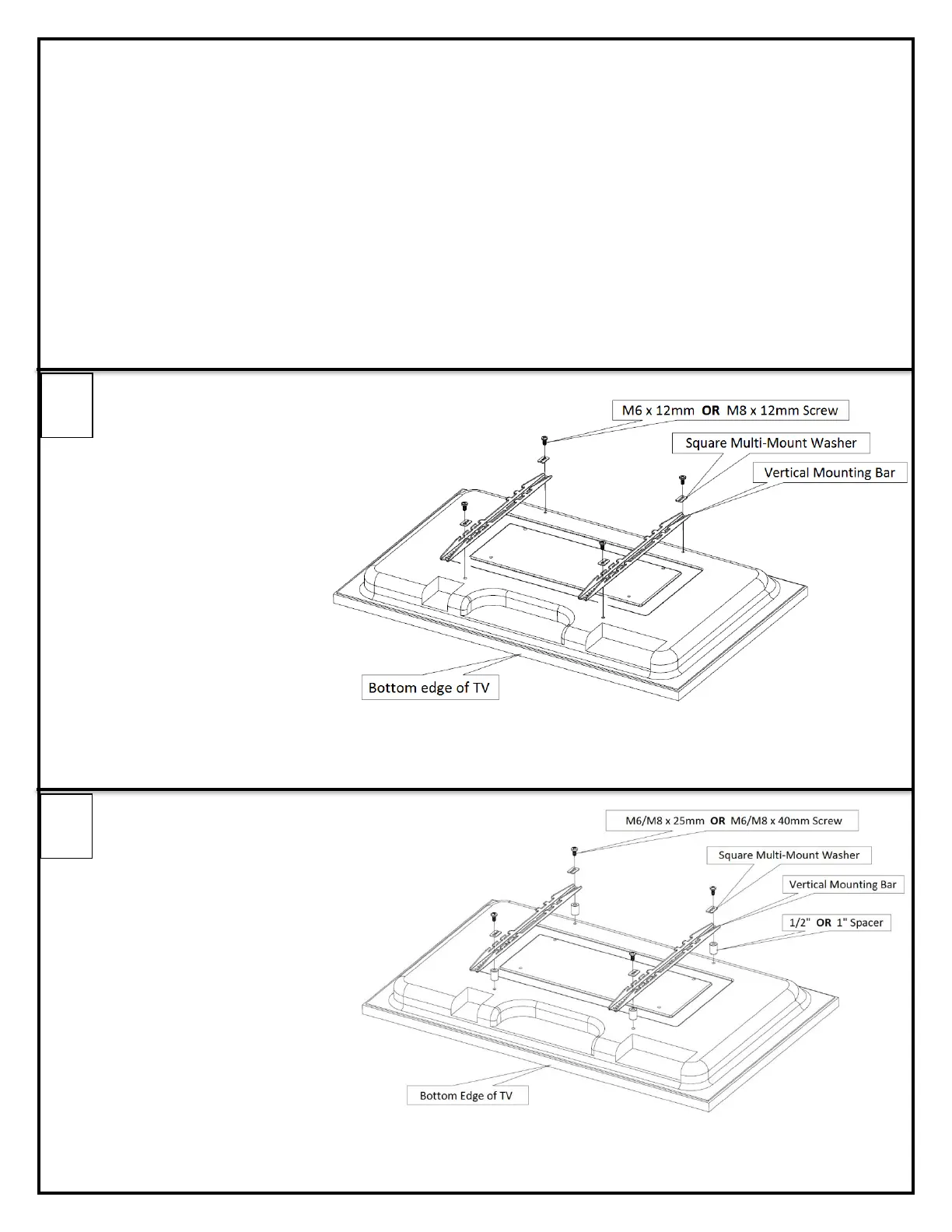

Note: Use the diagrams below for more information.
Diagram “A” installation procedure:
1) Place the flat screen TV face down on a
protected surface.
2) Position the Vertical Mounting Bars
equidistant from the bottom and top of
the TV, with the slots facing toward
the top of the TV.
3) Using the four (4) Square Multi-Mount
washers and the TV mounting screws selected
from the bag, attach and tighten the hardware.
DO NOT OVERTIGTHEN HARDWARE. DAMAGE TO TV MAY RESULT.
Diagram “B” installation procedure:
1) Place the flat screen TV face down on a protected surface.
2) Position the Vertical Mounting Bars equidistant from
the bottom and top of the TV, with the slots facing
toward the top of the TV.
3) Using the four (4) spacers needed,
(4) Square Multi-Mount washers and the
TV mounting screws selected from the bag,
attach and tighten the hardware.
The hardware will be used in this order
(as shown in the diagram above):
TV, Spacers, Vertical Mounting Bars, Square Multi-Mount Washers, TV Mounting Screws.
DO NOT OVERTIGTHEN HARDWARE. DAMAGE TO TV MAY RESULT.
