Installing the Lift System
For these steps you will need the following parts:
• (2) Column Clamp Extension
• (2) Column Clamp Base
• (20) #10 x ¾” THWS

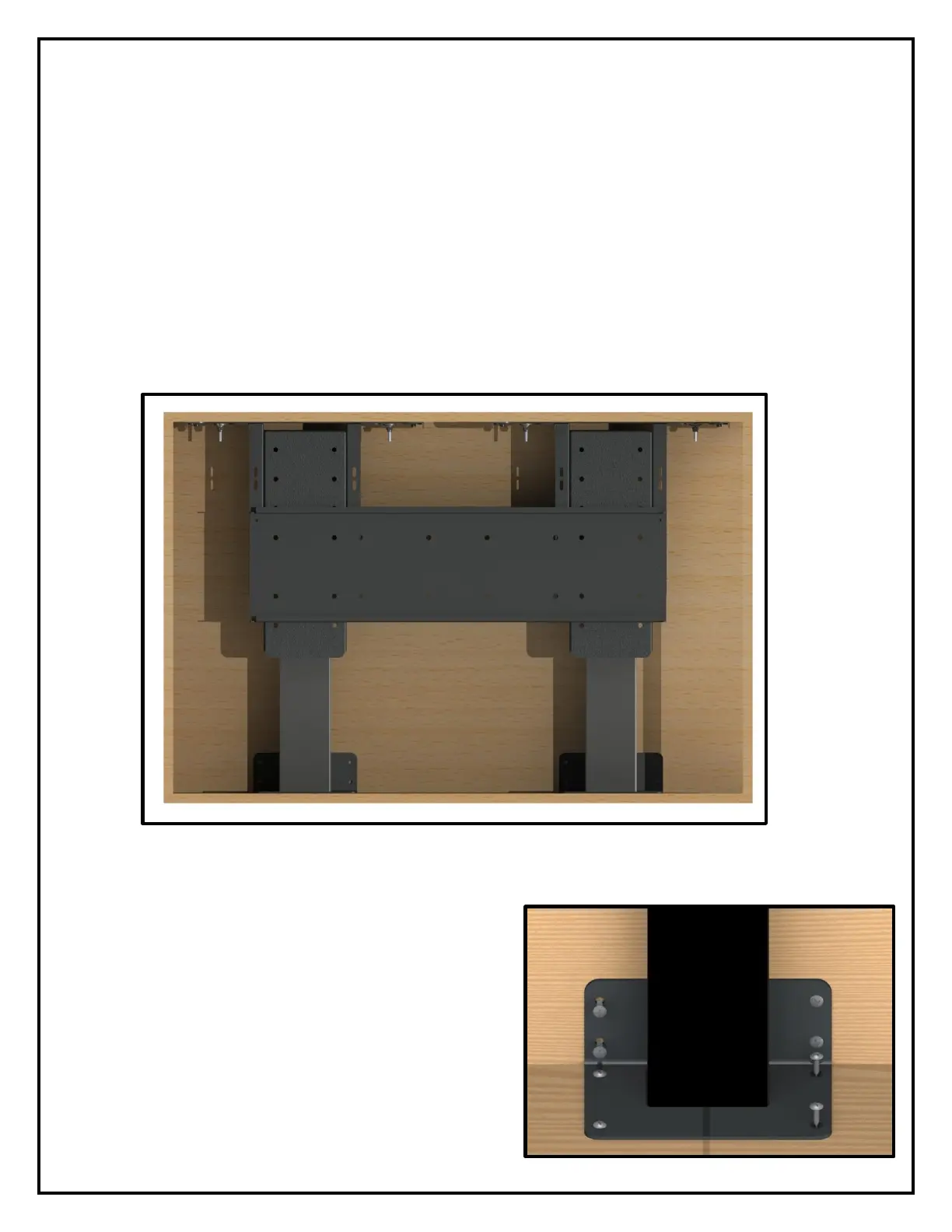

Step 14: Place the Lift System inside your cabinet and center it within the enclosure.
Step 15: Fasten each Base Mount to both the bottom and
rear panel of the enclosure using (16) #10 x ¾” THWS.
