Assembling the TV Mounting System
For these steps you will need the following parts:
• (2) Screen Support
• (4) Top Support Brackets
• (2) Top Plate
• Screen Back Plate
• (8) 3/8”-16 x ¾” BHMS
• (16) 6 x 12mm BHMS
• (8) 6 x 16mm BHMS
• (8) 6 x 12mm FHMS

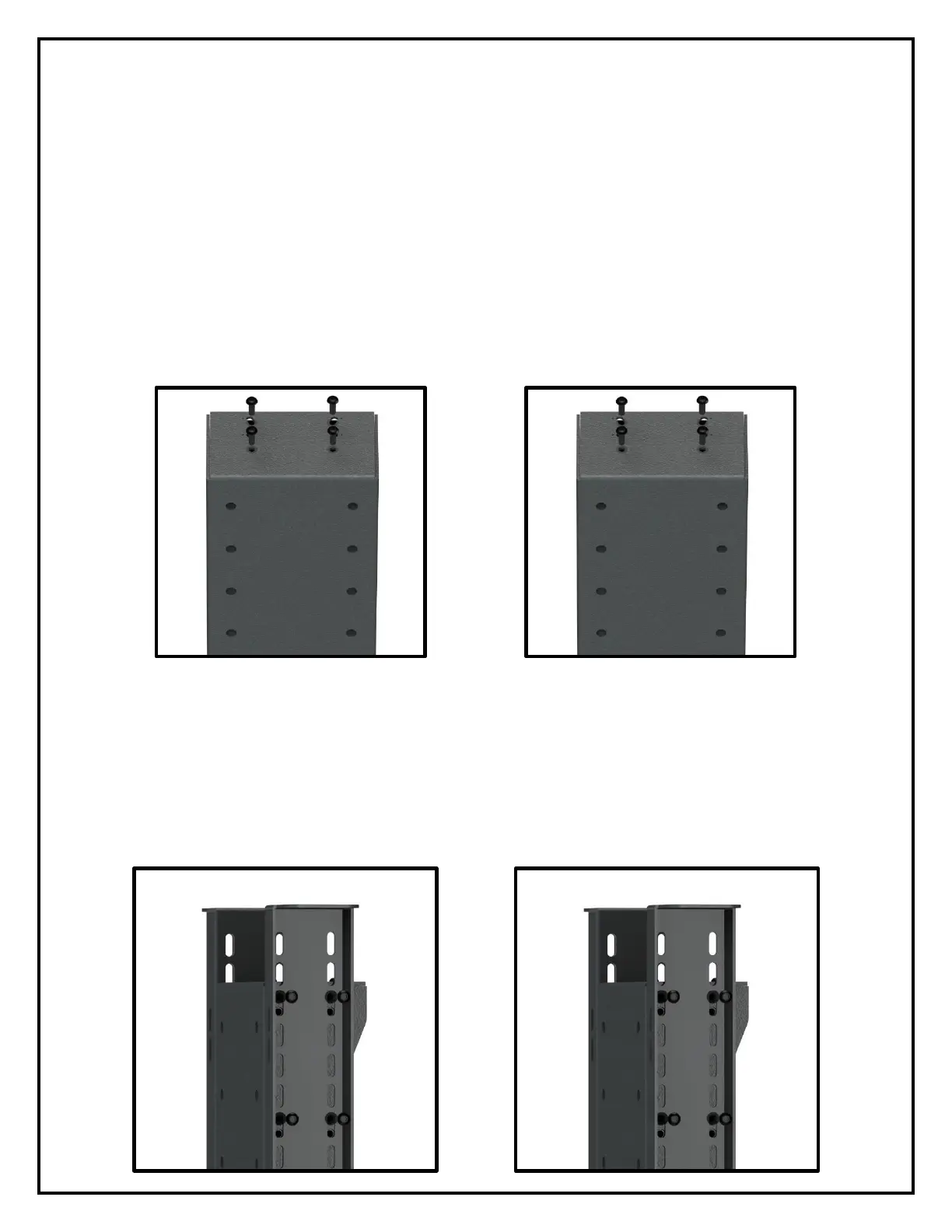

Step 9: Attach (1) Screen Support to the top of each Lift Column using (8) 6 x 16mm BHMS
Step 10: Measure the Interior Height of the Cabinet and subtract 28.125” from it. This will be the distance
you will need to attach the Top Support Brackets above the Screen Support.
Step 11: Attach (2) Top Support Brackets to the sides of each Screen Support using (16) 6 x 12mm BHMS.
