Assembling the Actuation System
For these steps you will need the following parts:
• (2) Lift Columns
• (2) Base Mount
• (8) 6 x16 FHMS

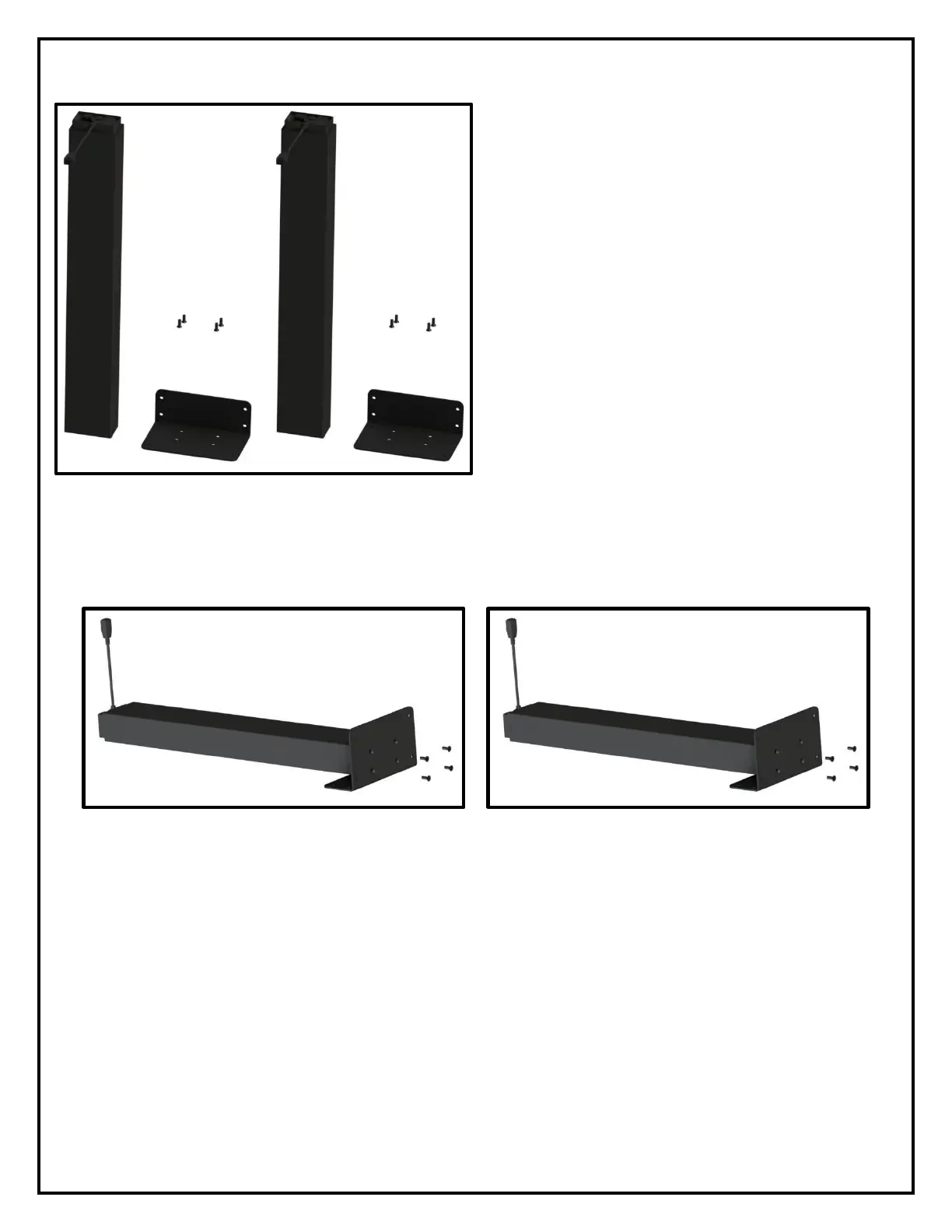

Step 1: Attach (2) Lift Columns to (2) Base Mounts using the (8) 6 x 16 FHMS. Ensure the pigtail for each
Lift Column is facing towards the front of the enclosure. Use the photos below for reference.
